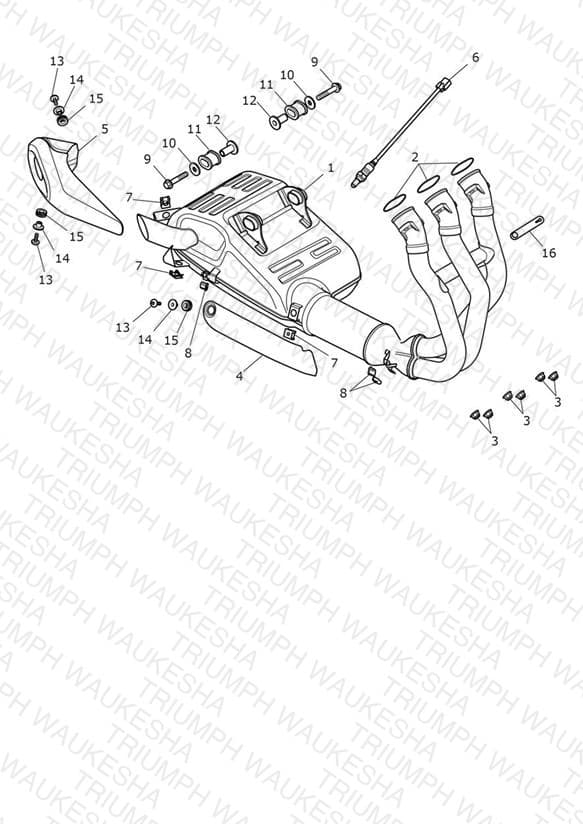

Exhaust System
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2208558 Header & Silencer Assembly | Header & Silencer Assembly All Except AU, CA, NZ, CN, US, DE, ES, FR, IT, NL, SE, UK, AR, GR, ID, JP, XA & ZA | 1 | $1610.26 | Backorder — Late August 2026 | 1 |
| 1 | T2208668 Header & Silencer Assembly | Header & Silencer Assembly AW6653 > DE, ES, FR, IT, NL, SE & UK Only | 1 | $1526.35 | Backorder — Late August 2026 | 1 |
| 1 | T2207447 Header & Silencer Assy | Header & Silencer Assy AU, CA, NZ & US Only | 1 | $1764.33 | Available to order | 1 |
| 1 | T2204114 Header & Silencer Assembly | Header & Silencer Assembly CN Only | 1 | $1680.96 | Backorder — Late August 2026 | 1 |
| 2 | T2200854 Header Gasket | Header Gasket | 3 | $7.31 | Available to order | 3 |
| 3 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 6 | $2.45 | Available to order | 6 |
| 4 | T2207380 Catalyst Heatshield Cover | Catalyst Heatshield Cover | 1 | $102.26 | Available to order | 1 |
| 5 | T2207370 Exit, Cover | Exit, Cover | 1 | $223.18 | Available to order | 1 |
| 6 | T2207250 Oxygen Sensor, Exhaust, M12, 250mm | Oxygen Sensor, Exhaust, M12, 250mm | 1 | $239.57 | Available to order | 1 |
| 7 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 3 | $2.48 | Available to order | 3 |
| 8 | T2204745 Grommet, Secondary Cvr Brkt | Grommet, Secondary Cvr Brkt | 3 | $2.63 | Available to order | 3 |
| 9 | T3205109 Bolt, HHF, Lghtd, M8 x 45, Slv | Bolt, HHF, Lghtd, M8 x 45, Slv | 2 | $5.12 | Available to order | 2 |
| 10 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 2 | $2.74 | Available to order | 2 |
| 11 | T2200912 Rubber Grommet, 7.86mm | Rubber Grommet, 7.86mm | 2 | $3.17 | Available to order | 2 |
| 12 | T3010212 Flanged Sleeve, M8 x 26.6 | Flanged Sleeve, M8 x 26.6 | 2 | $2.48 | Available to order | 2 |
| 13 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 3 | $6.73 | Available to order | 3 |
| 14 | T3010126 Flanged Sleeve, M5, Slv | Flanged Sleeve, M5, Slv | 3 | $2.17 | Out of Stock | Notify Me |
| 15 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 3 | $2.10 | Available to order | 3 |
| 16 | T3700212 Band, Rubber | Band, Rubber | 1 | $3.29 | Available to order | 1 |
