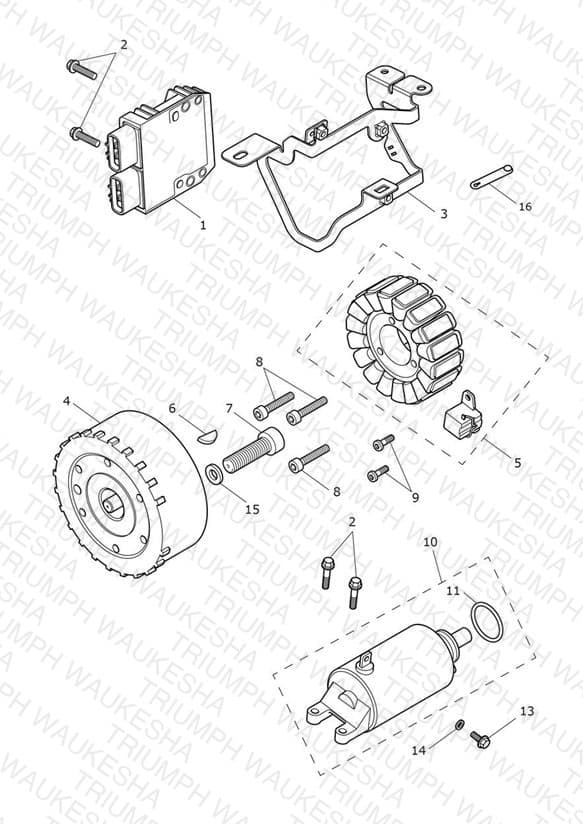

Alternator & Starter Motor
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1300679 Regulator Rectifier | Regulator Rectifier | 1 | $412.16 | Available to order | 1 |
| 2 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 4 | $2.46 | Available to order | 4 |
| 3 | T2505054 Bracket, Regulator | Bracket, Regulator | 1 | $29.22 | Out of Stock | Notify Me |
| 4 | T1304200 Alternator Rotor | Alternator Rotor | 1 | $853.60 | Available to order | 1 |
| 5 | T1304201 Alternator Stator | Alternator Stator | 1 | $549.37 | Available to order | 1 |
| 6 | T1300895 Key, Woodruff | Key, Woodruff | 1 | $7.77 | Available to order | 1 |
| 7 | T3208888 Bolt, Radial Feed, M12 x 40 | Bolt, Radial Feed, M12 x 40 > BS3435 & BT4560 > | 1 | $14.46 | Available to order | 1 |
| 7 | T3207777 Bolt, Radial Feed, M12 x 32 | Bolt, Radial Feed, M12 x 32 BS3436 > BT4559 | 1 | $14.46 | Out of Stock | Notify Me |
| 8 | T3050302 Capscrew, Skt/Hd, M6 x 35 | Capscrew, Skt/Hd, M6 x 35 | 3 | $1.21 | Available to order | 3 |
| 9 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $0.97 | Available to order | 2 |
| 10 | T1312223 Starter Motor, Black | Starter Motor, Black | 1 | $557.82 | Available to order | 1 |
| 11 | T3600115 O Ring | O Ring | 1 | $3.39 | Backorder — Mid September 2026 | 1 |
| 13 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 1 | $3.24 | Available to order | 1 |
| 14 | T3555007 Spring Washer, M5 | Spring Washer, M5 | 1 | $1.40 | Available to order | 1 |
| 15 | T3550846 Washer, M12 x 30 x 8 | Washer, M12 x 30 x 8 | 1 | $11.03 | Available to order | 1 |
| 16 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 1 | $3.90 | Available to order | 1 |
