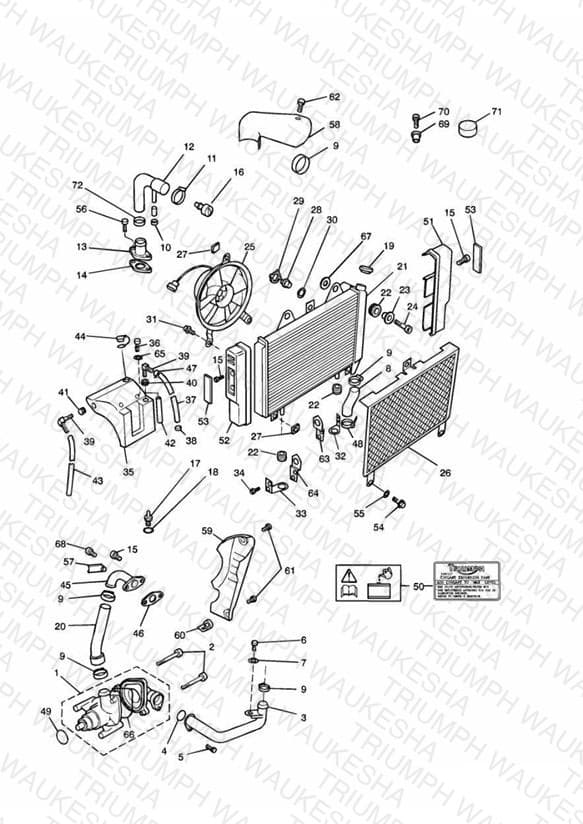

Cooling System
Parts (79)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2100006-T0301 Water pump assy | Water pump assy » 4901 Silver | 1 | $300.99 | Out of Stock | Notify Me |
| 1 | 2100000-T0301 Water pump assy | Water pump assy 4902 » Black | 1 | $300.99 | Available to order | 1 |
| 2 | 3200027-T0301 Bolt | Bolt M6 x 65mm | 2 | $3.17 | Obsolete | View Details |
| 3 | 2100116-T0301 Water pipe | Water pipe » 4901 | 1 | $45.80 | Obsolete | View Details |
| 3 | 2100050-T0301 Water pipe | Water pipe 4902 » | 1 | $64.45 | Obsolete | View Details |
| 4 | T3600036 O ring | O ring | 1 | $1.50 | Available to order | 1 |
| 5 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 1 | $1.84 | Available to order | 1 |
| 6 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv | 1 | $1.29 | Available to order | 1 |
| 7 | 3550030-T0301 Washer fibre | Washer fibre **PART NO LONGER AVAILABLE** | 1 | $0.54 | Obsolete | View Details |
| 8 | T2100071 Hose, Radiator, Bottom, 3 Cyl | Hose, Radiator, Bottom, 3 Cyl | 1 | $54.10 | Available to order | 1 |
| 9 | T2102242 Hose Clip, 23-35, Bright, Ss | Hose Clip, 23-35, Bright, Ss Black | 5 | $8.22 | Available to order | 5 |
| 10 | T2102280 Hose Clip, 12 x 25 | Hose Clip, 12 x 25 Black | 1 | $8.04 | Obsolete | View Details |
| 11 | T2102231 Hose Clip, 32 x 50 | Hose Clip, 32 x 50 Black | 1 | $2.52 | Obsolete | View Details |
| 12 | 2100009-T0301 Top hose | Top hose | 1 | $43.51 | Available to order | 1 |
| 13 | 2100114-T0301 Connection water outlet | Connection water outlet | 1 | $10.32 | Obsolete | View Details |
| 14 | T2100054 Gasket, Cyl Head Outlet | Gasket, Cyl Head Outlet | 1 | $1.60 | Available to order | 1 |
| 15 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 5 | $1.50 | Available to order | 5 |
| 16 | 2102130-T0301 Thermostat | Thermostat | 1 | $35.12 | Unavailable | View Details |
| 17 | 2102150-T0301 Sensor temperature | Sensor temperature | 1 | $40.87 | Available to order | 1 |
| 18 | 3550020-T0301 Sealing Washer, M10 | Sealing Washer, M10 M10 | 1 | $1.04 | Obsolete | View Details |
| 19 | T2100074 Cap Assy | Cap Assy » 31736 Not US, FR, SG | 1 | $27.61 | Available to order | 1 |
| 20 | T2100110 Hose outlet | Hose outlet | 1 | $24.57 | Available to order | 1 |
| 21 | 2101300-T0301 Radiator | Radiator » 4901 | 1 | $268.70 | Obsolete | View Details |
| 21 | 2101302-T0301 Radiator | Radiator 4902 » | 1 | $720.12 | Obsolete | View Details |
| 22 | T3020300 Grommet, Dia 19.5 x 4 Panel | Grommet, Dia 19.5 x 4 Panel | 4 | $3.61 | Backorder — Late October 2026 | 4 |
| 23 | T3010262 Flanged sleeve | Flanged sleeve | 2 | $5.67 | Obsolete | View Details |
| 24 | T3050323 Screw, Cap/Hd, M8 x 30, Slv | Screw, Cap/Hd, M8 x 30, Slv | 2 | $5.05 | Available to order | 2 |
| 25 | T3990105 Fan kit | Fan kit » 4901 Replaces all fans | 1 | $390.84 | Unavailable | 1 |
| 25 | 2101202-T0301 Fan assembly | Fan assembly 4902 » | 1 | $407.99 | Available to order | 1 |
| 26 | T2100129 Grille | Grille » 6210 | 1 | $27.90 | Obsolete | View Details |
| 27 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 6 | $5.24 | Available to order | 6 |
| 28 | 2101270-T0301 Switch | Switch | 1 | $56.73 | Obsolete | View Details |
| 29 | 2101274-T0301 Retainer | Retainer | 1 | $1.21 | Available to order | 1 |
| 30 | 2101272-T0301 Seal | Seal **PART NO LONGER AVAILABLE** | 1 | $2.81 | Obsolete | View Details |
| 31 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S | 3 | $1.04 | Available to order | 3 |
| 32 | T2101314 Radiator bracket | Radiator bracket » 36433 Lower LH | 1 | $5.16 | Obsolete | View Details |
| 33 | T2101315 Radiator bracket | Radiator bracket » 36433 Lower RH | 1 | $5.16 | Out of Stock | Notify Me |
| 35 | 2100117-T0301 Expansion tank | Expansion tank » 20144 | 1 | $71.02 | Obsolete | View Details |
| 35 | T2100400 Expansion tank | Expansion tank 20145 » | 1 | $67.64 | Obsolete | View Details |
| 36 | T3331111 Screw, Pan/Hd, Tx, M6 x 55, Slv | Screw, Pan/Hd, Tx, M6 x 55, Slv » 20144 | 2 | $7.18 | Available to order | 2 |
| 36 | T3300062 Pop Rivet | Pop Rivet 20145 » | 2 | $2.40 | Available to order | 2 |
| 37 | T3620305 Pipe | Pipe | 1 | $5.65 | Backorder — Late September 2026 | 1 |
| 38 | 3700075-T0301 Hose clip | Hose clip | 1 | $2.23 | Obsolete | View Details |
| 39 | T2100405 Elbow, ID 8.0 Tube | Elbow, ID 8.0 Tube | 2 | $1.50 | Available to order | 2 |
| 40 | 3450075-T0301 Grommet | Grommet | 1 | $1.29 | Obsolete | View Details |
| 41 | T3450035 Grommet, Dia 8, Dia 12.5, 3 | Grommet, Dia 8, Dia 12.5, 3 | 1 | $2.24 | Available to order | 1 |
| 42 | T3620320 Pipe, Expansion Tank, Internal | Pipe, Expansion Tank, Internal | 1 | $1.50 | Available to order | 1 |
| 44 | T2100997 Cap, Expansion Tank | Cap, Expansion Tank | 1 | $10.14 | Available to order | 1 |
| 45 | 2102139-T0301 Inlet elbow | Inlet elbow | 1 | $32.79 | Obsolete | View Details |
| 46 | T2102143 Gasket | Gasket | 1 | $1.50 | Available to order | 1 |
| 47 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 1 | $5.77 | Available to order | 1 |
| 48 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.95 | Available to order | 1 |
| 49 | 3600160-T0301 O Ring, Water Pump | O Ring, Water Pump | 1 | $9.60 | Available to order | 1 |
| 50 | T3900016 Label | Label **PART NO LONGER AVAILABLE** | 1 | $2.85 | Obsolete | View Details |
| 51 | 2100031-T0301 Cover lh | Cover lh » 2668 | 1 | $46.71 | Obsolete | View Details |
| 51 | 2100041-T0301 Cover lh | Cover lh 2669 » » 4901 | 1 | $1.84 | Obsolete | View Details |
| 51 | T2100552 Cover, Rad End, LH, Textured | Cover, Rad End, LH, Textured 4902 » » 29155 | 1 | $113.64 | Obsolete | View Details |
| 52 | 2100032-T0301 Cover rh | Cover rh » 2668 | 1 | $44.68 | Obsolete | View Details |
| 52 | 2100042-T0301 Cover rh | Cover rh 2669 » » 4901 | 1 | $1.62 | Obsolete | View Details |
| 52 | T2100502 Cover, Rad End, RH, Textured | Cover, Rad End, RH, Textured 4902 » » 29155 | 1 | $120.99 | Obsolete | View Details |
| 53 | T2700038 Reflector, Side, Yellow | Reflector, Side, Yellow Yellow | 2 | $9.92 | Obsolete | View Details |
| 54 | 3330504-T0301 Screw, M6 x 20 | Screw, M6 x 20 M6 x 20mm | 5 | $2.37 | Backorder — Early October 2026 | 5 |
| 55 | 3550060-T0301 Washer, Plastic, 14.3 x 2.0 | Washer, Plastic, 14.3 x 2.0 | 3 | $0.81 | Obsolete | View Details |
| 56 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 2 | $2.79 | Available to order | 2 |
| 57 | T2100049 Bracket | Bracket | 1 | $2.24 | Out of Stock | Notify Me |
| 58 | 2100060-T0301 Cover | Cover 4902 » » 29380 | 1 | $32.03 | Obsolete | View Details |
| 58 | T2100065 Cover | Cover 29381 » | 1 | $35.81 | Obsolete | View Details |
| 59 | 2100043-T0301 Cover | Cover 4902 » | 1 | $34.32 | Out of Stock | Notify Me |
| 60 | 2100037-T0301 Bracket | Bracket 4902 » | 1 | $13.31 | Out of Stock | Notify Me |
| 62 | T3051058 Screw, Cap/HD, M6 x 20, Enc | Screw, Cap/HD, M6 x 20, Enc 4902 » » 29380 M6 x 20mm | 1 | $1.21 | Available to order | 1 |
| 62 | T3050000 Capscrew, M6 x 12 | Capscrew, M6 x 12 29381 » | 1 | $1.04 | Obsolete | View Details |
| 65 | T3550135 Washer | Washer | 2 | $0.84 | Obsolete | View Details |
| 66 | T3600230 Seal | Seal | 1 | $6.15 | Available to order | 1 |
| 67 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 2 | $2.91 | Available to order | 2 |
| 68 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 1 | $5.65 | Available to order | 1 |
| 69 | T3010025 Flanged sleeve | Flanged sleeve > 4901 | 1 | $5.35 | Available to order | 1 |
| 71 | 4100020-T0301 Tape adhesive | Tape adhesive 2669 » » 4901 | 4 | $2.88 | Obsolete | View Details |
| 72 | T2012144 Stud, Sprocket Carrier | Stud, Sprocket Carrier | 1 | $8.11 | Available to order | 1 |
| 73 | T4007777 Coolant, OAT, Premix, D2053,12 x 1L | Coolant, OAT, Premix, D2053,12 x 1L Not Illustrated | — | $180.19 | Available to order | 1 |
