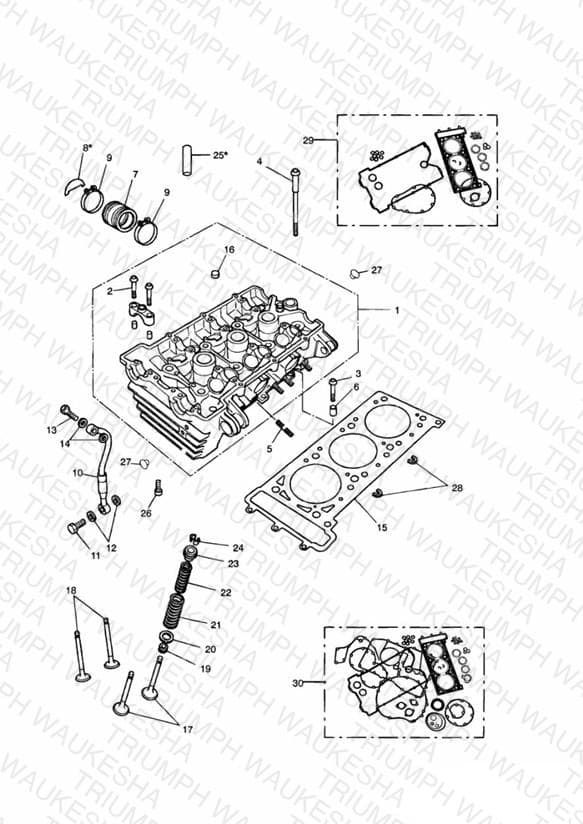

Cylinder Head and Valves
Parts (41)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1150530 Cylinder head sub assembly | Cylinder head sub assembly Silver | 1 | $2392.74 | Out of Stock | Notify Me |
| 1 | T1150528 Cylinder head assembly | Cylinder head assembly » ENG NO 45313 Black | 1 | $2392.74 | Out of Stock | Notify Me |
| 1 | T1150590 Cylinder head sub assembly | Cylinder head sub assembly ENG NO 45314 » Black | 1 | $2392.74 | Out of Stock | Notify Me |
| 2 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv | 18 | $3.70 | Available to order | 18 |
| 3 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv 9873 » M6 x 25mm | 2 | $2.63 | Available to order | 2 |
| 4 | 1160350-T0301 Bolt cylinder head | Bolt cylinder head » 9872 | 8 | $6.59 | Obsolete | View Details |
| 4 | T1160351 Bolt, M10x176.5, Torx 50 | Bolt, M10x176.5, Torx 50 9873 » | 8 | $10.18 | Available to order | 8 |
| 5 | T3100015 Stud, Shld, M8 x 36.5, Slv, Enc | Stud, Shld, M8 x 36.5, Slv, Enc | 6 | $2.74 | Available to order | 6 |
| 6 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 18 | $3.90 | Available to order | 18 |
| 7 | 1240080-T0301 Rubber | Rubber » ENG NO 55880 All markets except US Cal | 3 | $13.76 | Available to order | 3 |
| 7 | T1240092 Rubber, HT, Carb to Head | Rubber, HT, Carb to Head ENG NO 55881 » All markets except US Cal | 3 | $19.97 | Available to order | 3 |
| 7 | 1240110-T0301 Rubber | Rubber DE, 750cc 27PS Only (No.3 Cylinder) | 1 | $15.27 | Obsolete | View Details |
| 7 | 1240183-T0301 Rubber | Rubber » 42766 CH Later VIN`s use 1240080-T0301 // T1240086 | 3 | $22.53 | Out of Stock | Notify Me |
| 8 | 1240090-T0301 Plate | Plate DE - 750cc 50PS Models Part not serviced in US | 3 | $16.00 | Obsolete | View Details |
| 8 | 1240085-T0301 Plate | Plate DE - 750cc 27PS Models Part not serviced in US | 3 | $1.94 | Obsolete | View Details |
| 9 | 3700003-T0301 Clip, Carb Rubber | Clip, Carb Rubber | 6 | $4.30 | Available to order | 6 |
| 10 | T1210519 Oil feed pipe | Oil feed pipe | 1 | $59.55 | Obsolete | View Details |
| 11 | T1210446 Banjo bolt | Banjo bolt M14 | 1 | $9.71 | Obsolete | View Details |
| 12 | T3550547 Washer, Cu, OD19 x ID14.2 | Washer, Cu, OD19 x ID14.2 | 2 | $4.32 | Available to order | 2 |
| 13 | T1210240 Banjo Bolt, M10 x28 | Banjo Bolt, M10 x28 | 1 | $13.18 | Available to order | 1 |
| 14 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 2 | $0.89 | Available to order | 2 |
| 15 | T1150309 Cylinder head gasket | Cylinder head gasket | 1 | $153.06 | Available to order | 1 |
| 16 | T3450005 Plug, NPSI 3/8 Dryseal | Plug, NPSI 3/8 Dryseal | 2 | $6.65 | Available to order | 2 |
| 17 | T1130165 Valve exhaust | Valve exhaust | 6 | $66.52 | Available to order | 6 |
| 18 | T1130160 Valve inlet | Valve inlet | 6 | $74.12 | Available to order | 6 |
| 19 | T3600004 Oil Seal | Oil Seal | 12 | $15.60 | Available to order | 12 |
| 20 | 1130070-T0301 Thrust washer | Thrust washer » ENG NO 45313 | 12 | $0.57 | Obsolete | View Details |
| 20 | T3555019 Washer, 12.5 x 27 x 1 | Washer, 12.5 x 27 x 1 ENG NO 45314 » | 12 | $1.40 | Available to order | 12 |
| 21 | 1130115-T0301 Valve spring outer | Valve spring outer | 12 | $8.79 | Obsolete | View Details |
| 22 | 1130110-T0301 Valve spring inner | Valve spring inner » ENG NO 45313 | 12 | $3.99 | Obsolete | View Details |
| 22 | T1130125 Valve spring inner | Valve spring inner ENG NO 45314 » | 12 | $8.79 | Obsolete | View Details |
| 23 | T1130053 Retainer, Spring, Valve | Retainer, Spring, Valve | 12 | $1.40 | Available to order | 12 |
| 24 | T1135500 Collet, Valve, 5.5mm | Collet, Valve, 5.5mm | 24 | $1.16 | Available to order | 24 |
| 25 | 1240116-T0301 Bleed pipe | Bleed pipe Part not serviced in US | 1 | $1.06 | Out of Stock | Notify Me |
| 26 | 3330015-T0301 Screw Pan/Hd | Screw Pan/Hd » 4901 M6 x 20mm Silver | 3 | $1.89 | Obsolete | View Details |
| 26 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc 4902 » | 3 | $1.06 | Available to order | 3 |
| 27 | T3450009 Plug, M6 | Plug, M6 » 27441 M6 | 2 | $3.24 | Available to order | 2 |
| 27 | 3450010-T0301 Plug, Rubber, M8 | Plug, Rubber, M8 27442 » M8 | 2 | $1.18 | Obsolete | View Details |
| 28 | 1150016-T0301 Spacer | Spacer | 2 | $6.45 | Available to order | 2 |
| 29 | 3990060-T0301 Gasket set | Gasket set Cylinder head | 1 | $254.48 | Available to order | 1 |
| 30 | 3990050-T0301 Gasket set | Gasket set Full | 1 | $315.39 | Out of Stock | Notify Me |
