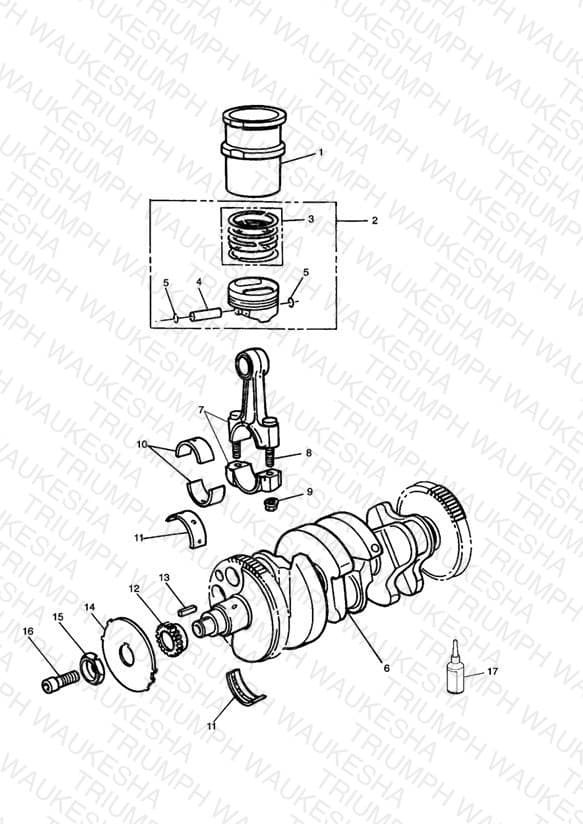

Crankshaft/Conn Rod/Pistons and Liners
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1160680 Cylinder liner | Cylinder liner CI Cylinder No 1 & 3 | 2 | $111.41 | Obsolete | View Details |
| 1 | T1160682 Cylinder liner | Cylinder liner Cylinder No 2 * PART NO LONGER AVAILABLE * | 1 | $124.14 | Obsolete | View Details |
| 2 | 1120000-T0301 Piston assembly | Piston assembly Cylinder No 1 & 3 900cc Engine Long stroke | 2 | $184.39 | Available to order | 2 |
| 2 | 1120002-T0301 Piston assembly | Piston assembly Cylinder No 2 900cc Engine Long stroke | 1 | $184.39 | Available to order | 1 |
| 2 | 1120005-T0301 Piston assembly | Piston assembly Cylinder No 1 & 3 750cc Engine Short stroke | 2 | $184.39 | Backorder — Late August 2026 | 2 |
| 2 | 1120007-T0301 Piston assembly | Piston assembly Cylinder No 2 750cc Engine Short stroke | 1 | $163.85 | Obsolete | View Details |
| 3 | 1120120-T0301 Piston ring set | Piston ring set | 3 | $77.01 | Available to order | 3 |
| 4 | T1120800 Gudgeon pin | Gudgeon pin | 3 | $7.62 | Available to order | 3 |
| 5 | 1120015-T0301 Circlip, Piston | Circlip, Piston | 6 | $1.21 | Available to order | 6 |
| 6 | 1200400-T0301 Crankshaft assembly | Crankshaft assembly 900cc Engine See Service Bulletin 183 | 1 | $1067.83 | Obsolete | View Details |
| 6 | 1200401-T0301 Crankshaft | Crankshaft 750cc Engine See Service Bulletin 183 | 1 | $955.05 | Obsolete | View Details |
| 7 | T1110500 Con Rod, Short Stroke | Con Rod, Short Stroke 750cc Engine | 3 | $166.85 | Obsolete | View Details |
| 7 | T1110014 Connecting rod | Connecting rod 900cc Engines | 3 | $129.27 | Available to order | 3 |
| 8 | T1110060 Bolt Con Rod | Bolt Con Rod | 6 | $10.55 | Backorder — Mid August 2026 | 6 |
| 8 | T1110301 Conrod Bolt, M8 x 0.75 x 42 | Conrod Bolt, M8 x 0.75 x 42 To be used with Con Rod T1111000 | 6 | $13.18 | Available to order | 6 |
| 9 | T1110016 Nut, Con Rod | Nut, Con Rod | 6 | $9.69 | Available to order | 6 |
| 10 | 1110051-T0301 Bearing, Con Rod Shell, White | Bearing, Con Rod Shell, White Use with 1110150-T0301; Selective Fit | 6 | $4.97 | Obsolete | View Details |
| 10 | 1110052-T0301 Bearing, Con Rod Shell, Red | Bearing, Con Rod Shell, Red Use with Con Rod 1110150-T0301 | 6 | $6.39 | Available to order | 6 |
| 10 | 1110053-T0301 Bearing, Con Rod Shell, Blue | Bearing, Con Rod Shell, Blue Used with Con Rod 1110150-T0301 | 6 | $10.18 | Available to order | 6 |
| 10 | T1110054 Bearing, Con Rod Shell, White | Bearing, Con Rod Shell, White Used with T1111000 & T1110014; Sel. Fit | 6 | $10.18 | Available to order | 6 |
| 10 | T1110055 Bearing, Con Rod Shell, Red | Bearing, Con Rod Shell, Red Used with T1111000 & T1110014. Sel. Fit | 6 | $12.70 | Available to order | 6 |
| 10 | T1110056 Bearing Con Rod Shell, Blue | Bearing Con Rod Shell, Blue Used with T1110014; Selective Fit | 6 | $12.70 | Available to order | 6 |
| 11 | 1160371-T0301 Bearing Shell, Main, Grooved | Bearing Shell, Main, Grooved White Use as required - ** Part No Longer Available ** | 8 | $13.96 | Obsolete | View Details |
| 11 | T1160751 Main Bearing Shell, Grooved | Main Bearing Shell, Grooved Red Use as required | 8 | $12.70 | Available to order | 8 |
| 11 | 1160373-T0301 Bearing Shell, Main, Grooved | Bearing Shell, Main, Grooved Blue Use as required - ** Part No Longer Available ** | 8 | $12.98 | Obsolete | View Details |
| 11 | 1160374-T0301 Bearing Shell, Main, Grooved | Bearing Shell, Main, Grooved Green Use as required - ** Part No Longer Available ** | 8 | $7.54 | Obsolete | View Details |
| 12 | T1140049 Sprocket, Crankshaft, 19T | Sprocket, Crankshaft, 19T | 1 | $86.49 | Out of Stock | Notify Me |
| 13 | 1100041-T0301 Crankshaft key | Crankshaft key | 1 | $6.83 | Available to order | 1 |
| 14 | T1290110 Rotor | Rotor ** Part No Longer Available ** | 1 | $32.16 | Obsolete | View Details |
| 15 | 1100039-T0301 Clamping piece | Clamping piece | 1 | $15.14 | Available to order | 1 |
| 16 | T3050161 Screw, Cap/HD. M8 x 20, Raw | Screw, Cap/HD. M8 x 20, Raw | 1 | $0.97 | Out of Stock | Notify Me |
| 17 | T4000625 Hylomar | Hylomar | 1 | $42.57 | Available to order | 1 |
