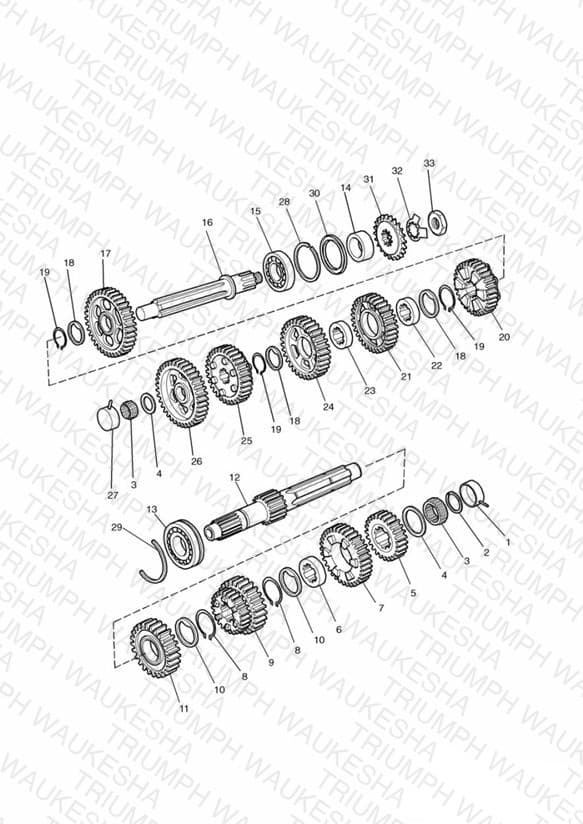

Transmission
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1180156 Sleeve Assy, Needle bearing | Sleeve Assy, Needle bearing | 1 | $63.70 | Available to order | 1 |
| 2 | T3500201 Circlip, EXT, 23.5 x 1.2 | Circlip, EXT, 23.5 x 1.2 | 1 | $4.36 | Available to order | 1 |
| 3 | T3800006 Bearing, Needle, K25x32x16 | Bearing, Needle, K25x32x16 | 2 | $17.21 | Available to order | 2 |
| 4 | T3555005 Washer, 25.5 x 38 x 1.5 | Washer, 25.5 x 38 x 1.5 | 2 | $3.70 | Available to order | 2 |
| 5 | 1180490-T0301 Gear input | Gear input 2nd | 1 | $52.87 | Obsolete | View Details |
| 6 | 1180563-T0301 Bush splined | Bush splined | 1 | $45.20 | Out of Stock | Notify Me |
| 7 | 1180520-T0301 Gear input | Gear input 6th | 1 | $61.79 | Out of Stock | Notify Me |
| 8 | T3500003 Circlip, 32mm Shaft | Circlip, 32mm Shaft | 2 | $7.02 | Available to order | 2 |
| 9 | 1180500-T0301 Gear input | Gear input 3rd/4th | 1 | $71.06 | Obsolete | View Details |
| 10 | 1180280-T0301 Thrust washer | Thrust washer | 2 | $1.49 | Obsolete | View Details |
| 11 | 1180401-T0301 Gear input | Gear input 5th | 1 | $105.49 | Obsolete | View Details |
| 12 | 1180480-T0301 Input shaft and gear | Input shaft and gear | 1 | $241.31 | Obsolete | View Details |
| 13 | 3800002-T0301 Bearing, Ball, DG2868 GN1C3 | Bearing, Ball, DG2868 GN1C3 | 1 | $43.51 | Available to order | 1 |
| 14 | 1180160-T0301 Distance Sleeve | Distance Sleeve PART NO LONGER AVAILABLE | 1 | $1.80 | Obsolete | View Details |
| 15 | T3800132 Bearing, 30 x 62 x 16, DGB | Bearing, 30 x 62 x 16, DGB | 1 | $119.76 | Out of Stock | Notify Me |
| 16 | 1180010-T0301 Shaft output | Shaft output | 1 | $212.36 | Obsolete | View Details |
| 17 | 1180403-T0301 Gear output | Gear output 2nd | 1 | $118.51 | Obsolete | View Details |
| 18 | 1180290-T0301 Thrust washer | Thrust washer ** Part No Longer Available ** | 3 | $3.32 | Obsolete | View Details |
| 19 | T3500202 Circlip | Circlip | 3 | $5.60 | Available to order | 3 |
| 20 | 1180470-T0301 Gear output | Gear output 6th | 1 | $126.32 | Obsolete | View Details |
| 21 | 1180450-T0301 Gear output | Gear output 4th | 1 | $119.76 | Backorder — Late August 2026 | 1 |
| 22 | 1180567-T0301 Bush | Bush | 1 | $65.94 | Obsolete | View Details |
| 23 | 1180566-T0301 Bush | Bush | 1 | $67.25 | Obsolete | View Details |
| 24 | 1180440-T0301 Gear output | Gear output 3rd | 1 | $108.87 | Obsolete | View Details |
| 25 | 1180460-T0301 Gear output | Gear output 5th | 1 | $124.92 | Obsolete | View Details |
| 26 | 1180402-T0301 Gear output | Gear output 1st | 1 | $164.00 | Obsolete | View Details |
| 27 | 1180130-T0301 Bearing sleeve | Bearing sleeve | 1 | $96.75 | Obsolete | View Details |
| 28 | T3800300 Snap Ring, Ext, 62 x 1.7 | Snap Ring, Ext, 62 x 1.7 | 1 | $3.59 | Available to order | 1 |
| 29 | T3800196 Retaining Ring, Bearing | Retaining Ring, Bearing | 1 | $4.92 | Available to order | 1 |
| 30 | T3600112 Oil seal | Oil seal | 1 | $11.32 | Available to order | 1 |
| 31 | T1180178 Sprocket gearbox 17 teeth | Sprocket gearbox 17 teeth 17 Teeth 750cc Engine 900cc Engine | 1 | $93.05 | Backorder — Late August 2026 | 1 |
| 32 | T1180181 Washer, Gearbox Sprocket | Washer, Gearbox Sprocket | 1 | $7.56 | Available to order | 1 |
| 33 | T1180175 Nut, Gearbox Sprocket | Nut, Gearbox Sprocket | 1 | $5.56 | Available to order | 1 |
