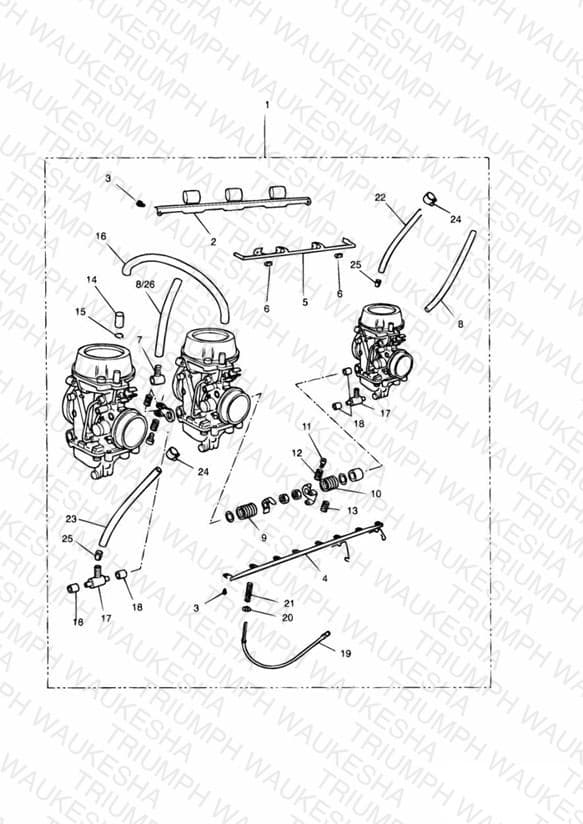

Carburettors All Markets Except US CAL » ENG NO 55880
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1240650 Carburettor assembly | Carburettor assembly 900cc Engine All Markets Except US and CH | 1 | $2037.34 | Obsolete | View Details |
| 1 | T1240620 Carburettor assembly | Carburettor assembly 900cc Engine US 49 States & SG | 1 | $2277.92 | Obsolete | View Details |
| 1 | T1240625 Carburettor assembly | Carburettor assembly 900cc Engine US CAL | 1 | $2037.34 | Obsolete | View Details |
| 1 | T1240750 Carburettor assembly | Carburettor assembly 750cc Engine All Markets Except US and CH | 1 | $1884.31 | Obsolete | View Details |
| 1 | T1240630 Carburettor assembly | Carburettor assembly 750cc Engine US 49 States & SG | 1 | $2277.92 | Obsolete | View Details |
| 1 | 1240130-T0301 Carburettor assembly | Carburettor assembly DE - 750cc 50PS Models | 1 | $1997.40 | Obsolete | View Details |
| 1 | 1240127-T0301 Carburettor assembly | Carburettor assembly DE - 750cc 27PS Models | 1 | $2277.92 | Obsolete | View Details |
| 1 | 1240198-T0301 Carburettor assembly | Carburettor assembly » 42766 900cc Engine CH | 1 | $2614.80 | Obsolete | View Details |
| 1 | T1240635 Carburettor assembly | Carburettor assembly 42767 » 900cc Engine CH | 1 | $2277.92 | Obsolete | View Details |
| 1 | 1240199-T0301 Carburettor assembly | Carburettor assembly 750cc Engine CH | 1 | $2614.80 | Obsolete | View Details |
| 2 | 1240300-T0301 Mounting bracket | Mounting bracket Upper | 1 | $7.58 | Obsolete | View Details |
| 3 | 1240017-T0301 Screw | Screw | 12 | $1.40 | Available to order | 12 |
| 4 | 1240305-T0301 Mounting bracket | Mounting bracket Lower | 1 | $29.77 | Obsolete | View Details |
| 5 | 1240310-T0301 Choke lever | Choke lever | 1 | $6.45 | Obsolete | View Details |
| 6 | 1240019-T0301 Clip | Clip | 3 | $0.97 | Available to order | 3 |
| 7 | 1240025-T0301 Tee piece | Tee piece | 1 | $3.77 | Available to order | 1 |
| 8 | 3620045-T0301 Vent pipe | Vent pipe Not US CAL | 2 | $16.25 | Available to order | 2 |
| 9 | 1240026-T0301 Spring | Spring | 1 | $7.42 | Available to order | 1 |
| 10 | 1240027-T0301 Spring throttle | Spring throttle | 1 | $5.72 | Obsolete | View Details |
| 11 | T1240028 Road Speed Sensor | Road Speed Sensor | 2 | $0.77 | Obsolete | View Details |
| 12 | 1240029-T0301 Spring | Spring | 2 | $1.40 | Backorder — Late August 2026 | 2 |
| 13 | 1240030-T0301 Spring | Spring | 2 | $1.51 | Available to order | 2 |
| 14 | 1240031-T0301 Cap | Cap | 2 | $3.77 | Available to order | 2 |
| 15 | 1240032-T0301 Clip | Clip | 2 | $1.51 | Available to order | 2 |
| 16 | 3620200-T0301 Vacuum pipe | Vacuum pipe | 1 | $10.90 | Available to order | 1 |
| 17 | 1240033-T0301 Tee piece | Tee piece | 2 | $21.75 | Available to order | 2 |
| 18 | 1240034-T0301 Seal | Seal | 4 | $6.14 | Available to order | 4 |
| 19 | 1240315-T0301 Idle adjuster assembly | Idle adjuster assembly | 1 | $66.52 | Available to order | 1 |
| 20 | 1240036-T0301 Washer | Washer | 1 | $0.89 | Available to order | 1 |
| 21 | 1240037-T0301 Spring | Spring | 1 | $4.29 | Obsolete | View Details |
| 22 | 3620025-T0301 Fuel pipe | Fuel pipe LH Not US CAL | 1 | $38.56 | Available to order | 1 |
| 23 | 3620015-T0301 Fuel pipe | Fuel pipe RH | 1 | $38.56 | Available to order | 1 |
| 24 | T3700030 Clip pipe | Clip pipe | 4 | $0.97 | Available to order | 4 |
| 25 | 1240180-T0301 Fuel filter | Fuel filter | 2 | $6.39 | Available to order | 2 |
| 26 | T3620255 Vent pipe | Vent pipe RH US CAL - PART NO LONGER AVAILABLE | 1 | $8.82 | Obsolete | View Details |
| 27 | 3450185-T0301 Plug | Plug CH Not illustrated | 3 | $1.18 | Obsolete | View Details |
| 28 | 3450180-T0301 Plug | Plug CH Not illustrated | 3 | $1.18 | Obsolete | View Details |
