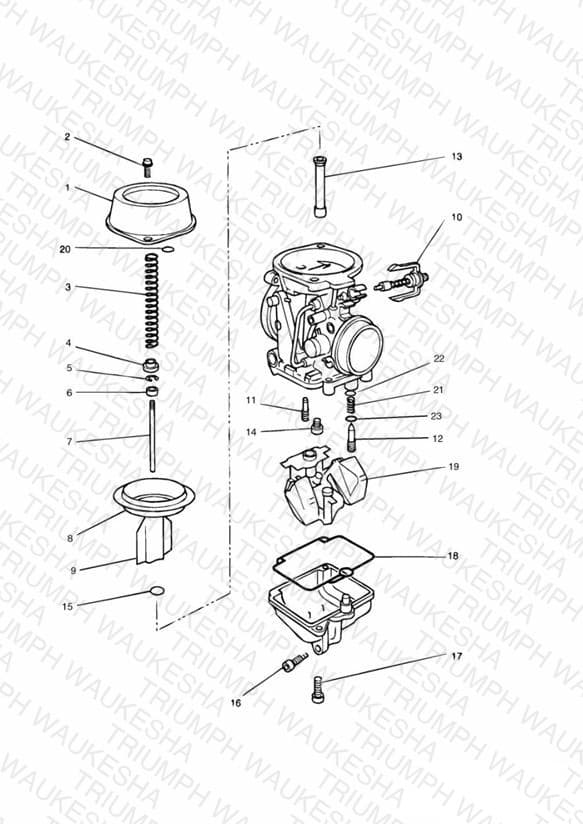

Carburettor Parts (Carb Assy T1240625)
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 1240038-T0301 Cover | Cover | 3 | $42.57 | Available to order | 3 |
| 2 | 1240039-T0301 Screw | Screw 2 Per Carburettor | 6 | $1.13 | Available to order | 6 |
| 3 | 1240040-T0301 Piston spring | Piston spring | 3 | $6.83 | Available to order | 3 |
| 4 | 1240041-T0301 Spacer | Spacer | 3 | $1.13 | Available to order | 3 |
| 5 | 1240042-T0301 Circlip | Circlip | 3 | $1.13 | Available to order | 3 |
| 6 | 1240043-T0301 Spacer | Spacer | 3 | $0.97 | Backorder — Late August 2026 | 3 |
| 7 | 1240047-T0301 Needle 5e56-3 | Needle 5e56-3 | 3 | $11.88 | Available to order | 3 |
| 8 | 1240048-T0301 Diaphragm | Diaphragm | 3 | $20.05 | Available to order | 3 |
| 9 | 1240049-T0301 Piston | Piston | 3 | $55.12 | Backorder — Mid August 2026 | 3 |
| 10 | 1240050-T0301 Needle assy | Needle assy | 3 | $5.54 | Backorder — Mid August 2026 | 3 |
| 11 | 1240051-T0301 Pilot jet 40.0 | Pilot jet 40.0 | 3 | $10.71 | Available to order | 3 |
| 12 | 1240052-T0301 Adjusting screw | Adjusting screw | 3 | $12.04 | Available to order | 3 |
| 13 | 1240149-T0301 Needle jet 0-6 | Needle jet 0-6 | 3 | $30.02 | Available to order | 3 |
| 14 | 1240226-T0301 Main jet 105 | Main jet 105 | 3 | $11.32 | Available to order | 3 |
| 15 | 1240058-T0301 O ring | O ring | 3 | $5.24 | Available to order | 3 |
| 16 | 1240059-T0301 Screw | Screw * PART NO LONGER AVAILABLE * | 3 | $3.46 | Obsolete | View Details |
| 17 | 1240017-T0301 Screw | Screw | 6 | $1.40 | Available to order | 6 |
| 18 | 1240060-T0301 Seal | Seal | 3 | $11.41 | Available to order | 3 |
| 19 | 1240061-T0301 Float assembly | Float assembly | 3 | $67.47 | Available to order | 3 |
| 20 | 1240076-T0301 O ring | O ring | 3 | $2.00 | Available to order | 3 |
| 21 | 1240318-T0301 Spring | Spring | 3 | $11.32 | Available to order | 3 |
| 22 | 1240320-T0301 Washer | Washer | 3 | $11.32 | Available to order | 3 |
| 23 | T3600103 O ring | O ring | 1 | $2.63 | Available to order | 1 |
