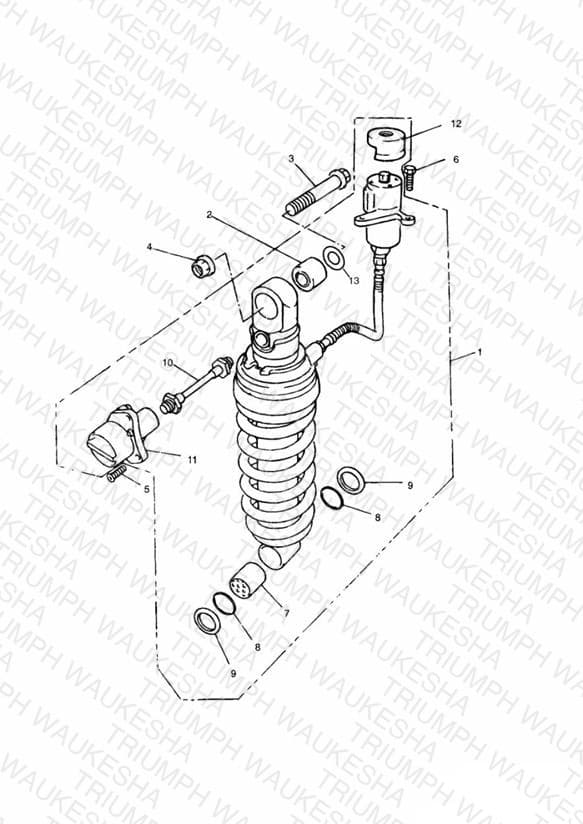

Rear Suspension Unit 900cc Model 9083 » » 29155
← Rear Suspension Unit All models to VIN 9082 and All 750cc modelsRear Suspension Unit 900cc Model 29156 » » 51975 →
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2050100-T0301 Rear suspension unit | Rear suspension unit » 4901 DE, 750 and 900 All Vins | 1 | $1184.76 | Obsolete | View Details |
| 1 | 2050107-T0301 Rear suspension unit | Rear suspension unit 4902 » » 9082 DE, 750 and 900 All Vins | 1 | $1184.76 | Obsolete | View Details |
| 2 | 2050081-T0301 Bush | Bush | 1 | $18.98 | Obsolete | View Details |
| 3 | T3334640 Screw, HHF, M12 x 60 | Screw, HHF, M12 x 60 | 1 | $5.78 | Out of Stock | Notify Me |
| 4 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 1 | $6.07 | Available to order | 1 |
| 5 | 3210040-T0301 Screw,torx | Screw,torx M5 x 15mm | 2 | $1.32 | Obsolete | View Details |
| 6 | 3150008-T0301 Bolt | Bolt M6 x 8mm | 2 | $1.50 | Obsolete | View Details |
| 7 | 3750015-T0301 Bush | Bush PART NO LONGER AVAILABLE | 1 | $6.34 | Obsolete | View Details |
| 8 | 3600125-T0301 O ring | O ring | 2 | $1.18 | Obsolete | View Details |
| 9 | T2050110 Retainer, Seal | Retainer, Seal PART NO LONGER AVAILABLE | 2 | — | Obsolete | View Details |
| 10 | 2050079-T0301 Cable | Cable | 1 | $47.86 | Obsolete | View Details |
| 11 | 2050080-T0301 Adjuster | Adjuster | 1 | $109.44 | Obsolete | View Details |
| 12 | 3450025-T0301 Cover | Cover | 1 | $1.18 | Obsolete | View Details |
| 13 | T3550614 Washer, 12 x 23 x 2 | Washer, 12 x 23 x 2 M12 | 1 | $0.97 | Available to order | 1 |
