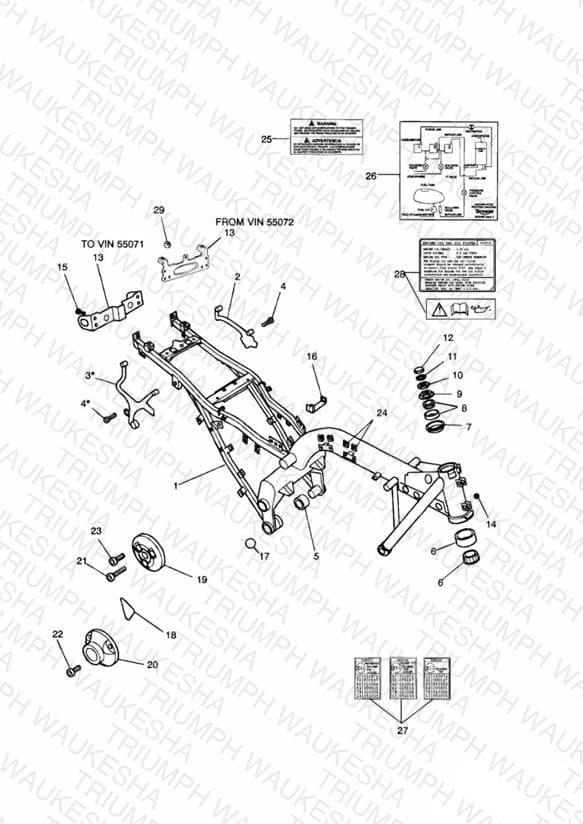

Main Frame & Fittings
Parts (45)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2078980 Frame assembly | Frame assembly » 29155 Black Not US & South America | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2078982 Frame assembly | Frame assembly 29156 » » 44092 Black Not US & South America | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2078985 Frame assembly | Frame assembly » 29155 Black US 49 States, SG & South America | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2078987 Frame assembly | Frame assembly 29156 » » 44092 Black US 49 States, SG & South America | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2078990 Frame assembly | Frame assembly » 29155 Black US CAL | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2078992 Frame assembly | Frame assembly 29156 » » 44092 Black US CAL | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2078997 Frame assembly | Frame assembly Black Canada | 1 | $2082.04 | Obsolete | View Details |
| 2 | 2070780-T0301 Lifting handle | Lifting handle » 4502 LH | 1 | $72.65 | Obsolete | View Details |
| 2 | 2070782-T0301 Lifting handle | Lifting handle 4503 » » 4901 LH | 1 | $60.05 | Obsolete | View Details |
| 2 | 2070787-T0301 Lifting handle | Lifting handle 4902 » LH | 1 | $63.48 | Obsolete | View Details |
| 3 | 2070770-T0301 Lifting handle | Lifting handle » 4502 RH | 1 | $72.65 | Obsolete | View Details |
| 4 | T3202118 Bolt, RHHF, M8 x 1.25 x 45, Slv | Bolt, RHHF, M8 x 1.25 x 45, Slv | 4 | $1.62 | Available to order | 4 |
| 5 | 2078691-T0301 Sleeve | Sleeve | 1 | $9.72 | Obsolete | View Details |
| 6 | T3800031 Bearing, 30x55x17, Taper Roll | Bearing, 30x55x17, Taper Roll | 1 | $32.55 | Available to order | 1 |
| 7 | 2070002-T0301 Bearing cup | Bearing cup | 1 | $28.34 | Available to order | 1 |
| 8 | T3800032 Bearing, 24x47x15, Taper Roll | Bearing, 24x47x15, Taper Roll » 43916 | 1 | $61.04 | Available to order | 1 |
| 8 | T3800055 Bearing | Bearing 43917 » | 1 | $54.11 | Available to order | 1 |
| 9 | 2040225-T0301 Adjuster nut | Adjuster nut PART NO LONGER AVAILABLE » 43916 Lower | 1 | $5.11 | Obsolete | View Details |
| 9 | T2040259 Cover, Headstock Assy | Cover, Headstock Assy 43917 » Lower | 1 | $24.33 | Out of Stock | Notify Me |
| 10 | T2140210 Adjuster Nut, Upper | Adjuster Nut, Upper | 1 | $3.39 | Available to order | 1 |
| 11 | T2040061 Washer Upper Yoke | Washer Upper Yoke | 1 | $7.14 | Available to order | 1 |
| 12 | T2040060 Nut | Nut | 1 | $24.83 | Available to order | 1 |
| 13 | 2070721-T0301 Bracket | Bracket » 55071 | 1 | $11.47 | Obsolete | View Details |
| 13 | T2070990 Bracket | Bracket 55072 » | 1 | $13.61 | Backorder — Late August 2026 | 1 |
| 14 | T3450009 Plug, M6 | Plug, M6 | 4 | $3.24 | Available to order | 4 |
| 15 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 6 | $1.72 | Available to order | 6 |
| 16 | 2070705-T0301 Bridge | Bridge | 1 | $13.22 | Obsolete | View Details |
| 17 | 3450190-T0301 End cap | End cap 4100 » | 1 | $0.96 | Obsolete | View Details |
| 18 | 3900072-T0301 Badge | Badge 4902 » | 1 | $4.44 | Obsolete | View Details |
| 19 | 2071021-T0301 Finisher | Finisher 4902 » Top | 2 | $16.45 | Obsolete | View Details |
| 20 | T2071031 Finisher | Finisher 4902 » Bottom | 2 | $15.28 | Obsolete | View Details |
| 21 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv 4902 » | 2 | $1.51 | Available to order | 2 |
| 22 | 3050038-T0301 Capscrew | Capscrew 4902 » M6 x 10mm | 6 | $0.28 | Obsolete | View Details |
| 23 | 3050039-T0301 Capscrew | Capscrew 4902 » M6 x 8mm - PART NO LONGER AVAILABLE | 6 | $1.57 | Obsolete | View Details |
| 24 | T3351002 Nut, Captive, U-Type, M5, Slv | Nut, Captive, U-Type, M5, Slv | 6 | $2.37 | Available to order | 6 |
| 25 | T3900169 Label, Frame modification | Label, Frame modification US | 1 | $4.55 | Available to order | 1 |
| 26 | T3930085 Label | Label Carb diagram US CAL | 1 | $4.18 | Obsolete | View Details |
| 27 | T3900150 Label | Label » 4901 ECE 900cc Engine | 1 | $3.43 | Obsolete | View Details |
| 27 | T3900270 Label | Label 4902 » » 55071 ECE 900cc Engine | 1 | $6.84 | Obsolete | View Details |
| 27 | T3900019 Label | Label 55072 » ECE 900cc Engine | 1 | $6.84 | Obsolete | View Details |
| 27 | 3900155-T0301 TRIDENT 750 HEADSTOCK LABEL | TRIDENT 750 HEADSTOCK LABEL ECE 750cc Engine | 1 | $3.53 | Obsolete | View Details |
| 27 | T3900032 Label | Label ECE 900cc Engine DE | 1 | $6.84 | Obsolete | View Details |
| 28 | 3900010-T0301 Label | Label » 16921 Oil & filter UK, NZ, AU, ZA, GR, CY, HK, MY, SE | 1 | $4.76 | Unavailable | 1 |
| 28 | T3900136 Label, Engine Oil | Label, Engine Oil » 16921 Oil & filter CH, DE | 1 | $2.85 | Available to order | 1 |
| 29 | T3350029 Square nut | Square nut 55072 » M8 | 2 | $8.09 | Available to order | 2 |
