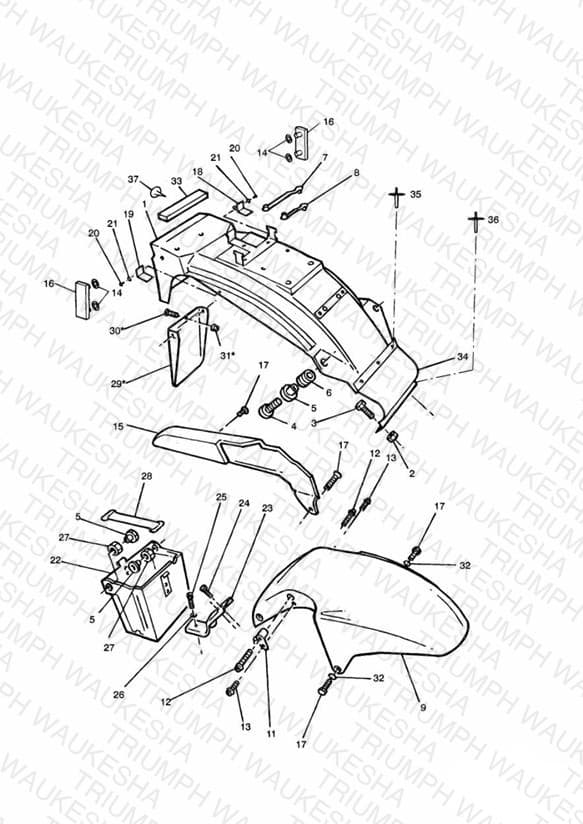

Mudguards/Chainguard/Battery Box
Parts (46)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2300200 Rear Mudguard Assy | Rear Mudguard Assy » 20144 | 1 | $902.22 | Obsolete | View Details |
| 1 | T2301130 Rear mudguard | Rear mudguard 20145 » | 1 | $306.45 | Obsolete | View Details |
| 2 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 2 | $2.45 | Available to order | 2 |
| 3 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 2 | $1.62 | Available to order | 2 |
| 4 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 6 | $4.55 | Available to order | 6 |
| 5 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 8 | $5.78 | Available to order | 8 |
| 6 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 6 | $1.91 | Available to order | 6 |
| 7 | 3700009-T0301 Clip | Clip Large | 2 | $0.90 | Obsolete | View Details |
| 8 | 3700010-T0301 Clip cable | Clip cable Small | 2 | $0.46 | Obsolete | View Details |
| 9 | 2305226-T0301 Front mudguard Replaced by T2305226-HA — Front mudguard | Front mudguard » 42766 British Racing Green | 1 | $208.59 | Unavailable | View Details |
| 9 | T2305226-HA Front mudguard | Front mudguard 42767 » British Racing Green | 1 | $186.56 | Obsolete | View Details |
| 9 | T2305226-HD Front mudguard | Front mudguard Heritage Green | 1 | $195.89 | Obsolete | View Details |
| 9 | 2305216-T0301 Front mudguard | Front mudguard Cherry Red | 1 | $208.59 | Obsolete | View Details |
| 9 | 2305217-T0301 Front mudguard | Front mudguard » 4901 Cherry Black | 1 | $208.59 | Obsolete | View Details |
| 9 | 2305224-T0301 Front mudguard | Front mudguard 4902 » » 42766 Diablo Black | 1 | $208.59 | Obsolete | View Details |
| 9 | T2305226-PG Front mudguard | Front mudguard 42767 » Jet Black | 1 | $195.89 | Obsolete | View Details |
| 9 | T2305226-MD Front mudguard | Front mudguard Silver | 1 | $186.56 | Obsolete | View Details |
| 9 | 2305225-T0301 Front mudguard | Front mudguard Cinnabar Red | 1 | $208.59 | Obsolete | View Details |
| 9 | T2305226-JI Front mudguard | Front mudguard Pacific Blue | 1 | $186.56 | Obsolete | View Details |
| 11 | T2020091 Bracket, RH | Bracket, RH ** Part No Longer Available ** | 1 | $4.94 | Obsolete | View Details |
| 12 | T3331111 Screw, Pan/Hd, Tx, M6 x 55, Slv | Screw, Pan/Hd, Tx, M6 x 55, Slv Brake hose brckt to mudguard | 2 | $6.73 | Backorder — Mid August 2026 | 2 |
| 13 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc Brake hose brckt to fork leg | 2 | $1.06 | Available to order | 2 |
| 14 | T3500025 Spire nut | Spire nut US and CA | 4 | $3.50 | Backorder — Late August 2026 | 4 |
| 15 | 2058000-T0301 Chainguard | Chainguard | 1 | $57.41 | Obsolete | View Details |
| 16 | T2700450 Reflector | Reflector US and CA | 4 | $10.40 | Obsolete | View Details |
| 17 | T3330095 Bolt | Bolt M6 x 20mm Black | 2 | $12.46 | Available to order | 2 |
| 17 | 3330504-T0301 Screw, M6 x 20 | Screw, M6 x 20 M6 x 20mm Chrome | 2 | $2.22 | Available to order | 2 |
| 18 | 2300343-T0301 Air intake shield | Air intake shield » 20144 Then deleted LH | 1 | $10.32 | Obsolete | View Details |
| 19 | 2300342-T0301 Air intake shield | Air intake shield » 20144 Then deleted RH | 1 | $10.32 | Obsolete | View Details |
| 20 | T2307377 Pop Rivet, Dia 4.8 | Pop Rivet, Dia 4.8 » 20144 Then deleted | 4 | $1.13 | Available to order | 4 |
| 21 | T3550135 Washer | Washer » 20144 Then deleted | 4 | $0.79 | Obsolete | View Details |
| 22 | 2500060-T0301 Battery box | Battery box * PART NO LONGER AVAILABLE * | 1 | $23.65 | Obsolete | View Details |
| 23 | 2070710-T0301 Bracket | Bracket | 1 | $9.61 | Obsolete | View Details |
| 24 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv M6 x 12mm | 2 | $1.72 | Available to order | 2 |
| 25 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv M6 x 16mm | 1 | $0.97 | Available to order | 1 |
| 26 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 1 | $2.00 | Available to order | 1 |
| 28 | T2501740 Battery Strap | Battery Strap | 1 | $9.97 | Available to order | 1 |
| 29 | T2300335 Mudguard extension | Mudguard extension DE,SE,AR,GR,HK,PT,CH,JP | 1 | $43.00 | Obsolete | View Details |
| 30 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv M5 x 16mm Small head DE,SE,AR,GR,HK,PT,CH,JP | 3 | $6.73 | Available to order | 3 |
| 31 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 DE,SE,AR,GR,HK,PT,CH,JP | 3 | $2.25 | Available to order | 3 |
| 32 | 3550060-T0301 Washer, Plastic, 14.3 x 2.0 | Washer, Plastic, 14.3 x 2.0 | 2 | $0.70 | Obsolete | View Details |
| 33 | T3660117 Foam Pad, 30 x 90 x 13 | Foam Pad, 30 x 90 x 13 3175 » | 1 | $1.19 | Obsolete | View Details |
| 34 | T2300359 Mudguard flap | Mudguard flap | 1 | $31.64 | Backorder — Late August 2026 | 1 |
| 35 | T3300062 Pop Rivet | Pop Rivet | 3 | $2.25 | Available to order | 3 |
| 36 | T3300061 Pop rivet | Pop rivet | 5 | $1.22 | Obsolete | View Details |
| 37 | T3451260 Firtree, 5 x 11mm, Blk | Firtree, 5 x 11mm, Blk | 2 | $1.40 | Available to order | 2 |
