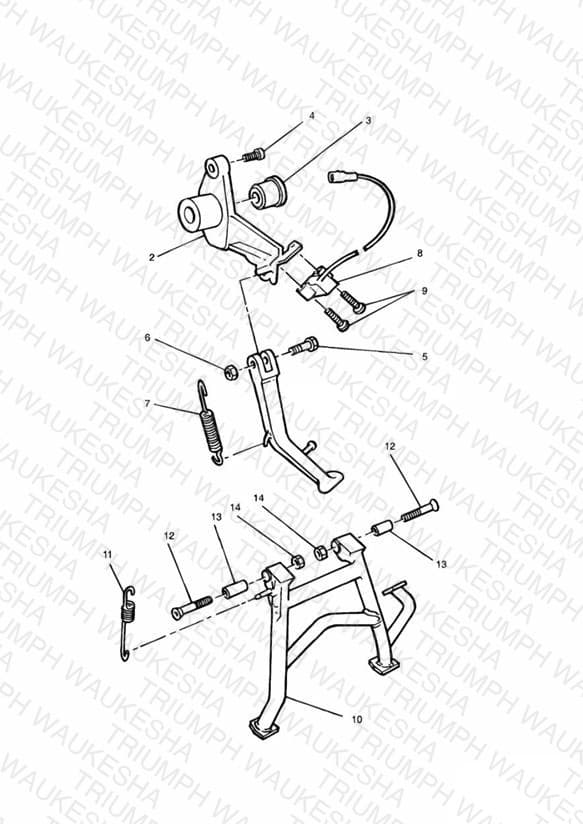

Side Stand
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 2080171-T0301 Bracket pivot | Bracket pivot » 2335 Not available, use 2080170-T0301 & longer bolt 3330270-T0301 | 1 | $157.48 | Obsolete | View Details |
| 3 | 2070621-T0301 Boss | Boss » 2335 Not available, use 2080170-T0301 & longer bolt 3330270-T0301 | 1 | $17.84 | Obsolete | View Details |
| 4 | 3050001-T0301 Capscrew | Capscrew M8 x 20mm | 1 | $3.02 | Obsolete | View Details |
| 5 | 3330519-T0301 Shouldered Bolt | Shouldered Bolt M10 ** PART NO LONGER AVAILABLE ** | 1 | $5.89 | Obsolete | View Details |
| 6 | T3350134 Locknut, M10 x 1.25 | Locknut, M10 x 1.25 | 1 | $2.70 | Available to order | 1 |
| 7 | T2080808 Spring, Sidestand | Spring, Sidestand | 1 | $11.33 | Available to order | 1 |
| 8 | 2080019-T0301 Switch, Sidestand | Switch, Sidestand | 1 | $60.65 | Available to order | 1 |
| 9 | 3050029-T0301 Capscrew | Capscrew » 4901 M5 x 25mm | 2 | $5.92 | Obsolete | View Details |
| 9 | T3331039 Screw, Tpt Tx, P/HD, M6x12, Slv | Screw, Tpt Tx, P/HD, M6x12, Slv 4902 » M6 | 2 | $0.68 | Obsolete | View Details |
| 10 | 2080067-T0301 Centre stand | Centre stand » 4901 | 1 | $104.49 | Out of Stock | Notify Me |
| 10 | T2080710 Centre Stand Assy, Black, Std | Centre Stand Assy, Black, Std 4902 » | 1 | $197.74 | Available to order | 1 |
| 11 | 2079310-T0301 Spring | Spring PART NO LONGER AVAILABLE | 2 | $2.96 | Obsolete | View Details |
| 12 | 3330290-T0301 Screw, Torx | Screw, Torx M10 x 65mm | 2 | $6.47 | Obsolete | View Details |
| 13 | 2079235-T0301 Sleeve | Sleeve | 2 | $5.58 | Obsolete | View Details |
| 14 | 3350030-T0301 Nut m10 | Nut m10 | 2 | $1.18 | Available to order | 2 |
