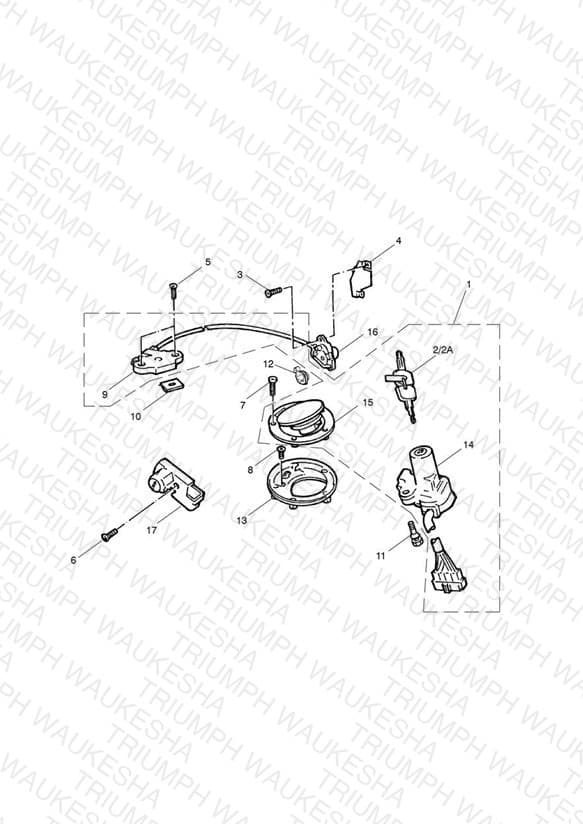

Ignition Switch/Seat Lock
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2500790-T0301 Switch and lock set | Switch and lock set Includes 2 keys | 1 | $442.70 | Obsolete | View Details |
| 1 | T2500900 Switch and lock set | Switch and lock set US CAL - Includes 2 keys | 1 | $488.91 | Obsolete | View Details |
| 2 | 2500034-T0301 Key, Uncut | Key, Uncut Supplied as single - Key blank to be cut by dealer | 1 | $21.86 | Available to order | 1 |
| 2 | T2500076 Key, Cut | Key, Cut Supplied as pair - Customer must supply key number with order | 1 | $79.02 | Out of Stock | Notify Me |
| 3 | 3330524-T0301 Taptite screw | Taptite screw M6 x 16mm | 2 | $3.33 | Obsolete | View Details |
| 4 | 2070730-T0301 Security plate | Security plate | 1 | $8.41 | Obsolete | View Details |
| 5 | T3330184 Screw, C'sunk Tx, M6 x 25, Slv | Screw, C'sunk Tx, M6 x 25, Slv | 2 | $1.27 | Available to order | 2 |
| 6 | 3330050-T0301 Screw | Screw M5 x 18mm | 2 | $0.67 | Available to order | 2 |
| 7 | 3050045-T0301 Screw | Screw M5 x 20mm | 3 | $2.48 | Out of Stock | Notify Me |
| 8 | 3330028-T0301 Screw | Screw M5 x 8mm | 1 | $0.43 | Obsolete | View Details |
| 9 | 2080101-T0301 Striker | Striker | 1 | $13.45 | Available to order | 1 |
| 10 | T3351021 Nut, Captive, M6, Slv | Nut, Captive, M6, Slv | 2 | $1.79 | Available to order | 2 |
| 11 | T3330327 Bolt, Shear, M6 x 22, Enc | Bolt, Shear, M6 x 22, Enc | 2 | $5.24 | Available to order | 2 |
| 12 | T2505000 Actuating lever | Actuating lever | 1 | $10.55 | Obsolete | View Details |
| 13 | T2401712 Surround, Filler Cap | Surround, Filler Cap | 1 | $33.24 | Available to order | 1 |
| 14 | 2500038-T0301 Switch/Lock Assy Ign | Switch/Lock Assy Ign Includes 2 keys | 1 | $235.74 | Available to order | 1 |
| 15 | 2400004-T0301 Fuel filler cap | Fuel filler cap Not US CAL, Includes 2 Keys | 1 | $176.54 | Obsolete | View Details |
| 15 | T2400032 Fuel filler cap | Fuel filler cap US CAL, Includes 2 Keys | 1 | $176.54 | Obsolete | View Details |
| 16 | T2503000 Seat lock | Seat lock Includes 2 keys | 1 | $113.31 | Obsolete | View Details |
| 17 | T2503002 Helmet lock | Helmet lock Includes 2 keys Part not serviced in US | 1 | $40.49 | Obsolete | View Details |
