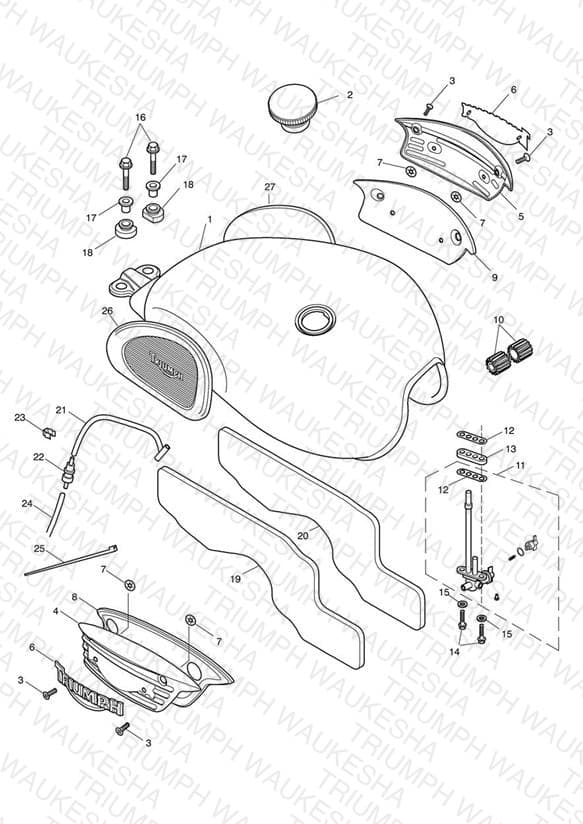

Fuel Tank & Fittings >317246
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2400184-NF Fuel Tank Assy | Fuel Tank Assy Fusion White/Caspian Blue - PART NO LONGER AVAILABLE | 1 | $1842.75 | Obsolete | View Details |
| 1 | T2400183-NF Fuel Tank Assy | Fuel Tank Assy Fusion White/Tornado Red; Includes knee pads, items 26 & 27 | 1 | $2587.81 | Backorder — Late August 2026 | 1 |
| 1 | T2400184-MH Fuel Tank Assy | Fuel Tank Assy Aluminium Silver/Roulette Green 281466-F2 / 279279-F4 > | 1 | $981.38 | Obsolete | View Details |
| 2 | T2400597 Fuel Filler Cap, Screw Type | Fuel Filler Cap, Screw Type | 1 | $110.28 | Available to order | 1 |
| 3 | T3330529 Screw, Raised C'sunk, Trx | Screw, Raised C'sunk, Trx | 4 | $6.14 | Available to order | 4 |
| 4 | T3900341 Badge, Fuel Tank, RH | Badge, Fuel Tank, RH * PART NO LONGER AVAILABLE * | 1 | $59.10 | Obsolete | View Details |
| 5 | T3900340 Badge, Fuel Tank, LH | Badge, Fuel Tank, LH | 1 | $60.87 | Available to order | 1 |
| 6 | T3900078 Logo, Fuel Tank Badge | Logo, Fuel Tank Badge * PART NO LONGER AVAILABLE * | 1 | $19.34 | Obsolete | View Details |
| 7 | T3500071 Spiderfix, Push On Fastener | Spiderfix, Push On Fastener | 4 | $1.13 | Available to order | 4 |
| 8 | T3660140 Gasket, Tank Badge, RH | Gasket, Tank Badge, RH | 1 | $10.71 | Available to order | 1 |
| 9 | T3660141 Gasket, Tank Badge, LH | Gasket, Tank Badge, LH | 1 | $10.71 | Available to order | 1 |
| 10 | T2400603 Bush, Tank Mount | Bush, Tank Mount | 2 | $2.63 | Available to order | 2 |
| 11 | T2400150 Fuel Tap Assy, T309RT | Fuel Tap Assy, T309RT | 1 | $123.56 | Available to order | 1 |
| 12 | 2400086-T0301 Seal, Fuel Tap (EN) | Seal, Fuel Tap (EN) | 2 | $4.12 | Available to order | 2 |
| 13 | T2400151 Spacer, Fuel Tap Assy, T309RT | Spacer, Fuel Tap Assy, T309RT * PART NO LONGER AVAILABLE * | 1 | $38.02 | Obsolete | View Details |
| 14 | T3331102 Bolt, HHF, M6 X 25, S/S | Bolt, HHF, M6 X 25, S/S * PART NO LONGER AVAILABLE * | 2 | $1.74 | Obsolete | View Details |
| 15 | 3550150-T0301 Washer, Sealing, 11.5x6.4x0.64 | Washer, Sealing, 11.5x6.4x0.64 | 2 | $1.47 | Available to order | 2 |
| 16 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv | 2 | $2.48 | Available to order | 2 |
| 17 | T3010042 Flanged Sleeve, M6 x 10 x 18 | Flanged Sleeve, M6 x 10 x 18 | 2 | $1.79 | Available to order | 2 |
| 18 | T2400602 Grommet, Long, Tank Rear Mount | Grommet, Long, Tank Rear Mount | 2 | $2.10 | Available to order | 2 |
| 19 | T2301091 Heat Pad, Fuel Tank, RH | Heat Pad, Fuel Tank, RH | 1 | $57.60 | Available to order | 1 |
| 20 | T2301092 Heat Pad, Fuel Tank, LH | Heat Pad, Fuel Tank, LH | 1 | $57.60 | Available to order | 1 |
| 21 | T2401560 Kit, Roll Over Valve | Kit, Roll Over Valve > 265150 | 1 | $56.07 | Available to order | 1 |
| 21 | T2401550 Hose, Tank Breather | Hose, Tank Breather 265151 > | 1 | $15.19 | Available to order | 1 |
| 22 | T2400074 Roll Over Valve | Roll Over Valve 265151 > | 1 | $40.30 | Available to order | 1 |
| 23 | T3700233 Clip, Brake Hose | Clip, Brake Hose | 1 | $5.88 | Available to order | 1 |
| 24 | T2400774 Hose | Hose | 1 | $15.19 | Available to order | 1 |
| 25 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
| 26 | T2400159 Knee Pad, Fuel Tank, RH | Knee Pad, Fuel Tank, RH | 1 | $64.62 | Available to order | 1 |
| 27 | T2400158 Knee Pad, Fuel Tank, LH | Knee Pad, Fuel Tank, LH | 1 | $64.62 | Available to order | 1 |
