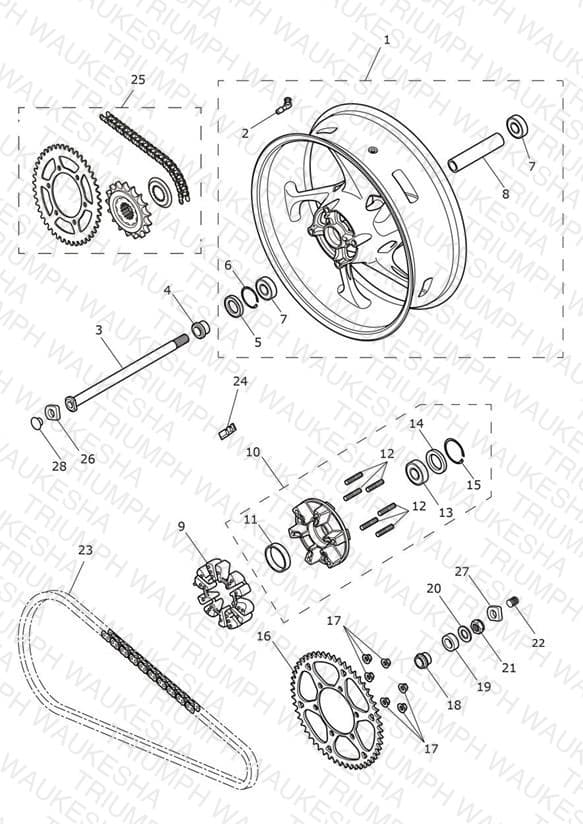

Rear Wheel
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2011487 Rear Wheel Assembly, Spares | Rear Wheel Assembly, Spares | 1 | $898.04 | Out of Stock | Notify Me |
| 2 | T2006635 Valve Assy, Alum, 90, Black | Valve Assy, Alum, 90, Black | 1 | $16.04 | Available to order | 1 |
| 3 | T2015060 Rear Wheel Spindle | Rear Wheel Spindle | 1 | $96.97 | Available to order | 1 |
| 4 | T2012048 Top Hat Spacer, 22.4 Long | Top Hat Spacer, 22.4 Long | 1 | $11.32 | Backorder — Late September 2026 | 1 |
| 5 | T3600701 Oil Seal, DC 28 47 7 | Oil Seal, DC 28 47 7 | 1 | $22.52 | Backorder — Late August 2026 | 1 |
| 6 | T3500402 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $0.89 | Available to order | 1 |
| 7 | T3800703 Bearing, Ball, 20 47 14 | Bearing, Ball, 20 47 14 | 2 | $45.80 | Available to order | 2 |
| 8 | T2004204 Spacer, Wheel | Spacer, Wheel | 1 | $48.49 | Available to order | 1 |
| 9 | T2010650 Cush Drive Rubber | Cush Drive Rubber | 1 | $90.30 | Available to order | 1 |
| 10 | T2010601 Sprocket Carrier Assy, Graphite | Sprocket Carrier Assy, Graphite | 1 | $607.34 | Available to order | 1 |
| 11 | T2010630 Bearing, Ring | Bearing, Ring | 1 | $54.20 | Backorder — Mid August 2026 | 1 |
| 12 | T2012144 Stud, Sprocket Carrier | Stud, Sprocket Carrier | 6 | $7.62 | Available to order | 6 |
| 13 | T3800029 Bearing Ball, 25 52 15 | Bearing Ball, 25 52 15 | 1 | $16.31 | Available to order | 1 |
| 14 | T3600073 Oil Seal, 35 52 6 | Oil Seal, 35 52 6 | 1 | $21.86 | Available to order | 1 |
| 15 | T3500203 Circlip, Int, 52 x 2 | Circlip, Int, 52 x 2 | 1 | $16.04 | Available to order | 1 |
| 16 | T2011776 Rear Sprocket, 48T, 520 | Rear Sprocket, 48T, 520 | 1 | $123.28 | Available to order | 1 |
| 17 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 6 | $4.16 | Available to order | 6 |
| 18 | T2010492 Spacer, Stepped | Spacer, Stepped | 1 | $19.37 | Available to order | 1 |
| 19 | T2011920 Spacer Tube, 35 x 20 x 11 | Spacer Tube, 35 x 20 x 11 | 1 | $8.01 | Out of Stock | Notify Me |
| 20 | T3555035 Washer, 19 x 34 x 3 | Washer, 19 x 34 x 3 | 1 | $1.27 | Available to order | 1 |
| 21 | T3350118 Locknut, Plain, M18 | Locknut, Plain, M18 | 1 | $11.56 | Available to order | 1 |
| 22 | T3450765 Bung, Hole Dia 9-11mm, Blk | Bung, Hole Dia 9-11mm, Blk | 1 | $2.85 | Out of Stock | Notify Me |
| 23 | T2012390 Chain, Spares, 520VM4, 118L | Chain, Spares, 520VM4, 118L Contains Chain & Split Link T2011330 | 1 | $191.82 | Backorder — Early December 2026 | 1 |
| 23 | T2011330 Master Link, ZJ Type, 520 | Master Link, ZJ Type, 520 | 1 | $29.24 | Available to order | 1 |
| 24 | T2006688 Wheel Weight, 5 Gram, Black | Wheel Weight, 5 Gram, Black | 1 | $11.01 | Available to order | 1 |
| 25 | T2017526 Chain & Sprocket Kit | Chain & Sprocket Kit | 1 | $241.69 | Out of Stock | Notify Me |
| 26 | T2011062 Adjuster, Rear Wheel | Adjuster, Rear Wheel | 1 | $15.27 | Available to order | 1 |
| 27 | T2011052 Adjuster, Rear Wheel | Adjuster, Rear Wheel | 1 | $15.27 | Available to order | 1 |
| 28 | T3450063 Bung | Bung | 1 | $6.45 | Available to order | 1 |
