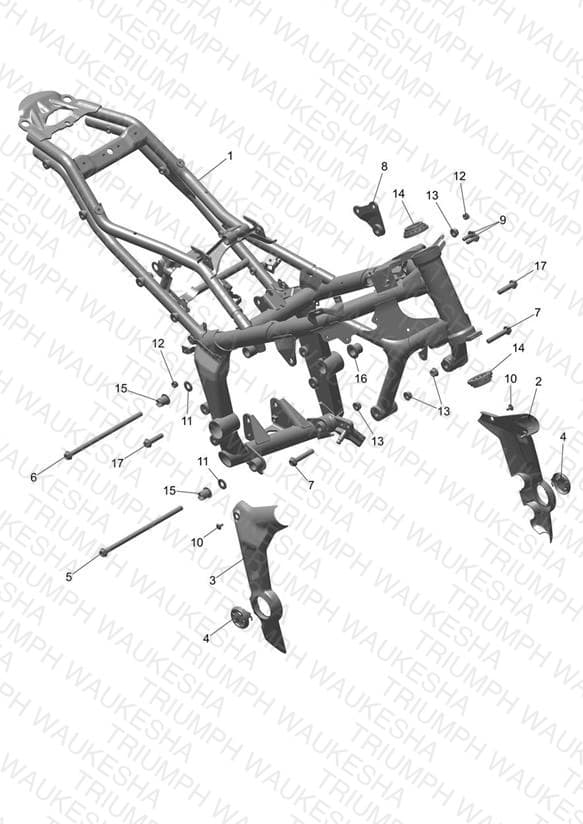

Main Frame Assembly
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2079301 Frame Assembly, AU | Frame Assembly, AU | 1 | $1995.63 | Out of Stock | Notify Me |
| 1 | T2079302 Frame Assembly, BR | Frame Assembly, BR | 1 | $1995.63 | Out of Stock | Notify Me |
| 1 | T2079303 Frame Assembly, CA | Frame Assembly, CA | 1 | $1995.63 | Out of Stock | Notify Me |
| 1 | T2079304 Frame Assembly, CN | Frame Assembly, CN | 1 | $1995.63 | Out of Stock | Notify Me |
| 1 | T2079305 Frame Assembly, ROW | Frame Assembly, ROW | 1 | $1995.63 | Out of Stock | Notify Me |
| 1 | T2079307 Frame Assembly, UC | Frame Assembly, UC | 1 | $1995.63 | Out of Stock | Notify Me |
| 1 | T2079308 Frame Assembly, KR | Frame Assembly, KR | 1 | $1995.63 | Out of Stock | Notify Me |
| 1 | T2079309 Frame Assembly, XA | Frame Assembly, XA | 1 | $1995.63 | Out of Stock | Notify Me |
| 2 | T2073061 Cover, Outrigger LH, Mldg | Cover, Outrigger LH, Mldg | 1 | $15.26 | Available to order | 1 |
| 3 | T2073062 Cover, Outrigger RH, Mldg | Cover, Outrigger RH, Mldg | 1 | $34.05 | Available to order | 1 |
| 4 | T2076717 Cover, Swingarm Pivot | Cover, Swingarm Pivot | 2 | $11.79 | Available to order | 2 |
| 5 | T3151046 Bolt, HHF, M10 x 225, Slv | Bolt, HHF, M10 x 225, Slv | 1 | $22.36 | Available to order | 1 |
| 6 | T3151051 Bolt, HHF, M10 x 210, Slv | Bolt, HHF, M10 x 210, Slv | 1 | $8.68 | Available to order | 1 |
| 7 | T3205766 Bolt, HHF, Lghtd, M10 x 55, Slv | Bolt, HHF, Lghtd, M10 x 55, Slv | 2 | $6.14 | Available to order | 2 |
| 8 | T2074908 Bracket, Cyl Hd, LHR | Bracket, Cyl Hd, LHR | 1 | $19.10 | Out of Stock | Notify Me |
| 9 | T3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | 2 | $1.62 | Available to order | 2 |
| 10 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 2 | $5.02 | Available to order | 2 |
| 11 | T3555029 Washer, 10.5 x 23 x 2 | Washer, 10.5 x 23 x 2 | 2 | $2.74 | Available to order | 2 |
| 12 | T3020131 Grommet, 9 x 2 x 6 | Grommet, 9 x 2 x 6 | 2 | $2.00 | Available to order | 2 |
| 13 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 4 | $4.16 | Available to order | 4 |
| 14 | T3800091 Bearing, Sac | Bearing, Sac | 2 | $33.95 | Available to order | 2 |
| 15 | T2076543 Frame Adjuster, M18 | Frame Adjuster, M18 | 2 | $8.88 | Out of Stock | Notify Me |
| 16 | T2051846 Swingarm Pivot Adjuster | Swingarm Pivot Adjuster | 1 | $20.10 | Out of Stock | Notify Me |
| 17 | T3205841 Bolt, HHF, Lghtd, M10 x 40, Slv | Bolt, HHF, Lghtd, M10 x 40, Slv | 2 | $2.85 | Available to order | 2 |
