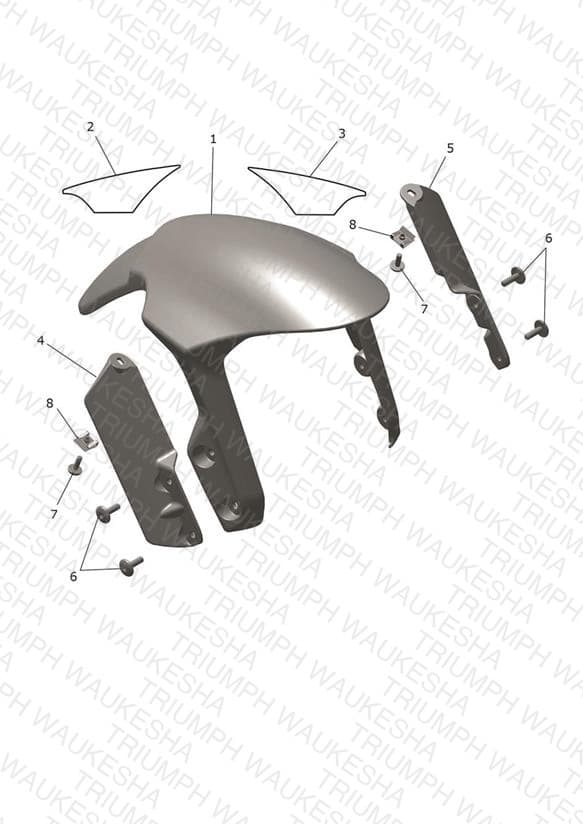

Front Mudguard
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2313725-CU Front Mudguard, Carnival Red | Front Mudguard, Carnival Red | 1 | $136.49 | Out of Stock | Notify Me |
| 1 | T2313725-LM Front Mudguard, Ash Grey | Front Mudguard, Ash Grey | 1 | $136.49 | Available to order | 1 |
| 1 | T2313725-PG Front Mudguard, Jet Black | Front Mudguard, Jet Black | 1 | $136.49 | Out of Stock | Notify Me |
| 2 | T2313729 Decal, Front Mudguard, RH | Decal, Front Mudguard, RH Included with Red Mudguards | 1 | $14.36 | Backorder — Early August 2026 | 1 |
| 2 | T2313727 Decal, Front Mudguard, RH | Decal, Front Mudguard, RH Included with Grey Mudguards | 1 | $14.36 | Out of Stock | Notify Me |
| 3 | T2313731 Decal, Front Mudguard, LH | Decal, Front Mudguard, LH Included with Red Mudguards | 1 | $14.36 | Backorder — Early August 2026 | 1 |
| 3 | T2313728 Decal, Front Mudguard, LH | Decal, Front Mudguard, LH Included with Grey Mudguards | 1 | $14.36 | Out of Stock | Notify Me |
| 4 | T2320003 Fork Protector, Fork, RH | Fork Protector, Fork, RH | 1 | $47.56 | Available to order | 1 |
| 5 | T2320002 Fork Protector, Fork, LH | Fork Protector, Fork, LH | 1 | $47.56 | Backorder — Mid August 2026 | 1 |
| 6 | T3330312 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 4 | $3.59 | Backorder — Late August 2026 | 4 |
| 7 | T3330945 Screw, But/Hd, M5 x 16, Blk | Screw, But/Hd, M5 x 16, Blk | 2 | $8.46 | Available to order | 2 |
| 8 | T3351002 Nut, Captive, U-Type, M5, Slv | Nut, Captive, U-Type, M5, Slv | 2 | $2.37 | Available to order | 2 |
