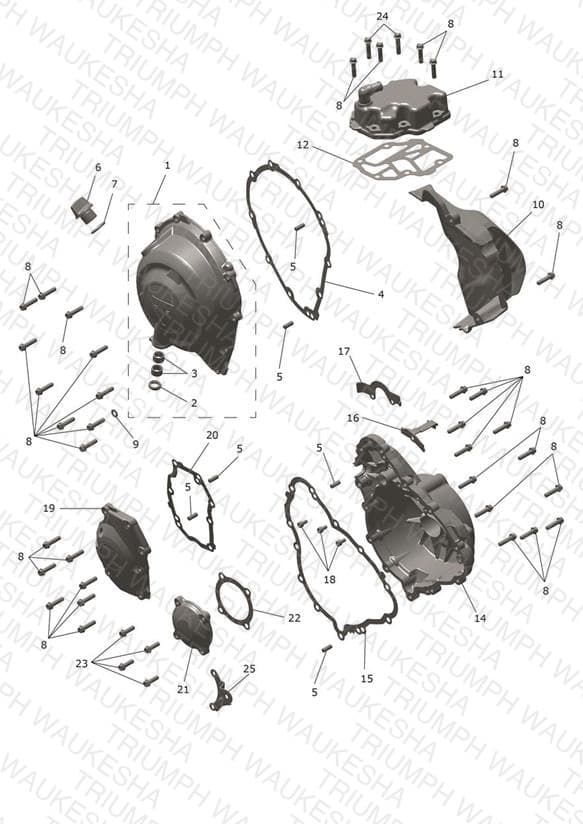

Engine Covers
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1266016 Clutch Cover Assembly, Grey | Clutch Cover Assembly, Grey | 1 | $298.14 | Available to order | 1 |
| 2 | T3600095 Dust Seal | Dust Seal | 1 | $2.25 | Available to order | 1 |
| 3 | T3800110 Roller Bearing, HK 1210 | Roller Bearing, HK 1210 | 2 | $6.65 | Available to order | 2 |
| 4 | T1260258 Clutch Cover Gasket | Clutch Cover Gasket | 1 | $22.41 | Available to order | 1 |
| 5 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 6 | $1.13 | Available to order | 6 |
| 6 | T1260249 Oil Filler Cap | Oil Filler Cap | 1 | $21.39 | Available to order | 1 |
| 7 | T3600163 O Ring, ID 19 x 3 | O Ring, ID 19 x 3 | 1 | $12.61 | Available to order | 1 |
| 8 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 35 | $2.46 | Available to order | 35 |
| 9 | T3550146 Washer, 6.4 x 12 x 1, Copper | Washer, 6.4 x 12 x 1, Copper | 1 | $1.40 | Available to order | 1 |
| 10 | T1261318 Sprocket Cover | Sprocket Cover | 1 | $26.65 | Available to order | 1 |
| 11 | T1266000 Breather Cover | Breather Cover | 1 | $79.92 | Backorder — Mid August 2026 | 1 |
| 12 | T1260825 Breather Cover Gasket | Breather Cover Gasket | 1 | $26.16 | Available to order | 1 |
| 14 | T1265495 Alternator Cover | Alternator Cover | 1 | $186.47 | Available to order | 1 |
| 15 | T1260838 Gasket, Alternator Cover | Gasket, Alternator Cover | 1 | $36.56 | Available to order | 1 |
| 16 | T1260365 Bracket, Cable Guide, ACG Stator | Bracket, Cable Guide, ACG Stator | 1 | $17.37 | Available to order | 1 |
| 17 | T1260366 Bracket, Cable Guide, VR Sensor | Bracket, Cable Guide, VR Sensor | 1 | $18.25 | Available to order | 1 |
| 18 | T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc | Screw, Cap/Hd, M5 x 10, Slv, Enc | 3 | $3.04 | Available to order | 3 |
| 19 | T1269047 Crank Cover | Crank Cover | 1 | $203.41 | Available to order | 1 |
| 20 | T1260437 Crank Cover Gasket | Crank Cover Gasket | 1 | $17.57 | Available to order | 1 |
| 21 | T1260556 Balancer Cover, Wet Paint | Balancer Cover, Wet Paint | 1 | $201.51 | Available to order | 1 |
| 22 | T1260267 Balancer Cover Gasket | Balancer Cover Gasket | 1 | $9.10 | Available to order | 1 |
| 23 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 4 | $4.55 | Available to order | 4 |
| 24 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv | 2 | $2.48 | Available to order | 2 |
