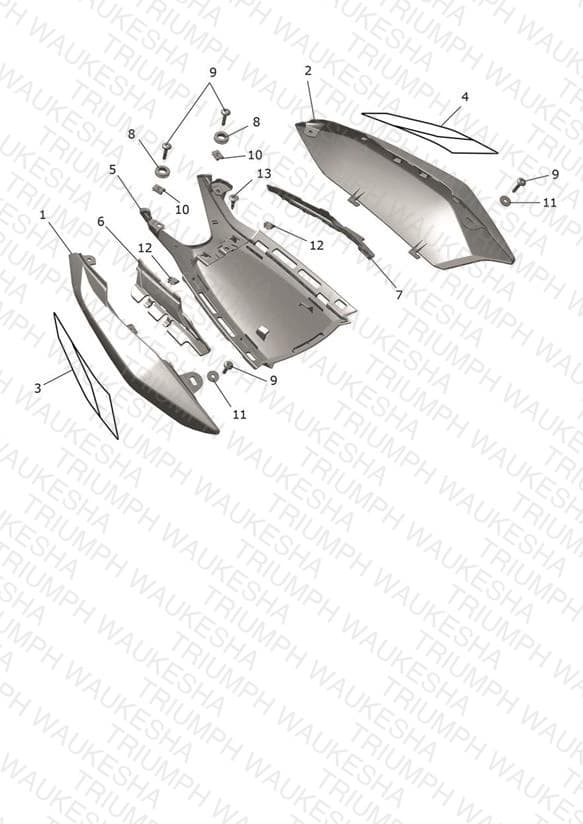

Rear Bodywork
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2310934-CU Rear Bodywork, RH, Carnival Red | Rear Bodywork, RH, Carnival Red | 1 | $208.34 | Available to order | 1 |
| 1 | T2310934-LM Rear Bodywork, RH, Ash Grey | Rear Bodywork, RH, Ash Grey | 1 | $208.34 | Out of Stock | Notify Me |
| 1 | T2310934-PG Rear Bodywork, Jet Black | Rear Bodywork, Jet Black | 1 | $208.34 | Out of Stock | Notify Me |
| 2 | T2310944-CU Rear Bodywork, LH, Carnival Red | Rear Bodywork, LH, Carnival Red | 1 | $208.34 | Out of Stock | Notify Me |
| 2 | T2310944-LM Rear Bodywork, LH, Ash Grey | Rear Bodywork, LH, Ash Grey | 1 | $208.34 | Out of Stock | Notify Me |
| 2 | T2310944-PG Rear Bodywork, LH, Jet Black | Rear Bodywork, LH, Jet Black | 1 | $208.34 | Out of Stock | Notify Me |
| 3 | T2316409 Decal, Rear B/Work, RH | Decal, Rear B/Work, RH Included with Red Panels | 1 | $14.36 | Out of Stock | Notify Me |
| 3 | T2316407 Decal, Rear B/Work, RH | Decal, Rear B/Work, RH Included with Grey Panels | 1 | $14.36 | Out of Stock | Notify Me |
| 4 | T2316408 Decal, Rear B/Work, LH | Decal, Rear B/Work, LH Included with Red Panels | 1 | $14.36 | Out of Stock | Notify Me |
| 4 | T2316406 Decal, Rear B/Work, LH | Decal, Rear B/Work, LH Included with Grey Panels | 1 | $14.36 | Out of Stock | Notify Me |
| 5 | T2311458 Undertray Moulding | Undertray Moulding | 1 | $14.36 | Backorder — Late August 2026 | 1 |
| 6 | T2310932 Infill, Undertray, Mldg, RH | Infill, Undertray, Mldg, RH | 1 | $19.50 | Available to order | 1 |
| 7 | T2310942 Infill, Undertray, Mldg, LH | Infill, Undertray, Mldg, LH | 1 | $38.99 | Available to order | 1 |
| 8 | T3020065 Grommet | Grommet | 2 | $2.95 | Backorder — Early August 2026 | 2 |
| 9 | T3330429 Screw, Skt Hd, M5 x 25, SS | Screw, Skt Hd, M5 x 25, SS | 4 | $2.20 | Available to order | 4 |
| 10 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $4.55 | Available to order | 2 |
| 11 | T3550286 Washer, 5.3 x 18 x 1.6 | Washer, 5.3 x 18 x 1.6 | 2 | $1.62 | Backorder — Early September 2026 | 2 |
| 12 | T3700282 S Panel Clip, 2mm | S Panel Clip, 2mm | 2 | $1.44 | Available to order | 2 |
| 13 | T3701150 Plastic Rivet, Push Release | Plastic Rivet, Push Release | 1 | $0.97 | Available to order | 1 |
