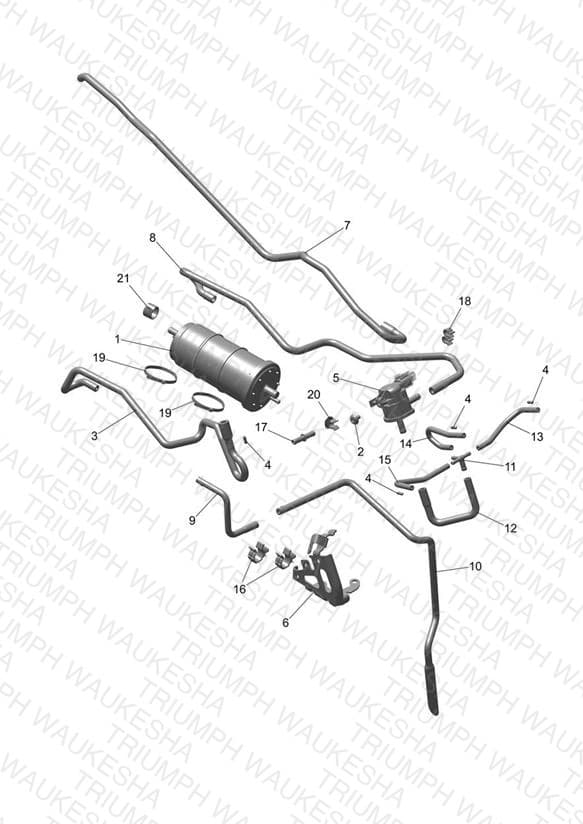

Evap System
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2409017 Carbon Cannister, 137mm Length | Carbon Cannister, 137mm Length | 1 | $112.13 | Available to order | 1 |
| 2 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 1 | $3.90 | Available to order | 1 |
| 3 | T2409145 Hose, Tank to Evap | Hose, Tank to Evap | 1 | $18.03 | Out of Stock | Notify Me |
| 4 | T1241890 Restrictor, Purge, Evap | Restrictor, Purge, Evap | 1 | $11.32 | Available to order | 1 |
| 5 | T1248990 Purge Valve | Purge Valve | 1 | $66.52 | Available to order | 1 |
| 6 | T2403439 Bracket, Purge Valve | Bracket, Purge Valve | 1 | $8.88 | Out of Stock | Notify Me |
| 7 | T2404153 Hose, Evap, Breather | Hose, Evap, Breather | 1 | $34.26 | Out of Stock | Notify Me |
| 8 | T2409140 Hose, Canister to Valve | Hose, Canister to Valve | 1 | $34.11 | Out of Stock | Notify Me |
| 9 | T2403697 Hose, Evap, Drain Upper | Hose, Evap, Drain Upper | 1 | $38.04 | Out of Stock | Notify Me |
| 10 | T2403714 Hose, Evap, Drain Lower | Hose, Evap, Drain Lower | 1 | $38.04 | Out of Stock | Notify Me |
| 11 | T1242929 Connector, 4 Way | Connector, 4 Way | 1 | $10.90 | Available to order | 1 |
| 12 | T2409147 Hose, Purge to Manifold | Hose, Purge to Manifold | 1 | $14.61 | Out of Stock | Notify Me |
| 13 | T1292075 Hose, Throttle Body, Cyl 1 | Hose, Throttle Body, Cyl 1 | 4 | $3.24 | Available to order | 4 |
| 14 | T1292076 Hose, Throttle Body, Cyl 2 | Hose, Throttle Body, Cyl 2 | 4 | $3.24 | Out of Stock | Notify Me |
| 15 | T1292077 Hose, Throttle Body, Cyl 3 | Hose, Throttle Body, Cyl 3 | 2 | $3.24 | Available to order | 2 |
| 16 | T3700072 Cable Clip, Dia 15-16mm BK | Cable Clip, Dia 15-16mm BK | 1 | $4.12 | Available to order | 1 |
| 17 | T2103011 Spigot, Straight | Spigot, Straight | 1 | $8.99 | Available to order | 1 |
| 18 | T2040811 Twin Clip, Brake Hose | Twin Clip, Brake Hose | 1 | $2.63 | Available to order | 1 |
| 19 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 2 | $0.95 | Available to order | 2 |
| 20 | T3700233 Clip, Brake Hose | Clip, Brake Hose | 1 | $5.88 | Available to order | 1 |
| 21 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 1 | $3.90 | Available to order | 1 |
