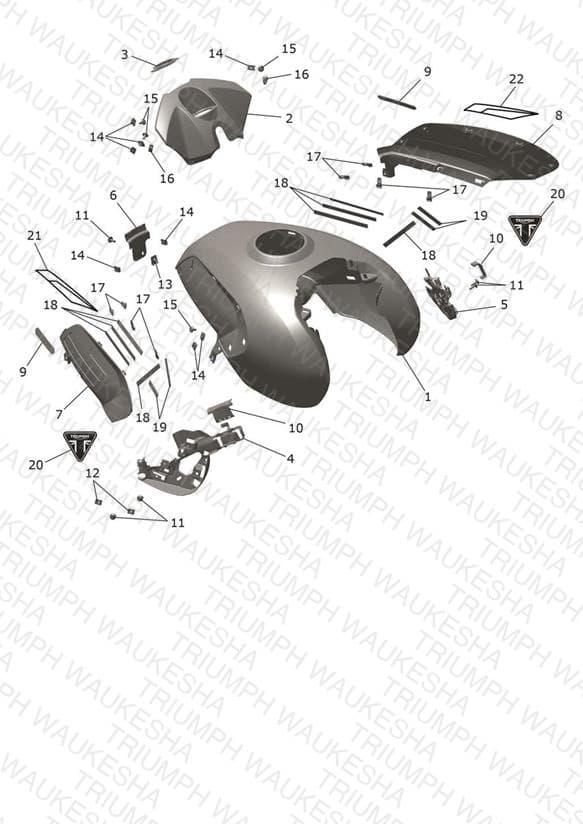

Fuel Tank Bodywork
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2405433-LM Fuel Tank Cover, Ash Grey | Fuel Tank Cover, Ash Grey | 1 | $459.00 | Available to order | 1 |
| 1 | T2405433-CU Fuel Tank Cover, Carnival Red | Fuel Tank Cover, Carnival Red | 1 | $459.00 | Backorder — Early August 2026 | 1 |
| 1 | T2405433-PG Fuel Tank Cover, Jet Black | Fuel Tank Cover, Jet Black | 1 | $432.38 | Backorder — Mid August 2026 | 1 |
| 2 | T2402947 Ignition Barrel Shroud | Ignition Barrel Shroud | 1 | $21.56 | Out of Stock | Notify Me |
| 3 | T2403508 Ignition Barrel Grommet | Ignition Barrel Grommet | 1 | $4.55 | Available to order | 1 |
| 4 | T2311705 Infill, Tank, RH | Infill, Tank, RH | 1 | $14.36 | Out of Stock | Notify Me |
| 5 | T2311704 Infill, Tank, LH | Infill, Tank, LH | 1 | $14.36 | Out of Stock | Notify Me |
| 6 | T2311641 Infill, Tank Cover, Rear, Mldg | Infill, Tank Cover, Rear, Mldg | 1 | $6.98 | Out of Stock | Notify Me |
| 7 | T2402946 Knee Pad, Fuel Tank, RH | Knee Pad, Fuel Tank, RH | 1 | $10.78 | Available to order | 1 |
| 8 | T2402945 Knee Pad, Fuel Tank, LH | Knee Pad, Fuel Tank, LH | 1 | $10.78 | Available to order | 1 |
| 9 | T2311554 Badge, Trident | Badge, Trident | 2 | $10.05 | Available to order | 2 |
| 10 | T2508899 Harness Cover, Headstock Mldg | Harness Cover, Headstock Mldg | 2 | $2.67 | Out of Stock | Notify Me |
| 11 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 5 | $4.92 | Available to order | 5 |
| 12 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.39 | Available to order | 2 |
| 13 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 1 | $2.48 | Available to order | 1 |
| 14 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 8 | $4.55 | Available to order | 8 |
| 15 | T3330289 Screw, But/Hd, TX, M5 x 16, Slv | Screw, But/Hd, TX, M5 x 16, Slv | 4 | $1.99 | Available to order | 4 |
| 16 | T3700290 Clip, Panel, Bayonet | Clip, Panel, Bayonet | 2 | $2.37 | Available to order | 2 |
| 17 | T2313085 Clip, Bodywork | Clip, Bodywork | 8 | $2.45 | Available to order | 8 |
| 18 | T3600607 Tape, Foam, Kneepad | Tape, Foam, Kneepad | 8 | $1.43 | Out of Stock | Notify Me |
| 19 | T3600606 Tape, Foam, Kneepad | Tape, Foam, Kneepad | 4 | $1.43 | Out of Stock | Notify Me |
| 20 | T2310473 Decal, Tank Badge | Decal, Tank Badge Fitted to All Bikes | 2 | $8.18 | Available to order | 2 |
| 21 | T2405438 Decal, Fuel Tank Cover, RH | Decal, Fuel Tank Cover, RH Fitted to Red Bikes | 1 | $21.56 | Out of Stock | Notify Me |
| 21 | T2405436 Decal, Fuel Tank Cover, RH | Decal, Fuel Tank Cover, RH Fitted to Grey Bikes | 1 | $21.56 | Available to order | 1 |
| 22 | T2405439 Decal, Fuel Tank Cover, LH | Decal, Fuel Tank Cover, LH Fitted to Red Bikes | 1 | $21.56 | Backorder — Late August 2026 | 1 |
| 22 | T2405437 Decal, Fuel Tank Cover, LH | Decal, Fuel Tank Cover, LH Fitted to Grey Bikes | 1 | $21.56 | Available to order | 1 |
