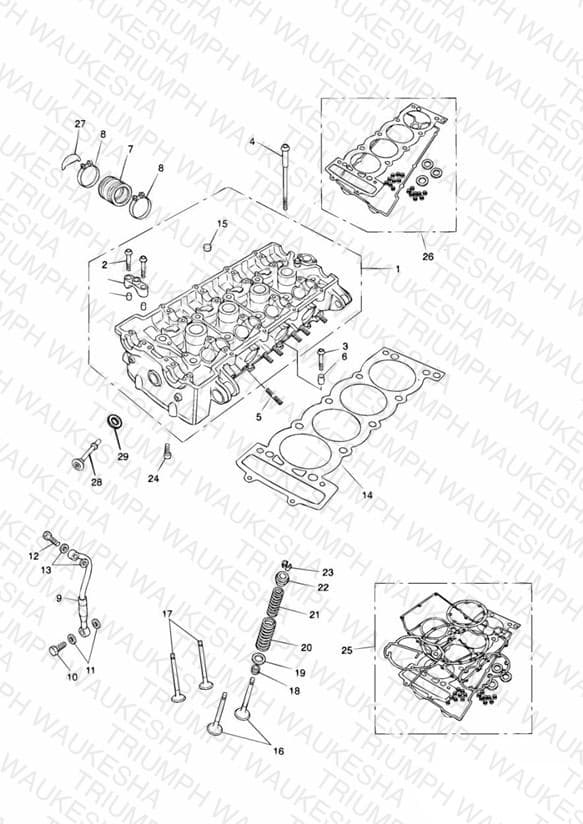

Cylinder Head and Valves 4 Cylinder Black
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1150804 Cylinder head assembly | Cylinder head assembly | 1 | $2332.69 | Obsolete | View Details |
| 2 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv | 20 | $3.70 | Available to order | 20 |
| 3 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 3 | $1.06 | Available to order | 3 |
| 4 | T1160359 Bolt cylinder head | Bolt cylinder head | 10 | $3.11 | Obsolete | View Details |
| 5 | T3100015 Stud, Shld, M8 x 36.5, Slv, Enc | Stud, Shld, M8 x 36.5, Slv, Enc | 8 | $2.74 | Available to order | 8 |
| 6 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 23 | $3.90 | Available to order | 23 |
| 7 | 1240080-T0301 Rubber | Rubber | 4 | $13.76 | Available to order | 4 |
| 8 | 3700003-T0301 Clip, Carb Rubber | Clip, Carb Rubber | 8 | $4.30 | Available to order | 8 |
| 9 | T1210533 Pipe oil feed | Pipe oil feed | 1 | $35.48 | Obsolete | View Details |
| 10 | T1210446 Banjo bolt | Banjo bolt M14 | 1 | $9.71 | Obsolete | View Details |
| 11 | T3550547 Washer, Cu, OD19 x ID14.2 | Washer, Cu, OD19 x ID14.2 | 2 | $4.32 | Available to order | 2 |
| 12 | T1210240 Banjo Bolt, M10 x28 | Banjo Bolt, M10 x28 | 1 | $13.18 | Available to order | 1 |
| 13 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 2 | $0.89 | Available to order | 2 |
| 14 | T1150885 Cylinder head gasket | Cylinder head gasket | 1 | $262.41 | Available to order | 1 |
| 15 | T3450005 Plug, NPSI 3/8 Dryseal | Plug, NPSI 3/8 Dryseal | 2 | $6.65 | Available to order | 2 |
| 16 | T1130165 Valve exhaust | Valve exhaust | 8 | $66.52 | Available to order | 8 |
| 17 | T1130160 Valve inlet | Valve inlet | 8 | $74.12 | Available to order | 8 |
| 18 | T3600004 Oil Seal | Oil Seal | 16 | $15.60 | Available to order | 16 |
| 19 | T3555019 Washer, 12.5 x 27 x 1 | Washer, 12.5 x 27 x 1 | 16 | $1.40 | Available to order | 16 |
| 20 | 1130115-T0301 Valve spring outer | Valve spring outer | 16 | $8.79 | Obsolete | View Details |
| 21 | T1130125 Valve spring inner | Valve spring inner | 16 | $8.79 | Obsolete | View Details |
| 22 | 1130050-T0301 Cup spring | Cup spring | 16 | $1.18 | Obsolete | View Details |
| 23 | T1135500 Collet, Valve, 5.5mm | Collet, Valve, 5.5mm | 32 | $1.16 | Available to order | 32 |
| 25 | T3990080 Gasket set | Gasket set Full | 1 | $385.39 | Backorder — Late August 2026 | 1 |
| 26 | T3990085 Gasket set | Gasket set Cylinder head | 1 | $304.54 | Out of Stock | Notify Me |
| 27 | 1240095-T0301 Plate | Plate DE - PART NO LONGER AVAILABLE | 4 | $0.69 | Obsolete | View Details |
| 28 | T3332578 Screw, Pan/HD, Shld, M6 x 65, Slv | Screw, Pan/HD, Shld, M6 x 65, Slv | 1 | $5.88 | Available to order | 1 |
| 29 | T1260309 Seal, Cam Cover, Screw, Twin Lip | Seal, Cam Cover, Screw, Twin Lip | 1 | $5.82 | Available to order | 1 |
