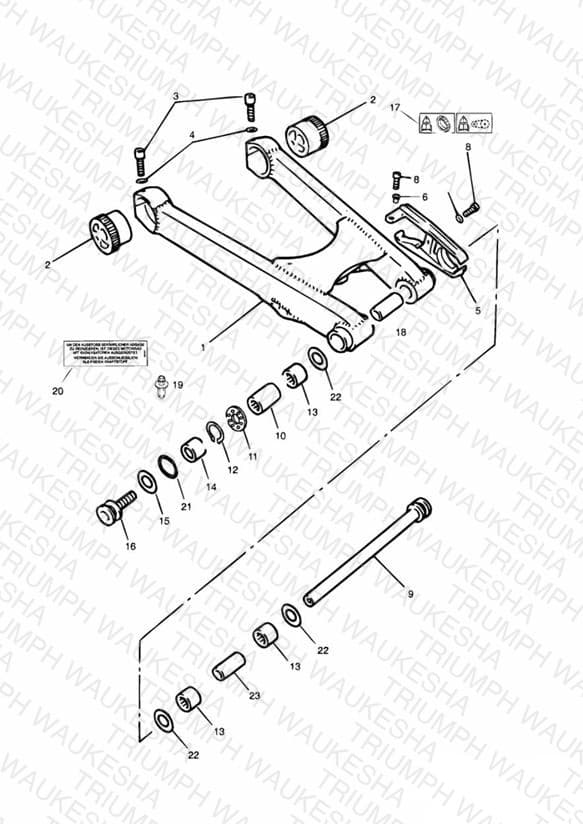

Swinging Arm 102932 »
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2056835 Swinging arm assembly | Swinging arm assembly Black Includes bearings etc - Items 10, 11, 12, 13, 14, 21, 22 & 23 | 1 | $1208.37 | Obsolete | View Details |
| 2 | T2010054 Eccentric adjuster | Eccentric adjuster Black | 2 | $30.13 | Obsolete | View Details |
| 3 | T3050064 Capscrew | Capscrew M10 x 40mm Black | 2 | $3.12 | Obsolete | View Details |
| 4 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 2 | $2.14 | Available to order | 2 |
| 5 | 2056920-T0301 Rubbing strip | Rubbing strip | 1 | $29.99 | Obsolete | View Details |
| 6 | T3010144 Flanged Sleeve, M6 x 9.5 x 10.5 | Flanged Sleeve, M6 x 9.5 x 10.5 | 2 | $4.01 | Available to order | 2 |
| 7 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 2 | $1.50 | Available to order | 2 |
| 8 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.13 | Available to order | 2 |
| 9 | T2056007 Spindle | Spindle | 1 | $80.70 | Obsolete | View Details |
| 10 | T2056992 Sleeve | Sleeve | 1 | $19.82 | Obsolete | View Details |
| 11 | T3800045 Ball bearing | Ball bearing | 1 | $14.68 | Available to order | 1 |
| 12 | T3500029 Circlip | Circlip | 1 | $3.54 | Available to order | 1 |
| 13 | T3800014 Roller bearing | Roller bearing | 3 | $14.85 | Available to order | 3 |
| 14 | T2056885 Spacer | Spacer | 1 | $22.81 | Obsolete | View Details |
| 15 | T3555032 Washer, 17 x 30 x 3 | Washer, 17 x 30 x 3 M14 | 1 | $3.37 | Available to order | 1 |
| 16 | T2056020 Bolt special | Bolt special | 1 | $30.55 | Obsolete | View Details |
| 17 | T3900092 Label, Chain & Tyres | Label, Chain & Tyres Chain & Tyres | 1 | $6.06 | Available to order | 1 |
| 18 | 2079213-T0301 Spacer tube | Spacer tube | 1 | $15.20 | Obsolete | View Details |
| 19 | T3350039 Riv nut | Riv nut Hexagonal | — | $5.35 | Out of Stock | Notify Me |
| 19 | T3350042 Riv nut | Riv nut Round | — | $4.05 | Obsolete | View Details |
| 20 | T3900131 Label | Label Catalytic convertor DE | 1 | $5.47 | Obsolete | View Details |
| 21 | T3600171 Seal | Seal | 1 | $11.75 | Available to order | 1 |
| 22 | T3600170 Seal, SD 25 32 04 | Seal, SD 25 32 04 | 3 | $14.01 | Available to order | 3 |
| 23 | T2056991 Sleeve | Sleeve | 1 | $25.13 | Available to order | 1 |
