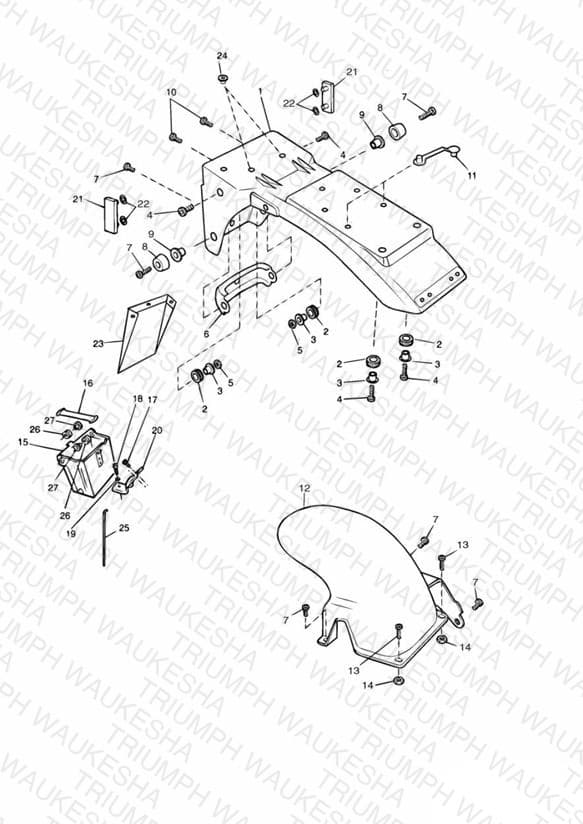

Rear Mudguard & Battery Box
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2301160 Rear mudguard | Rear mudguard | 1 | $181.84 | Obsolete | View Details |
| 2 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 4 | $1.91 | Available to order | 4 |
| 3 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $5.78 | Available to order | 4 |
| 4 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 4 | $4.55 | Available to order | 4 |
| 5 | T3350012 Locknut, Flgd, M6, Black, Zinc | Locknut, Flgd, M6, Black, Zinc | 2 | $1.13 | Available to order | 2 |
| 6 | T2350490 Reinforcing | Reinforcing | 1 | $19.85 | Obsolete | View Details |
| 7 | 3330504-T0301 Screw, M6 x 20 | Screw, M6 x 20 M6 x 20mm | 6 | $2.22 | Available to order | 6 |
| 8 | T2350477 Stop | Stop Panniers | 2 | $2.26 | Available to order | 2 |
| 9 | T3010062 Flanged Sleeve, M6 x 7.8 x 2.85 | Flanged Sleeve, M6 x 7.8 x 2.85 | 2 | $7.14 | Available to order | 2 |
| 10 | T3451260 Firtree, 5 x 11mm, Blk | Firtree, 5 x 11mm, Blk | 2 | $1.40 | Available to order | 2 |
| 11 | 3700010-T0301 Clip cable | Clip cable | 2 | $0.46 | Obsolete | View Details |
| 12 | T2300265 Wheel guard | Wheel guard | 1 | $68.87 | Obsolete | View Details |
| 13 | T3200090 Bolt, RHHF, M8 x 30, Slv, Enc | Bolt, RHHF, M8 x 30, Slv, Enc | 2 | $2.10 | Available to order | 2 |
| 14 | T3350301 Nut, Flanged, M8, Silver | Nut, Flanged, M8, Silver | 2 | $0.81 | Available to order | 2 |
| 15 | 2500060-T0301 Battery box | Battery box » 71698 * PART NO LONGER AVAILABLE * | 1 | $23.65 | Obsolete | View Details |
| 15 | T2500148 Battery box | Battery box 71699 » | 1 | $26.16 | Out of Stock | Notify Me |
| 16 | T2501740 Battery Strap | Battery Strap | 1 | $9.97 | Available to order | 1 |
| 17 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 1 | $1.72 | Available to order | 1 |
| 18 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv M8 x 16mm | 1 | $0.97 | Available to order | 1 |
| 19 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 1 | $2.00 | Available to order | 1 |
| 20 | 2070710-T0301 Bracket | Bracket | 1 | $9.61 | Obsolete | View Details |
| 21 | T2700450 Reflector | Reflector US & CA, All Vins SG, » 110499 | 2 | $10.40 | Obsolete | View Details |
| 22 | T3500025 Spire nut | Spire nut US & CA, All Vins SG, » 110499 | 4 | $3.50 | Backorder — Late August 2026 | 4 |
| 23 | T2300335 Mudguard extension | Mudguard extension DE, AR, GR, HK, JP, PT, CH, SE | 1 | $43.00 | Obsolete | View Details |
| 24 | T3450255 Plug, Retainer, Plastic | Plug, Retainer, Plastic | 2 | $1.40 | Available to order | 2 |
| 25 | 3620400-T0301 Pipe drain | Pipe drain » 71698 | 1 | $4.82 | Obsolete | View Details |
| 26 | T3020012 Grommet | Grommet 71699 » * PART NO LONGER AVAILABLE * | 2 | $3.06 | Obsolete | View Details |
