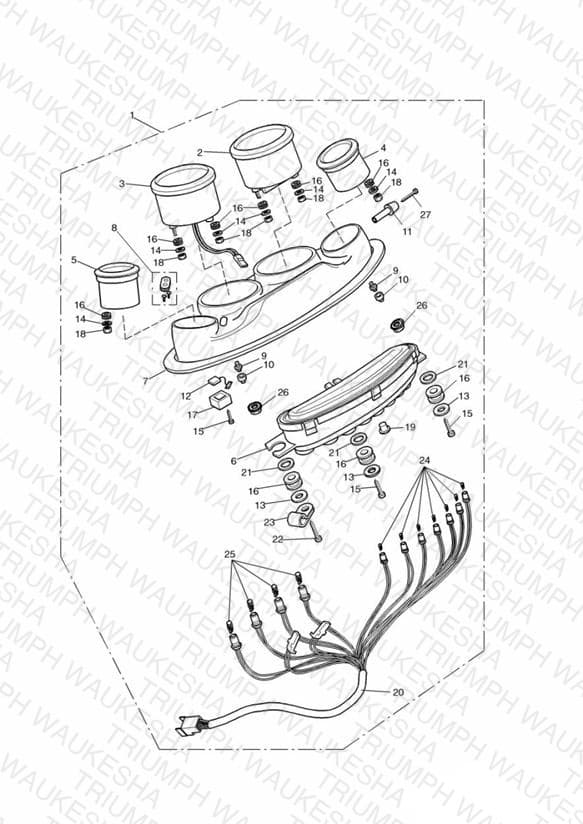

Instruments
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2500260 Instrument assembly | Instrument assembly MPH | 1 | $1336.55 | Obsolete | View Details |
| 1 | T2500270 Instrument assembly | Instrument assembly KPH | 1 | $1494.39 | Obsolete | View Details |
| 2 | T2500271 Speedometer mph | Speedometer mph | 1 | $350.31 | Obsolete | View Details |
| 2 | T2500272 Speedometer kph | Speedometer kph | 1 | $350.31 | Obsolete | View Details |
| 3 | T2500273 Tachometer | Tachometer | 1 | $377.22 | Obsolete | View Details |
| 4 | T2500295 Fuel gauge | Fuel gauge | 1 | $143.32 | Obsolete | View Details |
| 5 | T2500275 Clock | Clock | 1 | $175.77 | Obsolete | View Details |
| 6 | T2500276 Bulb holder | Bulb holder | 1 | $48.60 | Obsolete | View Details |
| 7 | T2500277 Facia panel | Facia panel | 1 | $104.59 | Obsolete | View Details |
| 8 | T2500278 Button | Button Clock | 1 | $8.07 | Obsolete | View Details |
| 9 | T2500291 Fixing | Fixing M6 x 8mm | 4 | $16.04 | Available to order | 4 |
| 10 | T2500279 Rubber mounting | Rubber mounting | 4 | $25.38 | Available to order | 4 |
| 11 | T2500280 Knob | Knob | 1 | $6.22 | Out of Stock | Notify Me |
| 12 | T2500281 Switch | Switch Clock | 1 | $30.41 | Obsolete | View Details |
| 13 | T2500282 Washer | Washer | 3 | $0.81 | Obsolete | View Details |
| 14 | T2500283 Washer | Washer | 6 | $0.90 | Obsolete | View Details |
| 15 | T2500284 Self tapping screw | Self tapping screw | 3 | $1.13 | Backorder — Mid August 2026 | 3 |
| 16 | T2500285 Grommet | Grommet | 3 | $1.62 | Available to order | 3 |
| 17 | T2500289 Cover | Cover | 1 | $4.48 | Obsolete | View Details |
| 18 | T2500286 Domed nut | Domed nut M5 | 6 | $1.28 | Obsolete | View Details |
| 19 | T2500290 Plug | Plug | 1 | $2.34 | Obsolete | View Details |
| 20 | T2500287 Harness | Harness | 1 | $100.44 | Obsolete | View Details |
| 21 | T2500292 Washer | Washer | 3 | $7.13 | Obsolete | View Details |
| 22 | T2500293 Self tapping screw | Self tapping screw | 1 | $12.16 | Out of Stock | Notify Me |
| 23 | T2500294 Clip | Clip | 1 | $10.49 | Obsolete | View Details |
| 24 | T2500098 Bulb | Bulb 2.0 watt Warning light | 7 | $5.60 | Available to order | 7 |
| 25 | T2500097 Bulb | Bulb 1.2 watt Gauges | 4 | $4.85 | Available to order | 4 |
| 26 | T2700493 Nut & Washer Assy, M5, Slv | Nut & Washer Assy, M5, Slv | 4 | $1.79 | Available to order | 4 |
| 27 | T2501205 Screw, Reset Knob | Screw, Reset Knob | 1 | $1.40 | Available to order | 1 |
