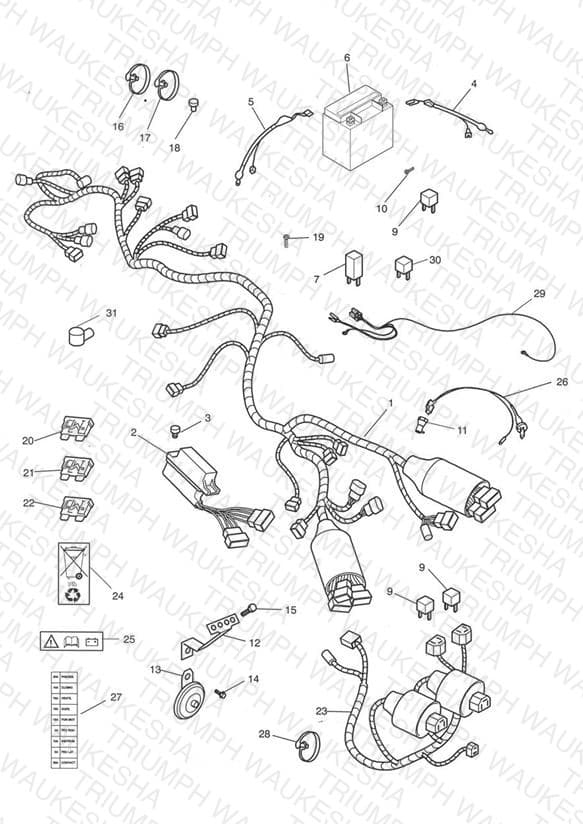

Electrical Equipment
Parts (41)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2500052 Main harness | Main harness ALL Vins, 3 Cyl » Engine No.55345, 4 Cyl | 1 | $575.66 | Obsolete | View Details |
| 1 | T2505503 Main harness | Main harness ENG NO 55346 » 4 Cyl | 1 | $575.66 | Obsolete | View Details |
| 1 | T2500054 Main harness | Main harness US CAL - All Vins 3 Cyl » Engine No.55345, 4 Cyl | 1 | $806.86 | Out of Stock | Notify Me |
| 1 | T2505504 Main harness | Main harness ENG NO 55346 » US CAL 4 Cyl | 1 | $806.28 | Out of Stock | Notify Me |
| 2 | T2500821 Fuse box | Fuse box | 1 | $88.63 | Out of Stock | Notify Me |
| 3 | T3450266 Fir Tree Plug, Blk, 19mm long | Fir Tree Plug, Blk, 19mm long ** PART NO LONGER AVAILABLE ** | 2 | $1.25 | Obsolete | View Details |
| 4 | T2500176 Cable positive | Cable positive ** PART NO LONGER AVAILABLE ** | 1 | $20.61 | Obsolete | View Details |
| 5 | T2500177 Cable negative | Cable negative ** PART NO LONGER AVAILABLE ** | 1 | $44.78 | Obsolete | View Details |
| 6 | 2500008-T0301 Battery | Battery » 71698 - Supplied Without Acid | 1 | $91.62 | Available to order | 1 |
| 6 | T2500196 Battery | Battery Multipack (5 x 2500008-T0301)) | 1 | $397.45 | Obsolete | View Details |
| 6 | T2500182 Battery | Battery 71699 » All Except EF/ER/GR | 1 | $119.50 | Available to order | 1 |
| 6 | T2502513 Battery Multipack (10) | Battery Multipack (10) (10 x T2500182) | 1 | $1141.21 | Out of Stock | Notify Me |
| 6 | T2506721 Kit, Battery, YTX14-BS | Kit, Battery, YTX14-BS EF/ER/GR Markets Only | 1 | $136.98 | Out of Stock | Notify Me |
| 7 | 2500025-T0301 Relay | Relay ** PART NO LONGER AVAILABLE ** | 1 | $89.71 | Obsolete | View Details |
| 9 | T2500155 Relay, 12V/30A | Relay, 12V/30A » 45453 12v, 30amp | 3 | $27.91 | Available to order | 3 |
| 10 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 » 122600 | 1 | $1.61 | Available to order | 1 |
| 10 | T3330421 Screw | Screw 122601 » | 1 | $1.36 | Available to order | 1 |
| 11 | T2070735 Bracket | Bracket Indicator relay No longer available | 1 | $1.64 | Obsolete | View Details |
| 12 | T2078756 Bracket | Bracket Horn | 1 | $12.96 | Obsolete | View Details |
| 13 | T2500110 Horn | Horn | 1 | $15.92 | Obsolete | View Details |
| 14 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv | 1 | $2.91 | Available to order | 1 |
| 15 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 2 | $2.79 | Available to order | 2 |
| 16 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | — | $0.95 | Available to order | 1 |
| 17 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | — | $1.01 | Available to order | 1 |
| 18 | T3660190 Cover | Cover 4 Cyl | 2 | $2.08 | Obsolete | View Details |
| 19 | 3210035-T0301 Screw, Torx, M6 x 20 | Screw, Torx, M6 x 20 M6 x 20mm Harness earth | 1 | $3.83 | Obsolete | View Details |
| 20 | T2500805 Fuse, 30A | Fuse, 30A | — | $1.50 | Available to order | 1 |
| 21 | 2500807-T0301 Fuse 15 amp | Fuse 15 amp ** PART NO LONGER AVAILABLE ** | — | $1.45 | Obsolete | View Details |
| 22 | 2500810-T0301 Fuse 10 amp | Fuse 10 amp | — | $1.21 | Available to order | 1 |
| 23 | T2500135 Harness, Headlight | Harness, Headlight | 1 | $43.64 | Out of Stock | Notify Me |
| 24 | T3950015 Label | Label ** PART NO LONGER AVAILABLE ** Battery disposal | 1 | $5.88 | Obsolete | View Details |
| 25 | T3900021 Label | Label Battery | 1 | $3.04 | Out of Stock | Notify Me |
| 26 | T2500172 Harness and switch kit | Harness and switch kit » ENG NO 46136 Oil switch | 1 | $70.91 | Out of Stock | Notify Me |
| 26 | T2500164 Harness, Neutral/Oil Pressure Switch, 'C' | Harness, Neutral/Oil Pressure Switch, 'C' Oil switch Engine No.46137 » Engine No.46773, 3 Cyl Engine No.46137 » Engine No.55345, 4 Cyl | 1 | $29.08 | Available to order | 1 |
| 26 | T2500166 Harness, Neutral/Oil Pressure Switch, 'D' | Harness, Neutral/Oil Pressure Switch, 'D' ENG NO 46774 » Neutral/oil switch | 1 | $36.33 | Available to order | 1 |
| 27 | T3902021 Label | Label Fusebox FR | 1 | $7.87 | Obsolete | View Details |
| 28 | 3700009-T0301 Clip | Clip | 1 | $1.04 | Obsolete | View Details |
| 29 | T2500167 Harness, Headlight | Harness, Headlight Cutout AU, CA, CY, MY, PT, SE, US, JP | 1 | $15.53 | Obsolete | View Details |
| 30 | T2501705 Relay, Changeover | Relay, Changeover Changeover AU, CA, CY, MY, PT, SE, US, JP | 1 | $21.04 | Available to order | 1 |
| 31 | T2500254 Boot | Boot Brake Light Switch. Al vins 3 Cyl. > ENG NO 55345 4 Cyl | 1 | $2.91 | Available to order | 1 |
| 32 | T2500050 Shorting plug | Shorting plug Not Illustrated | 1 | $4.38 | Out of Stock | Notify Me |
