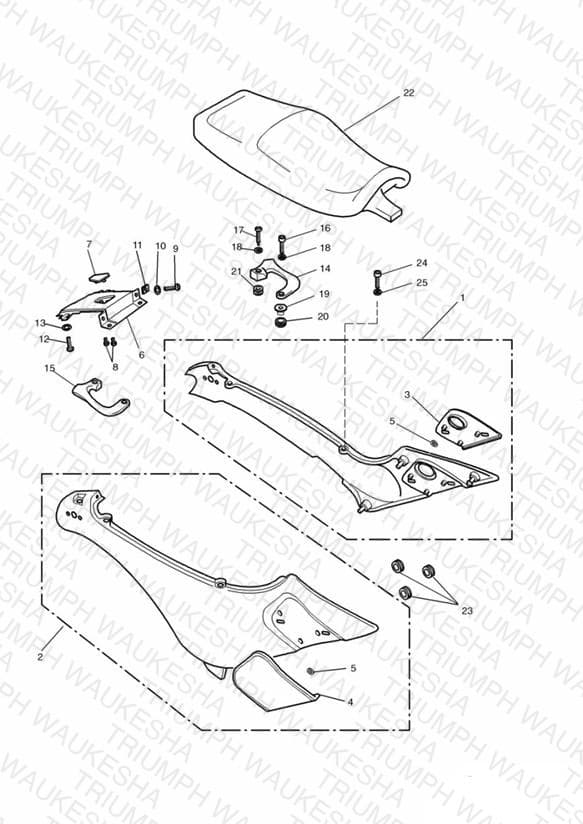

#	Part Number	Description	Qty	Price	Status
1	T2305512-JI Side panel lh	Side panel lh » 71698 Pacific Blue	1	$426.08	Out of Stock	Notify Me
1	T2305512-HA Side panel lh	Side panel lh » 71698 British Racing Green	1	$341.15	Obsolete	View Details
1	T2305512-CH Side panel lh	Side panel lh » 71698 Merlot Red - * PART NO LONGER AVAILABLE *	1	$410.51	Obsolete	View Details
1	T2305512-HD Side panel lh	Side panel lh » 71698 Heritage Green	1	$426.08	Out of Stock	Notify Me
1	T2305512-GE Side panel lh	Side panel lh » 71698 Platinum	1	$426.08	Out of Stock	Notify Me
1	T2305512-JL Side panel lh	Side panel lh » 71698 Turquoise	1	$398.91	Out of Stock	Notify Me
1	T2305540-JI Side panel lh	Side panel lh 71699 » » 139276 Pacific Blue	1	$358.20	Obsolete	View Details
1	T2305540-GE Side panel lh	Side panel lh 71699 » » 139276 Platinum	1	$358.20	Obsolete	View Details
1	T2305540-HA Side panel lh	Side panel lh 71699 » British Racing Green	1	$358.20	Obsolete	View Details
1	T2305540-CP Side panel lh	Side panel lh 111990 » Sunset Red	1	$341.15	Obsolete	View Details
1	T2305540-HJ Side panel lh	Side panel lh 139277 » » 161317 Emerald Green	1	$341.15	Obsolete	View Details
1	T2305540-JP Side panel lh	Side panel lh 139277 » Azure Blue	1	$341.15	Obsolete	View Details
1	T2305540-LC Side panel lh	Side panel lh 161318 » Graphite	1	$358.20	Obsolete	View Details
2	T2305513-JI Side panel rh	Side panel rh » 71698 Pacific Blue	1	$426.08	Out of Stock	Notify Me
2	T2305513-HA Side panel rh	Side panel rh » 71698 British Racing Green	1	$341.15	Obsolete	View Details
2	T2305513-CH Side panel rh	Side panel rh » 71698 Merlot Red	1	$417.04	Out of Stock	Notify Me
2	T2305513-HD Side panel rh	Side panel rh » 71698 Heritage Green	1	$426.08	Out of Stock	Notify Me
2	T2305513-GE Side panel rh	Side panel rh » 71698 Platinum	1	$381.43	Obsolete	View Details
2	T2305513-JL Side panel rh	Side panel rh » 71698 Turquoise	1	$426.08	Out of Stock	Notify Me
2	T2305541-JI Side panel rh	Side panel rh 71699 » » 139276 Pacific Blue	1	$358.20	Obsolete	View Details
2	T2305541-GE Side panel rh	Side panel rh 71699 » » 139276 Platinum	1	$358.20	Obsolete	View Details
2	T2305541-HA Side panel rh	Side panel rh 71699 » British Racing Green	1	$312.65	Obsolete	View Details
2	T2305541-CP Side panel rh	Side panel rh 111990 » Sunset Red	1	$341.15	Obsolete	View Details
2	T2305541-HJ Side panel rh	Side panel rh 139277 » » 161317 Emerald Green	1	$341.15	Obsolete	View Details
2	T2305541-JP Side panel rh	Side panel rh 139277 » Azure Blue	1	$341.15	Obsolete	View Details
2	T2305541-LC Side panel rh	Side panel rh 161318 » Graphite	1	$358.20	Obsolete	View Details
3	T2305530 Trim assembly	Trim assembly » 71698	1	$24.14	Obsolete	View Details
3	T2300931 Trim assembly	Trim assembly 71699 »	1	$26.60	Available to order	1 Ships within 3–7 business days
4	T2300933 Trim assembly	Trim assembly 71699 »	1	$24.14	Obsolete	View Details
5	T3550081 Foam packer	Foam packer	6	$1.36	Available to order	6 Ships within 3–7 business days
6	T2304515-JI End cap	End cap » 139276 Pacific Blue	1	$140.13	Obsolete	View Details
6	T2304515-HA End cap	End cap British Racing Green	1	$133.45	Obsolete	View Details
6	T2304515-HD End cap	End cap Heritage Green	1	$140.13	Obsolete	View Details
6	T2304515-CH End cap	End cap » 111989 Merlot Red	1	$140.13	Obsolete	View Details
6	T2304515-GE End cap	End cap » 139276 Platinum	1	$140.13	Obsolete	View Details
6	T2304515-JL End cap	End cap Turquoise	1	$140.13	Obsolete	View Details
6	T2304515-CP End cap	End cap 111990 » Sunset Red	1	$133.45	Obsolete	View Details
6	T2304515-HJ End cap	End cap 139277 » » 161317 Emerald Green	1	$140.13	Obsolete	View Details
6	T2304515-JP End cap	End cap 139277 » Azure Blue	1	$140.13	Obsolete	View Details
6	T2304515-LC End cap	End cap 161318 » Graphite	1	$133.45	Obsolete	View Details
7	T3900420 Badge	Badge	1	$20.50	Obsolete	View Details
8	T3330436 Screw	Screw	2	$2.58	Obsolete	View Details
9	T3330941 Screw, But/Hd, Skt, M5 x 16, Slv	Screw, But/Hd, Skt, M5 x 16, Slv	2	$7.18	Available to order	2 Ships within 3–7 business days
10	3550055-T0301 Washer, Plastic	Washer, Plastic M5	2	$0.95	Available to order	2 Ships within 3–7 business days
11	T3350123 Nut, Captive, M5, Non-Secured	Nut, Captive, M5, Non-Secured	2	$2.63	Available to order	2 Ships within 3–7 business days
12	T3330527 Screw, Button Hd, M5 x 12	Screw, Button Hd, M5 x 12 M5 x 10mm	2	$0.68	Obsolete	View Details
13	T3550050 Plastic Washer	Plastic Washer	2	$3.04	Out of Stock	Notify Me
14	T2301244 Grab rail	Grab rail LH Crinkle Black	1	$128.02	Obsolete	View Details
15	T2301245 Grab rail	Grab rail RH Crinkle Black	1	$140.93	Out of Stock	Notify Me
16	T3200135 Bolt	Bolt M8 x 35mm	2	$1.25	Obsolete	View Details
17	T3200065 Bolt	Bolt » 55071 M8 x 65mm	2	$7.66	Obsolete	View Details
17	T3200068 Bolt	Bolt 55072 » M8 x 55mm Black	2	$7.48	Available to order	2 Ships within 3–7 business days
18	T3550275 Washer-m8	Washer-m8	4	$0.71	Available to order	4 Ships within 3–7 business days
19	T3010280 Flanged sleeve	Flanged sleeve	2	$7.18	Out of Stock	Notify Me
20	T3021250 Grommet, Dia 18x4	Grommet, Dia 18x4	2	$3.14	Available to order	2 Ships within 3–7 business days
21	T3020400 Grommet	Grommet 22mm x 4mm	2	$1.50	Available to order	2 Ships within 3–7 business days
22	T2300699 Seat assembly	Seat assembly Seat assembly includes tying point hooks (not separately available)	1	$646.83	Obsolete	View Details
22	T2300686 Seat assembly	Seat assembly JP Seat assembly includes tying point hooks (not separately available)	1	$723.20	Obsolete	View Details
23	T3020029 Grommet, Side Panel	Grommet, Side Panel	4	$2.71	Available to order	4 Ships within 3–7 business days
24	T3330090 Bolt Replaced by T3330727 — Screw, But/Hd, M6 x 20, Slv — Available	Bolt M6 x 24mm	2	$6.39	Unavailable	View Details
25	3550060-T0301 Washer, Plastic, 14.3 x 2.0	Washer, Plastic, 14.3 x 2.0	2	$0.81	Obsolete	View Details
