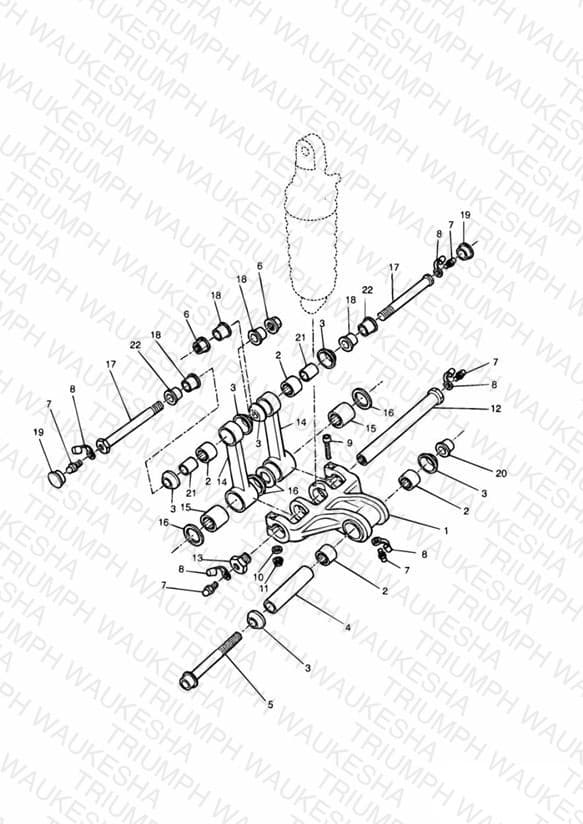

Rear Suspension Linkage
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2057245 Drag link | Drag link | 1 | $165.39 | Available to order | 1 |
| 2 | 3800025-T0301 Needle bearing | Needle bearing | 4 | $18.16 | Available to order | 4 |
| 3 | 2058001-T0301 Seal | Seal | 6 | $12.38 | Available to order | 6 |
| 4 | 2057955-T0301 Sleeve | Sleeve | 1 | $29.33 | Obsolete | View Details |
| 5 | T3334680 Bolt, HHF, M12 x 119, Slv | Bolt, HHF, M12 x 119, Slv | 1 | $8.33 | Available to order | 1 |
| 6 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 2 | $6.07 | Available to order | 2 |
| 7 | 3450007-T0301 Grease nipple | Grease nipple | 5 | $1.91 | Out of Stock | Notify Me |
| 8 | 3450008-T0301 Grease cap | Grease cap * PART NO LONGER AVAILABLE * | 5 | $1.37 | Obsolete | View Details |
| 9 | 3050026-T0301 Capscrew | Capscrew M6 x 40mm | 2 | $1.13 | Out of Stock | Notify Me |
| 10 | 3550014-T0301 Washer | Washer **Part No Longer Available** | 2 | $0.96 | Obsolete | View Details |
| 11 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 M6 | 2 | $0.67 | Available to order | 2 |
| 12 | T2057935 Spindle, Linkage | Spindle, Linkage | 1 | $94.11 | Available to order | 1 |
| 13 | 2057937-T0301 Plug | Plug | 1 | $5.51 | Obsolete | View Details |
| 14 | T2057247 Drop link | Drop link | 2 | $45.90 | Obsolete | View Details |
| 15 | 3800024-T0301 Needle bearing | Needle bearing | 2 | $37.15 | Available to order | 2 |
| 16 | 3600027-T0301 Seal | Seal | 4 | $5.84 | Obsolete | View Details |
| 17 | 2057205-T0301 Bolt | Bolt ** PART NO LONGER AVAILABLE ** | 2 | $6.31 | Obsolete | View Details |
| 18 | T2056006 Collar | Collar | 4 | $11.61 | Obsolete | View Details |
| 19 | 3450190-T0301 End cap | End cap | 2 | $0.96 | Obsolete | View Details |
| 21 | 2059445-T0301 Sleeve | Sleeve | 2 | $7.30 | Available to order | 2 |
