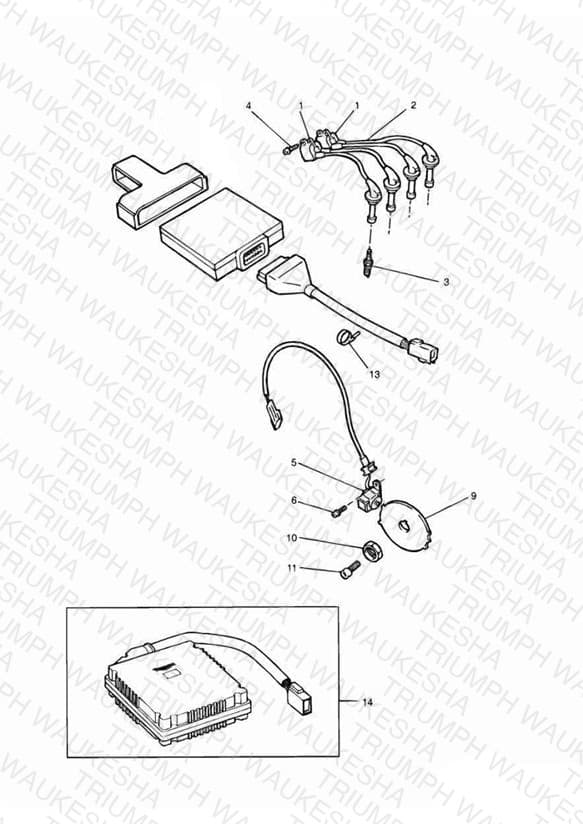

Ignition System
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1290048 Ignition coil (4 Cyl) | Ignition coil (4 Cyl) 4 Cyl | 2 | $263.76 | Available to order | 2 |
| 1 | T1290046 Ignition coil | Ignition coil 3 Cyl | 3 | $263.76 | Available to order | 3 |
| 2 | 1290014-T0301 Ignition cable | Ignition cable 4 Cyl | 1 | $182.47 | Available to order | 1 |
| 2 | 1290013-T0301 Ignition cable | Ignition cable 3 Cyl | 1 | $169.19 | Available to order | 1 |
| 3 | T1290024 Spark Plug, DPR8EA-9 | Spark Plug, DPR8EA-9 NGK DPR 9 EA-9 4 Cylinder Standard | 4 | $7.34 | Available to order | 4 |
| 4 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 4 | $0.97 | Available to order | 4 |
| 5 | T1290022 Sensor | Sensor | 1 | $263.76 | Available to order | 1 |
| 6 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 9 | T1290115 Rotor | Rotor 4 Cyl | 1 | $29.30 | Obsolete | View Details |
| 9 | T1290110 Rotor | Rotor ** Part No Longer Available ** | 1 | $32.16 | Obsolete | View Details |
| 10 | 1100039-T0301 Clamping piece | Clamping piece | 1 | $15.14 | Available to order | 1 |
| 11 | 3050001-T0301 Capscrew | Capscrew M6 x 20mm | 1 | $2.63 | Obsolete | View Details |
| 13 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 1 | $0.95 | Available to order | 1 |
| 14 | T1290071 Igniter | Igniter 4 Cyl All markets except FR » 4901 AU & DE » 9082 | 1 | $330.13 | Obsolete | View Details |
| 14 | T1290070 Igniter | Igniter 4 Cyl FR All vins All markets 4902 » AU & DE 9083 » | 1 | $396.11 | Backorder — Late August 2026 | 1 |
| 14 | T1290060 Igniter | Igniter 3 Cyl All markets except US Cal & CH | 1 | $336.73 | Obsolete | View Details |
| 14 | T1290075 Igniter | Igniter 3 Cyl US CAL | 1 | $336.73 | Obsolete | View Details |
