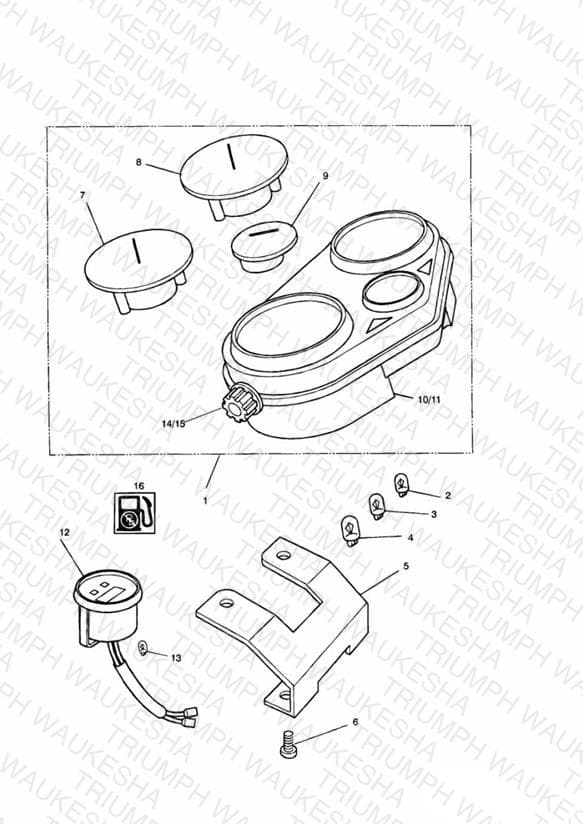

Instruments
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2500201 Instrument assembly | Instrument assembly 16922 » MPH | 1 | $1169.68 | Obsolete | View Details |
| 1 | T2500401 Instrument assembly | Instrument assembly » 16921 KPH | 1 | $1169.68 | Obsolete | View Details |
| 2 | T2500090 Bulb | Bulb T6.5 - 3W Warning lamps | — | $6.54 | Available to order | 1 |
| 3 | 2500085-T0301 Bulb | Bulb T6.5 - 1.7W Instrument illumination | 3 | $5.97 | Available to order | 3 |
| 4 | 2500095-T0301 Bulb | Bulb T10 - 1.7W Panel illumination | — | $6.54 | Available to order | 1 |
| 5 | 2500005-T0301 Bracket | Bracket | 1 | $14.11 | Backorder — Mid October 2026 | 1 |
| 6 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv M16 | 2 | $1.04 | Available to order | 2 |
| 7 | 2500210-T0301 Speedometer mph | Speedometer mph | 1 | $340.96 | Obsolete | View Details |
| 7 | 2500410-T0301 Speedometer kph | Speedometer kph | 1 | $340.96 | Obsolete | View Details |
| 8 | 2500220-T0301 Tachometer | Tachometer | 1 | $388.54 | Obsolete | View Details |
| 9 | 2500230-T0301 Temperature gauge | Temperature gauge | 1 | $189.78 | Obsolete | View Details |
| 10 | 2500250-T0301 Cover instruments | Cover instruments | 1 | $138.39 | Obsolete | View Details |
| 11 | 2500240-T0301 Cover rear | Cover rear | 1 | $94.65 | Obsolete | View Details |
| 12 | 2500022-T0301 Clock | Clock Digital | 1 | $216.05 | Available to order | 1 |
| 13 | T2500097 Bulb | Bulb 1.2 watt | 1 | $5.16 | Available to order | 1 |
| 14 | T2500380 Knob | Knob | 1 | $4.01 | Available to order | 1 |
| 15 | T2501205 Screw, Reset Knob | Screw, Reset Knob | 1 | $1.50 | Available to order | 1 |
| 16 | T3930090 Label | Label Unleaded fuel US CAL | 1 | $10.89 | Obsolete | View Details |
