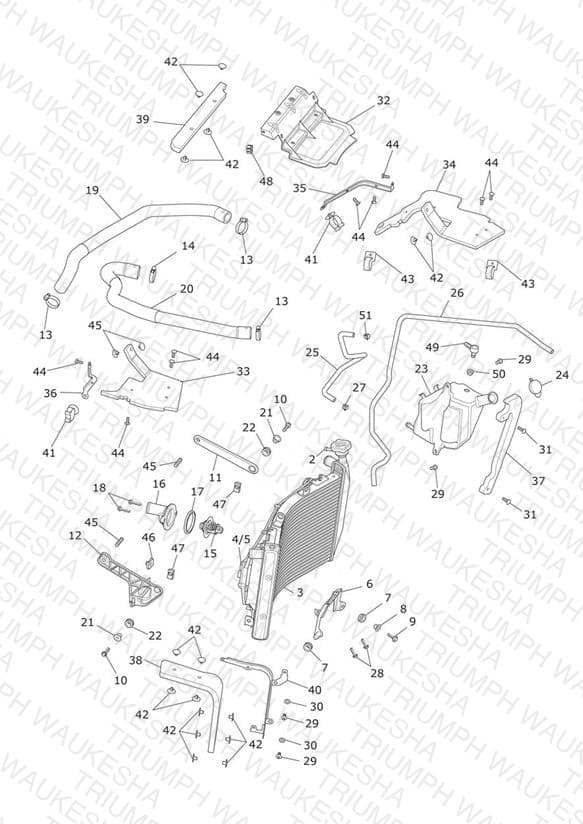

Cooling System
Parts (53)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | T2100978 Cap Assy, Radiator | Cap Assy, Radiator | 1 | $15.46 | Unavailable | View Details |
| 3 | T2100983 Cooling Fan, LHS | Cooling Fan, LHS | 1 | $197.72 | Available to order | 1 |
| 4 | T2100984 Cooling Fan, RHS | Cooling Fan, RHS | 1 | $197.72 | Available to order | 1 |
| 5 | T2100976 Radiator, Curved | Radiator, Curved | 1 | $862.60 | Available to order | 1 |
| 6 | T2101284 Bracket, Radiator Support | Bracket, Radiator Support | 1 | $13.67 | Out of Stock | Notify Me |
| 7 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 2 | $1.91 | Available to order | 2 |
| 8 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 1 | $5.78 | Available to order | 1 |
| 9 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 1 | $4.55 | Available to order | 1 |
| 10 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 2 | $2.63 | Available to order | 2 |
| 11 | T2101285 Bracket, Radiator, LH | Bracket, Radiator, LH | 1 | $7.30 | Available to order | 1 |
| 12 | T2101286 Bracket, Radiator, RH | Bracket, Radiator, RH | 1 | $7.30 | Available to order | 1 |
| 13 | T3707580 Hose Clip, Dia 20-32 | Hose Clip, Dia 20-32 > 630346 | 3 | $9.57 | Available to order | 3 |
| 13 | T3706214 Clamp, Constant Tension, Dia 29 | Clamp, Constant Tension, Dia 29 630347 > | 3 | $13.99 | Available to order | 3 |
| 14 | T3707585 Clip, Hose, Dia 27-35 | Clip, Hose, Dia 27-35 > 630346 | 1 | $4.64 | Available to order | 1 |
| 14 | T3706216 Clamp, Constant Tension, Dia 32 | Clamp, Constant Tension, Dia 32 630347 > | 1 | $13.99 | Available to order | 1 |
| 15 | T2100676 Thermostat | Thermostat | 1 | $68.42 | Backorder — Mid August 2026 | 1 |
| 16 | T2100479 Cover, Water Outlet | Cover, Water Outlet | 1 | $50.37 | Available to order | 1 |
| 17 | T2100201 Seal, Thermostat | Seal, Thermostat | 1 | $7.14 | Available to order | 1 |
| 18 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 2 | $2.46 | Available to order | 2 |
| 19 | T2100467 Hose, Rad to Pump | Hose, Rad to Pump | 1 | $24.83 | Available to order | 1 |
| 20 | T2100468 Hose, Thermostat to Rad | Hose, Thermostat to Rad | 1 | $56.07 | Available to order | 1 |
| 21 | T3010052 Flanged Sleeve, M6 x 12 x 10.75 | Flanged Sleeve, M6 x 12 x 10.75 | 2 | $5.02 | Available to order | 2 |
| 22 | T3020030 Grommet, Rubber | Grommet, Rubber | 2 | $8.75 | Available to order | 2 |
| 23 | T2101154 Coolant Expansion Tank | Coolant Expansion Tank | 1 | $91.26 | Available to order | 1 |
| 24 | T2101015 Cap, Expansion Tank | Cap, Expansion Tank | 1 | $2.00 | Available to order | 1 |
| 25 | T2100626 Pipe, Cap to Expansion Tank | Pipe, Cap to Expansion Tank | 1 | $18.25 | Out of Stock | Notify Me |
| 26 | T2100627 Pipe, Expansion Tank Overflow | Pipe, Expansion Tank Overflow | 1 | $23.58 | Backorder — Late August 2026 | 1 |
| 27 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 1 | $5.42 | Available to order | 1 |
| 28 | T3205085 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 2 | $5.69 | Out of Stock | Notify Me |
| 29 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 4 | $1.40 | Available to order | 4 |
| 30 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 2 | $1.40 | Available to order | 2 |
| 31 | T3450261 Firtree Plug | Firtree Plug | 2 | $2.00 | Available to order | 2 |
| 32 | T2100638 Cover Assy, Radiator, Centre | Cover Assy, Radiator, Centre | 1 | $40.67 | Available to order | 1 |
| 33 | T2100639 Air Deflector, RH, Inner | Air Deflector, RH, Inner | 1 | $30.70 | Available to order | 1 |
| 34 | T2100640 Air Deflector, LH, Inner | Air Deflector, LH, Inner | 1 | $30.70 | Available to order | 1 |
| 35 | T2100644 Bracket, Air Deflector, LHS | Bracket, Air Deflector, LHS | 1 | $10.90 | Available to order | 1 |
| 36 | T2100645 Bracket, Air Deflector, RHS | Bracket, Air Deflector, RHS | 1 | $10.90 | Available to order | 1 |
| 37 | T2100646 Seal, Radiator, LHS | Seal, Radiator, LHS | 1 | $9.22 | Available to order | 1 |
| 38 | T2100647 Seal, Radiator, RHS | Seal, Radiator, RHS | 1 | $10.55 | Available to order | 1 |
| 39 | T2100648 Seal, Cam Cover, Front | Seal, Cam Cover, Front | 1 | $6.71 | Obsolete | View Details |
| 40 | T2100649 Bracket, Radiator, Seal, RHS | Bracket, Radiator, Seal, RHS | 1 | $9.22 | Available to order | 1 |
| 41 | T3700255 Hose Clip, Locking, 28mm | Hose Clip, Locking, 28mm PART NO LONGER AVAILABLE | 2 | $7.94 | Obsolete | View Details |
| 42 | T3700256 Clip, Ratchet, Rivet, 8.8-12.7 | Clip, Ratchet, Rivet, 8.8-12.7 | 18 | $1.40 | Available to order | 18 |
| 43 | T3700257 Cable Tie, Hook & Loop, 152 | Cable Tie, Hook & Loop, 152 | 2 | $2.25 | Available to order | 2 |
| 44 | T3701098 Firtree, Dia 5 x 18 | Firtree, Dia 5 x 18 | 9 | $5.24 | Available to order | 9 |
| 45 | T3100030 Stud, M8 x 20, Enc | Stud, M8 x 20, Enc | 2 | $7.10 | Out of Stock | Notify Me |
| 46 | T3350109 Captive Nut, M8, Slv | Captive Nut, M8, Slv | 1 | $1.27 | Available to order | 1 |
| 47 | T3350091 Nut, Captive, M6 | Nut, Captive, M6 | 2 | $2.37 | Backorder — Late August 2026 | 2 |
| 48 | T3700193 Clip, Double, Firtree | Clip, Double, Firtree | 1 | $1.13 | Available to order | 1 |
| 49 | T2100433 Elbow, Overflow, Quickfit | Elbow, Overflow, Quickfit | 1 | $6.83 | Available to order | 1 |
| 50 | T3450141 Grommet, TPE, Quickfit | Grommet, TPE, Quickfit | 1 | $2.17 | Available to order | 1 |
| 51 | T3700077 Clip, 10.5 Rer Oetiker | Clip, 10.5 Rer Oetiker | 1 | $4.01 | Available to order | 1 |
| 52 | T4007777 Coolant, OAT, Premix, D2053,12 x 1L | Coolant, OAT, Premix, D2053,12 x 1L Not Illustrated | — | $187.12 | Available to order | 1 |
