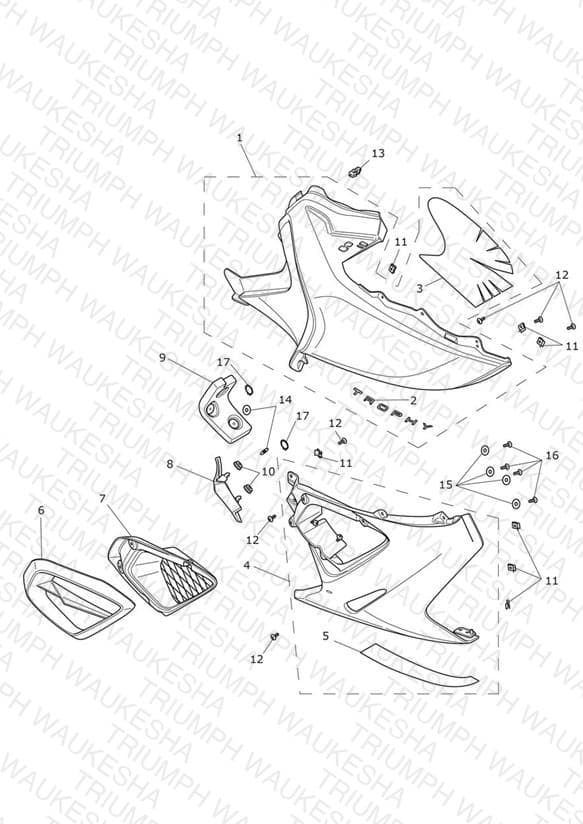

RH Side Fairings
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2302668-JI Kit, Side Panel, Upper, RH | Kit, Side Panel, Upper, RH Pacific Blue | 1 | $637.00 | Out of Stock | Notify Me |
| 1 | T2302668-MM Kit, Side Panel, Upper, RH | Kit, Side Panel, Upper, RH Lunar Silver > 657552 | 1 | $637.00 | Out of Stock | Notify Me |
| 1 | T2302668-PR Kit, Side Panel, Upper, RH | Kit, Side Panel, Upper, RH Phantom Black - 657553 > | 1 | $637.00 | Out of Stock | Notify Me |
| 2 | T2304768 Badge, Fairing, Trophy | Badge, Fairing, Trophy | 1 | $59.87 | Available to order | 1 |
| 3 | T2304809 Pad, Heatshield, Upper, RH | Pad, Heatshield, Upper, RH | 1 | $61.42 | Available to order | 1 |
| 4 | T2302854-JI Kit, Side Panel, Lower, RH | Kit, Side Panel, Lower, RH Pacific Blue | 1 | $418.05 | Available to order | 1 |
| 4 | T2302854-MM Kit, Side Panel, Lower, RH | Kit, Side Panel, Lower, RH Lunar Silver > 657552 | 1 | $350.30 | Available to order | 1 |
| 4 | T2302854-PR Kit, Side Panel, Lower, RH | Kit, Side Panel, Lower, RH Phantom Black - 657553 > | 1 | $418.05 | Available to order | 1 |
| 5 | T2304808 Pad, Heatshield, Lower, RH | Pad, Heatshield, Lower, RH | 1 | $21.57 | Available to order | 1 |
| 6 | T2303627 Kit, Finisher, RH | Kit, Finisher, RH > 583700 | 1 | $125.46 | Available to order | 1 |
| 6 | T2302874-LS Cooling Duct, Finisher, RH | Cooling Duct, Finisher, RH Graphite - 583701 > | 1 | $129.00 | Backorder — Early August 2026 | 1 |
| 7 | T2303196 Kit, Grille, RH | Kit, Grille, RH > 583700 | 1 | $178.72 | Backorder — Late August 2026 | 1 |
| 7 | T2308522 Grille, Radiator Duct, RH | Grille, Radiator Duct, RH 583701 > | 1 | $167.31 | Available to order | 1 |
| 8 | T2072721 Engine Infill, RH | Engine Infill, RH | 1 | $22.82 | Available to order | 1 |
| 9 | T2308565 Pad, Foam, RH, Upper | Pad, Foam, RH, Upper | 1 | $12.63 | Available to order | 1 |
| 10 | T3020135 Rubber Grommet | Rubber Grommet | 2 | $1.91 | Available to order | 2 |
| 11 | T3351052 Nut, Captive, 4-5.5mm | Nut, Captive, 4-5.5mm | 7 | $4.36 | Available to order | 7 |
| 12 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 7 | $6.73 | Available to order | 7 |
| 13 | T3351111 Captive Boss, M5 | Captive Boss, M5 | 1 | $6.94 | Available to order | 1 |
| 14 | T3552553 Washer, Rubber, 8.4 x 24.0 x 2.0 | Washer, Rubber, 8.4 x 24.0 x 2.0 | 2 | $2.00 | Available to order | 2 |
| 15 | T3551178 Washer, M5 x 15 x 1.6 | Washer, M5 x 15 x 1.6 583433 > | 4 | $0.97 | Available to order | 4 |
| 16 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 583433 > | 4 | $1.51 | Available to order | 4 |
| 17 | T3500210 Circlip, Ext, 8 x 1 | Circlip, Ext, 8 x 1 | 2 | $2.14 | Available to order | 2 |
