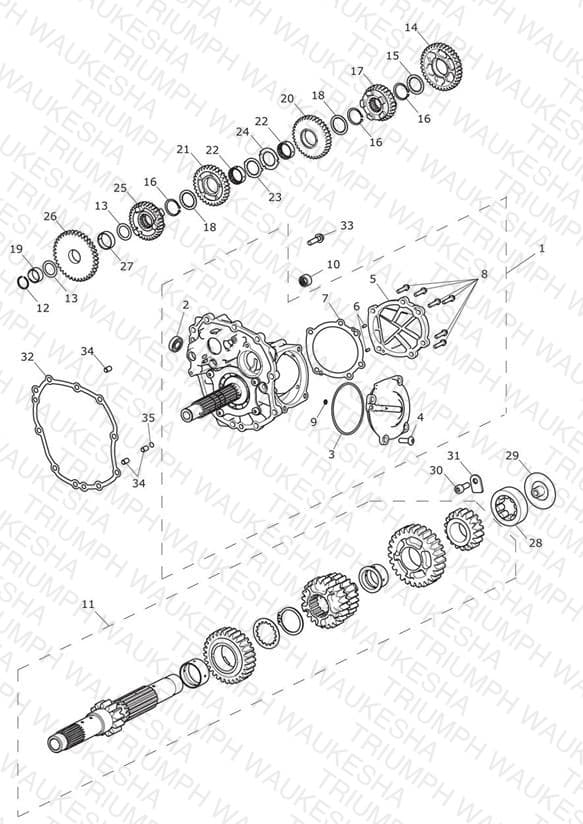

Transmission
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1270004 Drive Unit, Front Bevel Box | Drive Unit, Front Bevel Box | 1 | $3626.40 | Available to order | 1 |
| 2 | T1181285 Seal, Oil, 25 x 42 x 7 | Seal, Oil, 25 x 42 x 7 | 1 | $22.52 | Out of Stock | Notify Me |
| 3 | T1181287 O Ring, ID 90 x Dia 2.5 | O Ring, ID 90 x Dia 2.5 | 1 | $7.73 | Available to order | 1 |
| 4 | T3331180 Screw, But/Hd, Skt, M8 x 25 | Screw, But/Hd, Skt, M8 x 25 | 2 | $4.43 | Obsolete | View Details |
| 5 | T1181282 Cover, Side, Front Bevel Box | Cover, Side, Front Bevel Box | 1 | $159.69 | Out of Stock | Notify Me |
| 6 | T3000118 Dowel, Dia 4.0 x 10.0 | Dowel, Dia 4.0 x 10.0 | 2 | $4.45 | Available to order | 2 |
| 7 | T1181294 Gasket, Side Cover, Front Bevel Box | Gasket, Side Cover, Front Bevel Box | 1 | $32.78 | Available to order | 1 |
| 8 | T3331182 Bolt, HHF, M6 x 25, S/S | Bolt, HHF, M6 x 25, S/S | 6 | $5.69 | Available to order | 6 |
| 9 | T1181291 O Ring, ID 5.1 x Dia 1.6 | O Ring, ID 5.1 x Dia 1.6 | 1 | $11.71 | Available to order | 1 |
| 10 | T3800001 Bearing, Needle, 20 x 14 x 12 | Bearing, Needle, 20 x 14 x 12 | 1 | $8.60 | Available to order | 1 |
| 11 | T1181134 Input Shaft Assembly | Input Shaft Assembly | 1 | $369.67 | Available to order | 1 |
| 12 | T3500201 Circlip, EXT, 23.5 x 1.2 | Circlip, EXT, 23.5 x 1.2 | 1 | $4.36 | Available to order | 1 |
| 13 | T3555016 Thrust Washer, 25 x 35 x 1.0 | Thrust Washer, 25 x 35 x 1.0 | 2 | $4.92 | Available to order | 2 |
| 14 | T1180411 Gear, 2nd, Output, 37T | Gear, 2nd, Output, 37T | 1 | $121.69 | Available to order | 1 |
| 15 | T1180051 Washer,Thrust, 41 OD x 1.5 | Washer,Thrust, 41 OD x 1.5 | 1 | $4.74 | Available to order | 1 |
| 16 | T3500270 Circlip, 32mm Shaft | Circlip, 32mm Shaft | 3 | $7.02 | Available to order | 3 |
| 17 | T1180191 Gear, 6th, Output | Gear, 6th, Output | 1 | $127.38 | Available to order | 1 |
| 18 | T1180292 Washer, Thrust, Output | Washer, Thrust, Output | 2 | $4.85 | Available to order | 2 |
| 19 | T3800159 Bearing, Needle, K25 x 32 x 16 V5 | Bearing, Needle, K25 x 32 x 16 V5 | 1 | $17.77 | Available to order | 1 |
| 20 | T1180625 Gear, Output, 3rd, 38T | Gear, Output, 3rd, 38T | 1 | $127.38 | Available to order | 1 |
| 21 | T1182212 Gear, Output, 4th, 31T | Gear, Output, 4th, 31T | 1 | $133.93 | Available to order | 1 |
| 22 | T1181180 Bush, 3rd/4th, Splined | Bush, 3rd/4th, Splined | 2 | $41.44 | Available to order | 2 |
| 23 | T1182201 Washer, Splined, Locking, Outer | Washer, Splined, Locking, Outer | 1 | $7.02 | Available to order | 1 |
| 24 | T1182202 Washer, Splined, Locking, Inner | Washer, Splined, Locking, Inner | 1 | $7.02 | Available to order | 1 |
| 25 | T1180158 Gear, 5th, Ouput | Gear, 5th, Ouput | 1 | $123.56 | Available to order | 1 |
| 26 | T1180675 Gear, 1st, Output | Gear, 1st, Output | 1 | $153.98 | Available to order | 1 |
| 27 | T3800151 Bearing, Needle Roller, 25 x 29 x 13 | Bearing, Needle Roller, 25 x 29 x 13 | 1 | $37.15 | Out of Stock | Notify Me |
| 28 | T3800206 Bearing, Cyl Roller, 24.2 x 47 x 14 | Bearing, Cyl Roller, 24.2 x 47 x 14 | 1 | $58.92 | Available to order | 1 |
| 29 | T1181293 Restrictor Plate, Oil | Restrictor Plate, Oil | 1 | $6.65 | Available to order | 1 |
| 30 | T3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw | Screw, Cap/Hd, M6 x 16, Enc, Raw | 1 | $0.57 | Available to order | 1 |
| 31 | T1190207 Keeper Plate | Keeper Plate | 1 | $20.60 | Available to order | 1 |
| 32 | T1181296 Gasket, Front Bevel Box | Gasket, Front Bevel Box | 1 | $13.18 | Available to order | 1 |
| 33 | T3201633 Bolt, HHF, M8 x 30, Slv | Bolt, HHF, M8 x 30, Slv | 10 | $6.65 | Available to order | 10 |
| 34 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 3 | $3.90 | Available to order | 3 |
| 35 | T3601275 O Ring, ID Dia 8 x Dia 2.5, FKM | O Ring, ID Dia 8 x Dia 2.5, FKM | 1 | $2.10 | Available to order | 1 |
| 36 | T1181003 Plug, Restrictor, Input | Plug, Restrictor, Input Not illustrated | 1 | $3.33 | Available to order | 1 |
