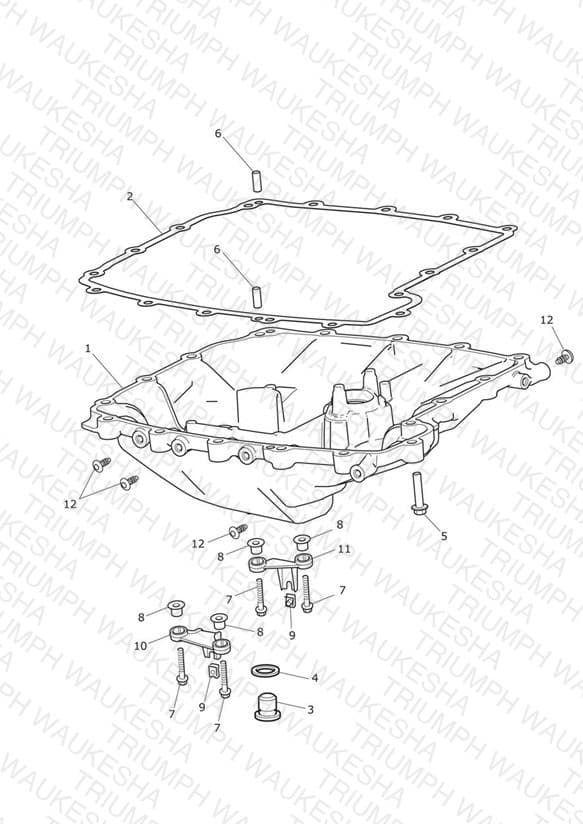

Sump & Fittings
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1232201 Sump, Black | Sump, Black | 1 | $484.11 | Available to order | 1 |
| 2 | T1232202 Gasket, Sump | Gasket, Sump | 1 | $18.57 | Available to order | 1 |
| 3 | T3458989 Sump Plug, M14 x 1.5, Blk | Sump Plug, M14 x 1.5, Blk | 1 | $5.48 | Available to order | 1 |
| 4 | T3551092 Sealing Washer Multipack (25) | Sealing Washer Multipack (25) Part only available as Multipack | 1 | $27.56 | Available to order | 1 |
| 5 | T3202303 Bolt, RHHF, M6 x 28, Slv | Bolt, RHHF, M6 x 28, Slv | 13 | $1.62 | Backorder — Early August 2026 | 13 |
| 6 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 2 | $1.13 | Available to order | 2 |
| 7 | T3202301 Bolt, RHHF, M6 x 40, Slv | Bolt, RHHF, M6 x 40, Slv | 4 | $1.27 | Available to order | 4 |
| 8 | T3010052 Flanged Sleeve, M6 x 12 x 10.75 | Flanged Sleeve, M6 x 12 x 10.75 | 4 | $5.02 | Available to order | 4 |
| 9 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.39 | Available to order | 2 |
| 10 | T2304848 Bracket, RH Lower, Bodywork | Bracket, RH Lower, Bodywork | 1 | $10.63 | Available to order | 1 |
| 11 | T2304856 Bracket, LH Lower, Bodywork | Bracket, LH Lower, Bodywork | 1 | $10.63 | Available to order | 1 |
| 12 | T3450290 Fir Tree, M5, Dia 12.1 x 15 | Fir Tree, M5, Dia 12.1 x 15 | 4 | $1.42 | Available to order | 4 |
