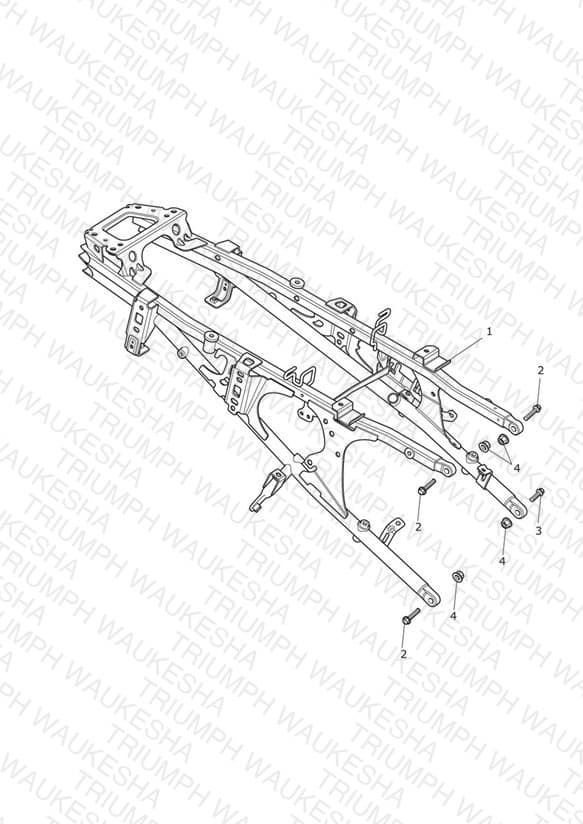

Rear Subframe
Parts (5)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2074720 Rear Subframe Assembly | Rear Subframe Assembly > 664986 | 1 | $704.17 | Out of Stock | Notify Me |
| 1 | T2074748 Rear Subframe Assembly | Rear Subframe Assembly 664987 > | 1 | $704.17 | Out of Stock | Notify Me |
| 2 | T3205825 Bolt, HHF, Lghtd, M10 x 45, Slv | Bolt, HHF, Lghtd, M10 x 45, Slv | 3 | $6.83 | Available to order | 3 |
| 3 | T3205796 Bolt, HHF, Lghtd, M10 x 35, Slv | Bolt, HHF, Lghtd, M10 x 35, Slv | 1 | $11.32 | Backorder — Mid August 2026 | 1 |
| 4 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 4 | $4.16 | Available to order | 4 |
