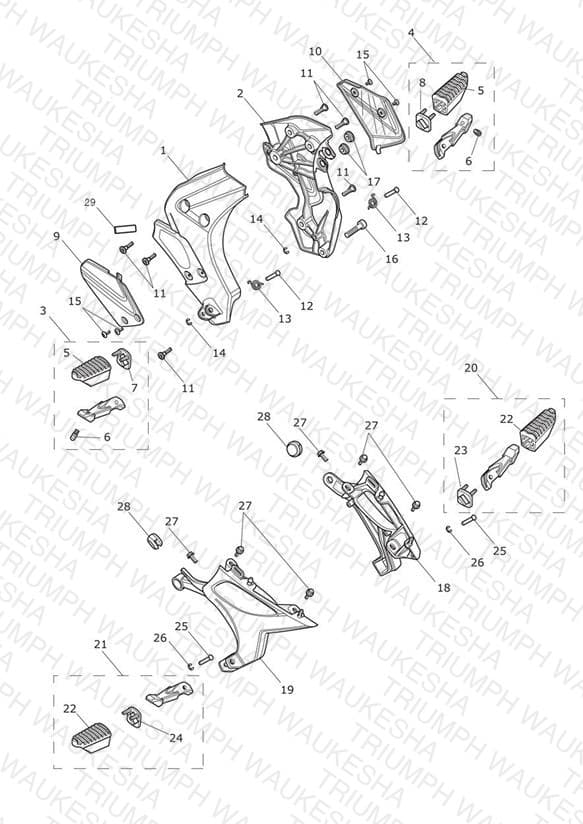

Footrests & Mountings
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2081642 Control Plate, RH | Control Plate, RH | 1 | $134.99 | Available to order | 1 |
| 2 | T2081643 Control Plate, LH | Control Plate, LH | 1 | $134.99 | Available to order | 1 |
| 3 | T2081122 Footrest Assy, Front, RH | Footrest Assy, Front, RH | 1 | $76.04 | Available to order | 1 |
| 4 | T2081123 Footrest Assy, Front, LH | Footrest Assy, Front, LH | 1 | $76.04 | Available to order | 1 |
| 5 | T2084405 Footrest Rubber | Footrest Rubber | 2 | $13.61 | Available to order | 2 |
| 6 | T2084411 Bank Angle Peg | Bank Angle Peg | 2 | $8.87 | Available to order | 2 |
| 7 | T2084407 Rear Footrest Detent Plate, RH | Rear Footrest Detent Plate, RH | 1 | $6.39 | Available to order | 1 |
| 8 | T2084408 Rear Footrest Detent Plate, LH | Rear Footrest Detent Plate, LH | 1 | $6.39 | Available to order | 1 |
| 9 | T2087175 Heel Guard, RH | Heel Guard, RH | 1 | $52.29 | Available to order | 1 |
| 10 | T2087176 Heel Guard, LH | Heel Guard, LH | 1 | $52.29 | Available to order | 1 |
| 11 | T2024801 Bolt, Disc, M8 x 30, Slv, Enc | Bolt, Disc, M8 x 30, Slv, Enc | 6 | $1.90 | Available to order | 6 |
| 12 | T2081687 Pin, Pivot, Footrest | Pin, Pivot, Footrest | 2 | $5.24 | Available to order | 2 |
| 13 | T2081130 Spring, Footrest Return | Spring, Footrest Return | 2 | $6.07 | Available to order | 2 |
| 14 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 2 | $2.85 | Available to order | 2 |
| 15 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 4 | $5.02 | Available to order | 4 |
| 16 | T3332127 Cap Head Screw, M10 x 50 | Cap Head Screw, M10 x 50 | 1 | $11.71 | Available to order | 1 |
| 17 | T3020135 Rubber Grommet | Rubber Grommet | 2 | $1.91 | Available to order | 2 |
| 18 | T2081647 Rear Footrest Hanger, Lh | Rear Footrest Hanger, Lh | 1 | $131.17 | Available to order | 1 |
| 19 | T2081646 Rear Footrest Hanger, RH | Rear Footrest Hanger, RH | 1 | $131.17 | Available to order | 1 |
| 20 | T2084402 Rear Footrest Assy, LH | Rear Footrest Assy, LH | 1 | $69.35 | Available to order | 1 |
| 21 | T2084401 Rear Footrest Assy, RH | Rear Footrest Assy, RH | 1 | $69.35 | Available to order | 1 |
| 27 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 6 | $1.62 | Available to order | 6 |
| 28 | T2088888 Buffer, Pannier Mount | Buffer, Pannier Mount | 2 | $19.47 | Available to order | 2 |
| 29 | T2309971 Pad, Adhesive, 25 x 9 | Pad, Adhesive, 25 x 9 | 1 | $8.75 | Out of Stock | Notify Me |
