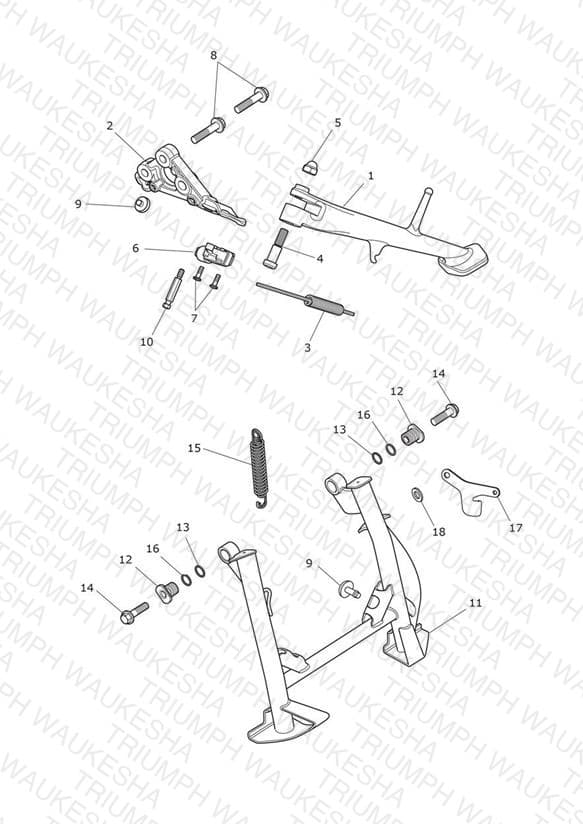

Stands
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2081706 Sidestand | Sidestand | 1 | $115.97 | Available to order | 1 |
| 2 | T2081707 Sidestand Bracket | Sidestand Bracket | 1 | $119.76 | Available to order | 1 |
| 3 | T2085019 Sidestand Spring | Sidestand Spring | 1 | $11.71 | Available to order | 1 |
| 4 | T3330867 Bolt, Shouldered, M10 x 1.25 x 53.1 | Bolt, Shouldered, M10 x 1.25 x 53.1 | 1 | $11.48 | Available to order | 1 |
| 5 | T3350132 Locknut, Domed, M10 | Locknut, Domed, M10 | 1 | $2.25 | Available to order | 1 |
| 6 | T2080746 Sidestand Switch | Sidestand Switch | 1 | $60.87 | Available to order | 1 |
| 7 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $0.97 | Available to order | 2 |
| 8 | T3205825 Bolt, HHF, Lghtd, M10 x 45, Slv | Bolt, HHF, Lghtd, M10 x 45, Slv | 2 | $6.83 | Available to order | 2 |
| 9 | T2081697 Up Stop, Sidestand | Up Stop, Sidestand | 2 | $9.88 | Available to order | 2 |
| 10 | T2082049 Peg, Spring Retainer | Peg, Spring Retainer | 1 | $11.56 | Available to order | 1 |
| 11 | T2081719 Centrestand Assy | Centrestand Assy | 1 | $115.97 | Available to order | 1 |
| 12 | T2083333 Boss, Pivot, Centrestand | Boss, Pivot, Centrestand | 2 | $35.96 | Available to order | 2 |
| 13 | T3606360 O Ring, 14.1 x 1.6 | O Ring, 14.1 x 1.6 > 614522 | 4 | $2.10 | Available to order | 4 |
| 14 | T3205796 Bolt, HHF, Lghtd, M10 x 35, Slv | Bolt, HHF, Lghtd, M10 x 35, Slv | 2 | $11.32 | Backorder — Mid August 2026 | 2 |
| 15 | T2081777 Spring, Centrestand | Spring, Centrestand | 1 | $7.38 | Available to order | 1 |
| 16 | T3600085 O-Ring, ID 14.6, SD 2.4 | O-Ring, ID 14.6, SD 2.4 614523 > | 2 | $4.01 | Available to order | 2 |
| 17 | T2082719 Bracket, Centre Stand | Bracket, Centre Stand > 590855 | 1 | $119.76 | Available to order | 1 |
| 18 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv > 590855 | 1 | $2.00 | Available to order | 1 |
