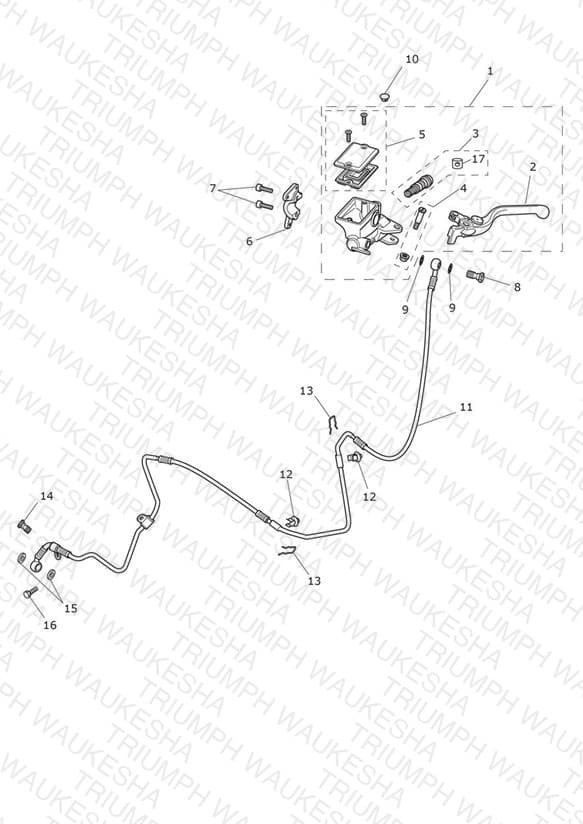

Clutch Controls
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2045831 Clutch, Master Cyl Assy, 12.7mm | Clutch, Master Cyl Assy, 12.7mm | 1 | $480.47 | Available to order | 1 |
| 2 | T2045801 Clutch Lever | Clutch Lever | 1 | $64.28 | Available to order | 1 |
| 3 | T2044487 Piston Set, M/Cyl, 12.7mm | Piston Set, M/Cyl, 12.7mm | 1 | $74.63 | Backorder — Late September 2026 | 1 |
| 4 | T2020158 Lever, Bolt, Front M/Cyl | Lever, Bolt, Front M/Cyl | 1 | $14.07 | Available to order | 1 |
| 5 | T2025803 Kit, Cap, Reservoir | Kit, Cap, Reservoir | 1 | $57.82 | Available to order | 1 |
| 6 | T2042058 Clamp, M/Cyl, Switchpod | Clamp, M/Cyl, Switchpod | 1 | $27.14 | Obsolete | View Details |
| 7 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 2 | $1.61 | Available to order | 2 |
| 8 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 | 1 | $7.48 | Available to order | 1 |
| 9 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 2 | $1.14 | Available to order | 2 |
| 10 | T3450121 Blanking Plug | Blanking Plug | 1 | $7.38 | Available to order | 1 |
| 11 | T2040613 Clutch Hose | Clutch Hose | 1 | $186.74 | Available to order | 1 |
| 12 | T3700233 Clip, Brake Hose | Clip, Brake Hose | 2 | $6.27 | Available to order | 2 |
| 13 | T3701233 Clip, Wire Spring, Retaining | Clip, Wire Spring, Retaining | 2 | $5.65 | Available to order | 2 |
| 16 | T3205062 Bolt, HHF, Lghtd, M6 x 12, Slv | Bolt, HHF, Lghtd, M6 x 12, Slv | 1 | $4.46 | Available to order | 1 |
| 17 | T2045825 Bush, Master Cylinder | Bush, Master Cylinder | 1 | $14.68 | Available to order | 1 |
