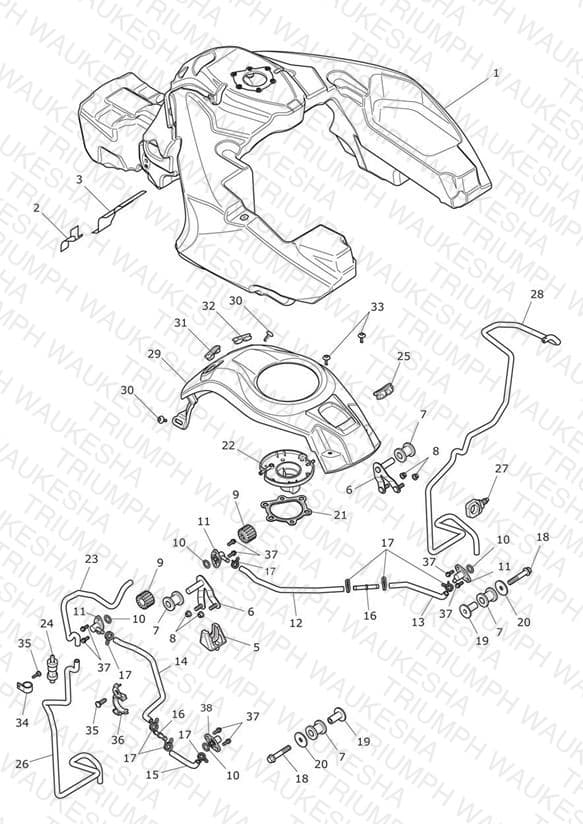

Fuel Tank & Fittings
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2401117 Fuel Tank Assy | Fuel Tank Assy US & CA Only; Includes heat pads, items 2 & 3 | 1 | $1276.27 | Available to order | 1 |
| 1 | T2401119 Fuel Tank Assy | Fuel Tank Assy All Mkts Except US & CA; Includes heat pads, items 2 & 3 | 1 | $1276.27 | Out of Stock | Notify Me |
| 2 | T2400998 Heat Pad, Fuel Tank, RH | Heat Pad, Fuel Tank, RH | 1 | $28.80 | Available to order | 1 |
| 3 | T2401087 Heat Pad, Fuel Tank, LH | Heat Pad, Fuel Tank, LH | 1 | $28.80 | Available to order | 1 |
| 5 | T2400662 Rubber, Tank Support | Rubber, Tank Support | 1 | $19.29 | Available to order | 1 |
| 6 | T2401904 Bracket, Middle Mount, Fuel Tank | Bracket, Middle Mount, Fuel Tank | 2 | $19.29 | Out of Stock | Notify Me |
| 7 | T3020038 Grommet, Dia 18 x 22 | Grommet, Dia 18 x 22 | 4 | $2.25 | Backorder — Late August 2026 | 4 |
| 8 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 4 | $0.67 | Available to order | 4 |
| 9 | T2400603 Bush, Tank Mount | Bush, Tank Mount | 2 | $2.63 | Available to order | 2 |
| 10 | T3600052 O ring | O ring | 4 | $3.24 | Available to order | 4 |
| 11 | T2400933 Connector, 90 degree, Fuel Tank | Connector, 90 degree, Fuel Tank > 589829 | 4 | $10.28 | Out of Stock | Notify Me |
| 12 | T2401208 Link Pipe, Fuel Tank, LH, Rear | Link Pipe, Fuel Tank, LH, Rear | 1 | $16.56 | Available to order | 1 |
| 13 | T2401207 Link Pipe, Fuel Tank, LH, Front | Link Pipe, Fuel Tank, LH, Front | 1 | $11.97 | Available to order | 1 |
| 14 | T2401209 Link Pipe, Fuel Tank, RH, Rear | Link Pipe, Fuel Tank, RH, Rear | 1 | $18.07 | Available to order | 1 |
| 15 | T2400934 Link Pipe, Fuel Tank, RH, Front | Link Pipe, Fuel Tank, RH, Front > 589829 | 1 | $13.18 | Available to order | 1 |
| 15 | T2401206 Link Pipe, Fuel Tank, RH, Front | Link Pipe, Fuel Tank, RH, Front 589830 > | 1 | $13.18 | Out of Stock | Notify Me |
| 16 | T2400965 Pipe, Fuel Transfer | Pipe, Fuel Transfer PART NO LONGER AVAILABLE | 2 | $18.09 | Obsolete | View Details |
| 17 | T3703073 Hose Clip, Covered End, Dia 12 | Hose Clip, Covered End, Dia 12 | 8 | $1.62 | Available to order | 8 |
| 18 | T3202307 Bolt, HHF, M8 x 50, Slv | Bolt, HHF, M8 x 50, Slv | 2 | $6.65 | Available to order | 2 |
| 19 | T3010083 Flanged Sleeve, M8 x 12.8 x 29.25 | Flanged Sleeve, M8 x 12.8 x 29.25 | 2 | $4.55 | Out of Stock | Notify Me |
| 20 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 2 | $2.74 | Available to order | 2 |
| 21 | T2400416 Seal, Fuel Filler Neck | Seal, Fuel Filler Neck | 1 | $9.31 | Available to order | 1 |
| 22 | T2400634 Filler Neck, Moulding | Filler Neck, Moulding | 1 | $19.47 | Available to order | 1 |
| 23 | T2400411 Hose, Formed, Tank Vent, Upper | Hose, Formed, Tank Vent, Upper | 1 | $8.09 | Available to order | 1 |
| 24 | T2405042 Roll Over Valve | Roll Over Valve | 1 | $40.38 | Available to order | 1 |
| 25 | T2400977 Bung, Tank Cover, Front | Bung, Tank Cover, Front | 1 | $4.36 | Available to order | 1 |
| 26 | T2400683 Hose, Formed, Tank Vent, Lower | Hose, Formed, Tank Vent, Lower | 1 | $16.56 | Available to order | 1 |
| 27 | T3700101 Clip, Cable, Dia 8-18 | Clip, Cable, Dia 8-18 | 1 | $10.28 | Available to order | 1 |
| 28 | T2400631 Hose, Fuel Tank, Drain | Hose, Fuel Tank, Drain | 1 | $8.09 | Available to order | 1 |
| 29 | T2400671 Cover Panel, Fuel Tank Assy | Cover Panel, Fuel Tank Assy | 1 | $352.07 | Available to order | 1 |
| 30 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 2 | $6.73 | Available to order | 2 |
| 31 | T2400978 Bung, Tank Cover, Rear, RH | Bung, Tank Cover, Rear, RH | 1 | $3.90 | Available to order | 1 |
| 32 | T2400979 Bung, Tank Cover, Rear, LH | Bung, Tank Cover, Rear, LH | 1 | $3.90 | Available to order | 1 |
| 33 | T3338989 Screw, But/Hd, M5 x 20, S/S | Screw, But/Hd, M5 x 20, S/S | 2 | $6.77 | Available to order | 2 |
| 34 | T3700096 P Clip, Dia 15.9, Plastic, Blk | P Clip, Dia 15.9, Plastic, Blk | 1 | $4.92 | Backorder — Late August 2026 | 1 |
| 35 | T3701098 Firtree, Dia 5 x 18 | Firtree, Dia 5 x 18 | 2 | $5.24 | Available to order | 2 |
| 36 | T2501935 Moulding, Multi-Hose, Bracket | Moulding, Multi-Hose, Bracket | 1 | $40.59 | Out of Stock | Notify Me |
| 37 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 8 | $3.24 | Available to order | 8 |
| 38 | T2400768 Connector, 60 degree, Fuel Tank | Connector, 60 degree, Fuel Tank 589830 > | 1 | $10.28 | Out of Stock | Notify Me |
