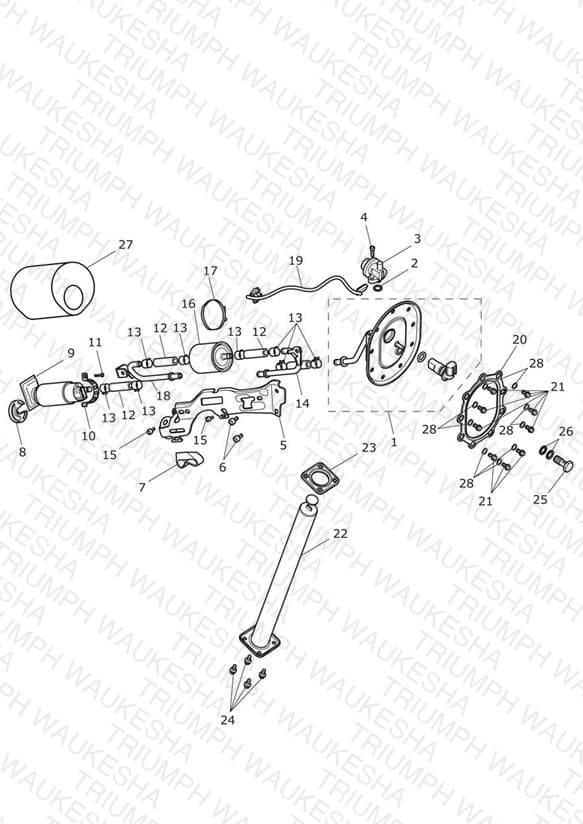

Fuel Pump & Fittings
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2400352 Fuel Pump Plate | Fuel Pump Plate US & CA | 1 | $331.84 | Out of Stock | Notify Me |
| 1 | T2400798 Fuel Pump Plate | Fuel Pump Plate 573665 > All Mkts Expt US & CA | 1 | $331.84 | Backorder — Late September 2026 | 1 |
| 2 | T3600213 O Ring, ID 9.8 x 1.9 | O Ring, ID 9.8 x 1.9 | 1 | $2.53 | Available to order | 1 |
| 3 | T1241101 Fuel Regulator, 3.5 Bar | Fuel Regulator, 3.5 Bar | 1 | $83.94 | Backorder — Early October 2026 | 1 |
| 4 | T3050342 Screw, Cap/Hd, M5 x 16, Slv | Screw, Cap/Hd, M5 x 16, Slv | 1 | $3.04 | Available to order | 1 |
| 5 | T2400268 Support Arm, Fuel Pump | Support Arm, Fuel Pump | 1 | $31.76 | Out of Stock | Notify Me |
| 6 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 1 | $1.36 | Available to order | 1 |
| 7 | T2400669 Rubber, Pump Arm Support | Rubber, Pump Arm Support | 1 | $16.48 | Available to order | 1 |
| 8 | T1247557 Cushion, Fuel Pump | Cushion, Fuel Pump | 1 | $9.61 | Available to order | 1 |
| 9 | T1247556 Fuel Pump, EFI, Square Strainer | Fuel Pump, EFI, Square Strainer | 1 | $272.16 | Backorder — Early October 2026 | 1 |
| 10 | T1240990 Strap, Retaining, Fuel Pump | Strap, Retaining, Fuel Pump | 1 | $15.12 | Available to order | 1 |
| 11 | T3050308 Screw, Cap/Hd, M4 x 8 | Screw, Cap/Hd, M4 x 8 | 1 | $5.47 | Available to order | 1 |
| 12 | T3620395 Fuel Hose, 45mm | Fuel Hose, 45mm | 4 | $10.52 | Available to order | 4 |
| 13 | T3700089 Hose Clip, Dia 12.5 | Hose Clip, Dia 12.5 | 8 | $4.27 | Available to order | 8 |
| 14 | T2400962 Pipe, Bracket, Fuel Pump | Pipe, Bracket, Fuel Pump | 1 | $15.44 | Backorder — Late September 2026 | 1 |
| 15 | T3050341 Screw, Cap/Hd, M5 x 10, Slv | Screw, Cap/Hd, M5 x 10, Slv | 2 | $4.04 | Available to order | 2 |
| 16 | T1240850 Fuel Filter | Fuel Filter | 1 | $66.81 | Available to order | 1 |
| 17 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 1 | $1.01 | Available to order | 1 |
| 18 | T2400967 Pipe, Bracket, Fuel Filter | Pipe, Bracket, Fuel Filter | 1 | $30.33 | Backorder — Late September 2026 | 1 |
| 19 | T1241097 Fly Lead, Fuel Pump | Fly Lead, Fuel Pump | 1 | $25.33 | Available to order | 1 |
| 20 | T2401137 Seal, Fuel Pump | Seal, Fuel Pump | 1 | $10.73 | Available to order | 1 |
| 21 | T3205062 Bolt, HHF, Lghtd, M6 x 12, Slv | Bolt, HHF, Lghtd, M6 x 12, Slv | 9 | $4.46 | Available to order | 9 |
| 22 | T2400248 Level Sender | Level Sender | 1 | $146.47 | Out of Stock | Notify Me |
| 23 | T2401225 Seal, Fuel Level Sender, E25 | Seal, Fuel Level Sender, E25 | 1 | $11.02 | Available to order | 1 |
| 24 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 4 | $3.45 | Available to order | 4 |
| 25 | T1210258 Bolt, Banjo, M12 | Bolt, Banjo, M12 | 1 | $12.91 | Available to order | 1 |
| 26 | T3550573 Banjo Washer, M12 | Banjo Washer, M12 | 2 | $3.07 | Available to order | 2 |
| 27 | T2401088 Baffle, Foam | Baffle, Foam | 1 | $36.75 | Obsolete | View Details |
| 28 | T3550542 Washer, Cu, OD12.5 x Id6.4 | Washer, Cu, OD12.5 x Id6.4 US & CA | 9 | $1.12 | Available to order | 9 |
