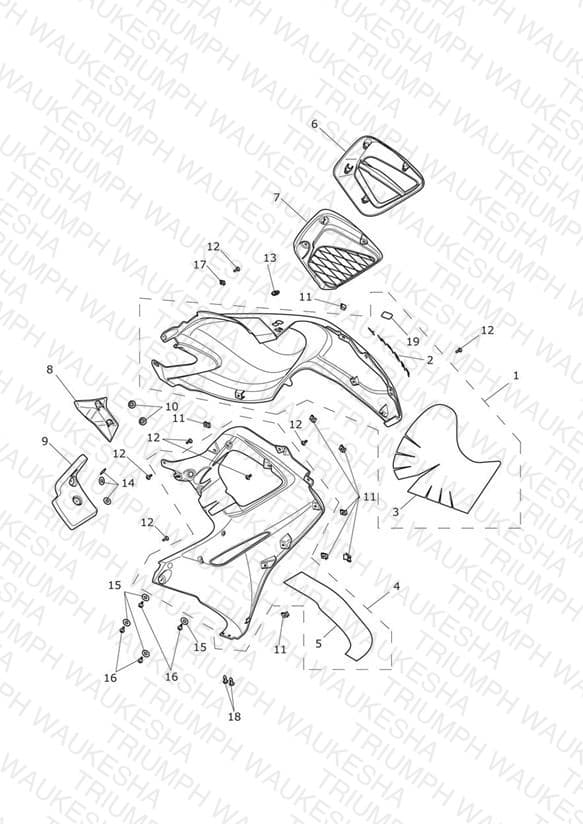

LH Side Fairings
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2302842-JI Kit, Side Panel, Upper, LH | Kit, Side Panel, Upper, LH Pacific Blue | 1 | $637.00 | Available to order | 1 |
| 1 | T2302842-MM Kit, Side Panel, Upper, LH | Kit, Side Panel, Upper, LH Lunar Silver > 657552 | 1 | $637.00 | Available to order | 1 |
| 1 | T2302842-PR Kit, Side Panel, Upper, LH | Kit, Side Panel, Upper, LH Phantom Black - 657553 > | 1 | $637.00 | Available to order | 1 |
| 2 | T2304768 Badge, Fairing, Trophy | Badge, Fairing, Trophy | 1 | $59.87 | Available to order | 1 |
| 3 | T2304764 Pad, Heatshield, Upper, LH | Pad, Heatshield, Upper, LH | 1 | $22.82 | Available to order | 1 |
| 4 | T2302853-JI Kit, Side Panel, Lower, LH | Kit, Side Panel, Lower, LH Pacific Blue | 1 | $418.05 | Available to order | 1 |
| 4 | T2302853-MM Kit, Side Panel, Lower, LH | Kit, Side Panel, Lower, LH Lunar Silver > 657552 | 1 | $350.30 | Backorder — Late August 2026 | 1 |
| 4 | T2302853-PR Kit, Side Panel, Lower, LH | Kit, Side Panel, Lower, LH Phantom Black - 657553 > | 1 | $418.05 | Available to order | 1 |
| 5 | T2304763 Pad, Heatshield, Lower, LH | Pad, Heatshield, Lower, LH | 1 | $21.57 | Available to order | 1 |
| 6 | T2303626 Kit, Finisher, LH | Kit, Finisher, LH > 583432 | 1 | $125.46 | Available to order | 1 |
| 6 | T2302876-LS Cooling Duct Finisher, LH | Cooling Duct Finisher, LH Graphite - 583433 > | 1 | $129.00 | Available to order | 1 |
| 7 | T2303195 Kit, Grille, LH | Kit, Grille, LH > 583432 | 1 | $178.72 | Backorder — Late August 2026 | 1 |
| 7 | T2308521 Grille, Radiator Duct, LH | Grille, Radiator Duct, LH 583433 > | 1 | $167.31 | Available to order | 1 |
| 8 | T2072720 Engine Infill, LH | Engine Infill, LH | 1 | $24.23 | Available to order | 1 |
| 9 | T2308563 Pad, Foam, LH, Upper | Pad, Foam, LH, Upper | 1 | $12.83 | Available to order | 1 |
| 10 | T3020135 Rubber Grommet | Rubber Grommet | 2 | $1.91 | Available to order | 2 |
| 11 | T3351052 Nut, Captive, 4-5.5mm | Nut, Captive, 4-5.5mm | 7 | $4.36 | Available to order | 7 |
| 12 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 7 | $6.73 | Available to order | 7 |
| 13 | T3351111 Captive Boss, M5 | Captive Boss, M5 | 1 | $6.94 | Available to order | 1 |
| 14 | T3552553 Washer, Rubber, 8.4 x 24.0 x 2.0 | Washer, Rubber, 8.4 x 24.0 x 2.0 | 3 | $2.00 | Available to order | 3 |
| 15 | T3551178 Washer, M5 x 15 x 1.6 | Washer, M5 x 15 x 1.6 583433 > | 4 | $0.97 | Available to order | 4 |
| 16 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 583433 > | 4 | $1.51 | Available to order | 4 |
| 17 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $3.39 | Available to order | 1 |
| 18 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 2 | $1.21 | Available to order | 2 |
| 19 | T2304831 Badge, Fairing, SE | Badge, Fairing, SE | 1 | $34.87 | Available to order | 1 |
