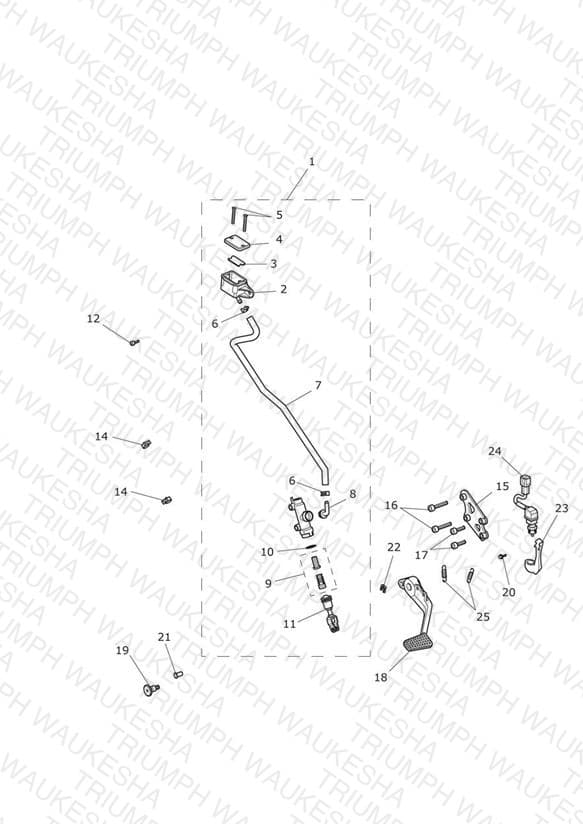

Rear Master Cylinder
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2028014 Rear Master Cylinder Assy, 15.87mm | Rear Master Cylinder Assy, 15.87mm | 1 | $286.96 | Backorder — Late August 2026 | 1 |
| 2 | T2022115 Reservoir Body, Rear M/Cyl | Reservoir Body, Rear M/Cyl | 1 | $108.34 | Backorder — Early August 2026 | 1 |
| 3 | T2022117 Reservoir Seal, Rear M/Cyl | Reservoir Seal, Rear M/Cyl | 1 | $18.34 | Available to order | 1 |
| 4 | T2022126 Reservoir Cap, Rear M/Cyl | Reservoir Cap, Rear M/Cyl | 1 | $39.63 | Out of Stock | Notify Me |
| 5 | T2022118 Reservoir Screw, Rear M/Cyl | Reservoir Screw, Rear M/Cyl | 2 | $1.79 | Available to order | 2 |
| 6 | T2023188 Reservoir Hose Clip | Reservoir Hose Clip | 2 | $3.50 | Available to order | 2 |
| 7 | T2028016 Hose, Reservoir | Hose, Reservoir | 1 | $38.56 | Backorder — Late August 2026 | 1 |
| 8 | T2023189 Connection Set | Connection Set | 1 | $26.78 | Available to order | 1 |
| 9 | T2028017 Piston Set, M/Cyl, 15.87mm | Piston Set, M/Cyl, 15.87mm | 1 | $68.42 | Out of Stock | Notify Me |
| 10 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 1 | $2.74 | Available to order | 1 |
| 11 | T2024099 Rod Assembly | Rod Assembly | 1 | $52.29 | Backorder — Mid August 2026 | 1 |
| 12 | T3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc | Screw, Cap/Hd, M6 x 16, Slv, Enc | 1 | $2.35 | Available to order | 1 |
| 14 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 2 | $3.24 | Available to order | 2 |
| 15 | T2028015 Bracket, Rear M/Cyl | Bracket, Rear M/Cyl | 1 | $57.03 | Out of Stock | Notify Me |
| 16 | T3051032 Screw, Cap/HD, M8 x 40, Slv | Screw, Cap/HD, M8 x 40, Slv | 2 | $1.51 | Available to order | 2 |
| 17 | T3050410 Screw, Cap/HD, M8 x 25, Slv, Enc | Screw, Cap/HD, M8 x 25, Slv, Enc | 2 | $6.39 | Available to order | 2 |
| 18 | T2028019 Brake Pedal Assy | Brake Pedal Assy | 1 | $138.42 | Out of Stock | Notify Me |
| 19 | T3331520 Bolt, Shld, M8 x 1.25, Slv, Enc | Bolt, Shld, M8 x 1.25, Slv, Enc | 1 | $10.63 | Available to order | 1 |
| 20 | T3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc | Bolt, RHHF, Domed, S/S, M6 x 16, Enc | 1 | $4.01 | Out of Stock | Notify Me |
| 21 | T3000301 Pin, Clevis, 8 x 13.7 | Pin, Clevis, 8 x 13.7 | 1 | $4.30 | Available to order | 1 |
| 22 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin | 1 | $6.07 | Available to order | 1 |
| 23 | T2028282 Moulding, Brake Switch Bracket | Moulding, Brake Switch Bracket | 1 | $60.87 | Available to order | 1 |
| 24 | T2020906 Dual Brake Switch | Dual Brake Switch | 1 | $43.81 | Available to order | 1 |
| 25 | T2020897 Spring, Brake Lever Return | Spring, Brake Lever Return | 2 | $2.25 | Available to order | 2 |
