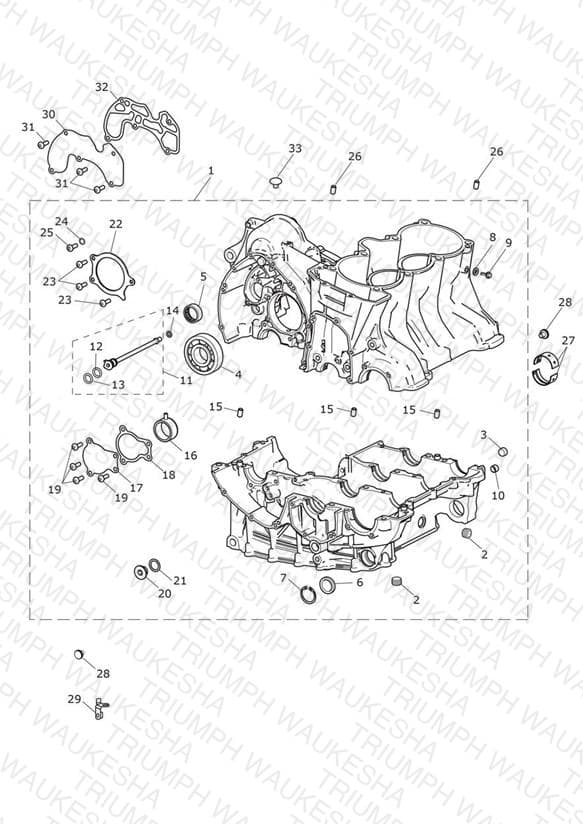

Crankcase & Fittings
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1162810 Crankcase Assembly Spares Kit | Crankcase Assembly Spares Kit | 1 | $4956.42 | Available to order | 1 |
| 2 | T3450005 Plug, NPSI 3/8 Dryseal | Plug, NPSI 3/8 Dryseal > Eng No 700636 | 2 | $6.65 | Available to order | 2 |
| 2 | T3450000 Plug, PTF-SAE Short, 3/8-18, Enc | Plug, PTF-SAE Short, 3/8-18, Enc Eng No 700637 > | 2 | $6.65 | Available to order | 2 |
| 3 | T3450091 Plug, Dia 14, Alum | Plug, Dia 14, Alum | 1 | $2.48 | Available to order | 1 |
| 4 | T3800165 Bearing, Ball, 6306R | Bearing, Ball, 6306R | 1 | $39.83 | Available to order | 1 |
| 5 | T3802512 Bearing, Needle | Bearing, Needle | 1 | $11.22 | Available to order | 1 |
| 6 | T1261049 Sight glass | Sight glass | 1 | $17.28 | Available to order | 1 |
| 7 | T3500078 Circlip, Int Dia 81.4 x 1.2 | Circlip, Int Dia 81.4 x 1.2 | 1 | $1.40 | Available to order | 1 |
| 8 | T3550542 Washer, Cu, OD12.5 x Id6.4 | Washer, Cu, OD12.5 x Id6.4 | 1 | $1.05 | Available to order | 1 |
| 9 | T3205062 Bolt, HHF, Lghtd, M6 x 12, Slv | Bolt, HHF, Lghtd, M6 x 12, Slv | 1 | $4.19 | Available to order | 1 |
| 10 | T1222207 Bush, 10 x 12 x 8 | Bush, 10 x 12 x 8 | 1 | $5.69 | Available to order | 1 |
| 11 | T1210288 Pipe, Gearbox, Oil Feed Spray | Pipe, Gearbox, Oil Feed Spray | 1 | $30.09 | Backorder — Late August 2026 | 1 |
| 12 | T3600143 O Ring, ID 9.1 x 1.6, Viton | O Ring, ID 9.1 x 1.6, Viton | 1 | $2.10 | Available to order | 1 |
| 13 | T3600252 O Ring, 10.1 Dia x 1.6 | O Ring, 10.1 Dia x 1.6 | 1 | $2.85 | Available to order | 1 |
| 14 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 1 | $5.30 | Available to order | 1 |
| 15 | T3000102 Dowel, Hollow, 10 x 14 | Dowel, Hollow, 10 x 14 | 3 | $1.79 | Available to order | 3 |
| 16 | T1180156 Sleeve Assy, Needle bearing | Sleeve Assy, Needle bearing | 1 | $63.70 | Available to order | 1 |
| 17 | T1160217 Plate, Oil Retainer | Plate, Oil Retainer | 1 | $4.30 | Available to order | 1 |
| 18 | T1160218 Gasket, Oil Retainer Plate | Gasket, Oil Retainer Plate | 1 | $3.33 | Available to order | 1 |
| 19 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 4 | $1.40 | Available to order | 4 |
| 20 | T3450119 Plug, Face Seal, M16 x 1.5 | Plug, Face Seal, M16 x 1.5 | 1 | $6.83 | Available to order | 1 |
| 21 | T3600191 O Ring, 16 x 2 | O Ring, 16 x 2 | 1 | $3.77 | Available to order | 1 |
| 22 | T1182203 Plate, Retainer, Bearing, Input | Plate, Retainer, Bearing, Input | 1 | $4.85 | Available to order | 1 |
| 24 | T3555012 Washer, 6.4 x 16 x 2 | Washer, 6.4 x 16 x 2 | 1 | $4.12 | Available to order | 1 |
| 26 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 2 | $3.90 | Available to order | 2 |
| 27 | T1161451 Main Bearing, Grooved, Red | Main Bearing, Grooved, Red Red | — | $16.33 | Available to order | 1 |
| 27 | T1161452 Main Bearing, Grooved, Blue | Main Bearing, Grooved, Blue Blue | — | $16.33 | Available to order | 1 |
| 27 | T1161450 Main Bearing, Grooved, White | Main Bearing, Grooved, White White > Eng No 728006 | — | $16.33 | Available to order | 1 |
| 27 | T1161453 Main Bearing, Grooved, Green | Main Bearing, Grooved, Green Green | — | $16.33 | Available to order | 1 |
| 28 | T3450299 Firtree, M6 | Firtree, M6 | 2 | $3.33 | Available to order | 2 |
| 29 | T2503147 Bracket, Cable Tidy | Bracket, Cable Tidy | 1 | $3.90 | Out of Stock | Notify Me |
| 30 | T1162201 Baffle Plate, Crankcase, Breather | Baffle Plate, Crankcase, Breather | 1 | $3.24 | Out of Stock | Notify Me |
| 32 | T1162202 Gasket, Breather Plate | Gasket, Breather Plate | 1 | $11.97 | Available to order | 1 |
| 33 | T3450101 Button, Firtree, M6 x 11 | Button, Firtree, M6 x 11 | 1 | $1.40 | Available to order | 1 |
