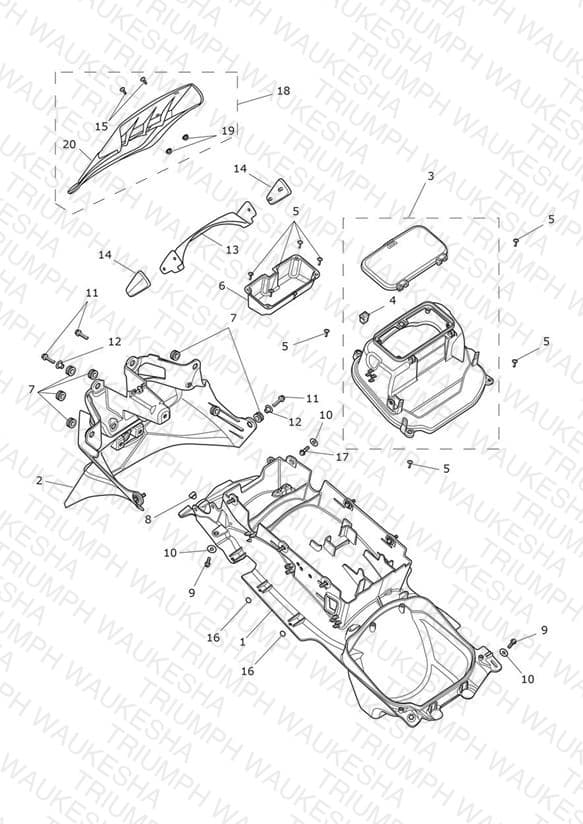

Rear Mudguard
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2304858 Rear Mudguard Moulding | Rear Mudguard Moulding | 1 | $396.11 | Out of Stock | Notify Me |
| 2 | T2304619 Mudguard Tip | Mudguard Tip | 1 | $87.47 | Available to order | 1 |
| 3 | T2304873 Audio Box Assy | Audio Box Assy | 1 | $369.67 | Available to order | 1 |
| 4 | T2309804 Push Latch | Push Latch | 1 | $31.47 | Available to order | 1 |
| 5 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 8 | $1.51 | Available to order | 8 |
| 6 | T2304925 Storage Tray | Storage Tray | 1 | $34.87 | Backorder — Early August 2026 | 1 |
| 7 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 8 | $1.91 | Available to order | 8 |
| 8 | T3021161 Rubber Foot, Dia 14.22 x 7.1 | Rubber Foot, Dia 14.22 x 7.1 | 1 | $2.17 | Available to order | 1 |
| 9 | T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 4 | $5.60 | Available to order | 4 |
| 10 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 10 | $1.21 | Available to order | 10 |
| 11 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 4 | $2.46 | Available to order | 4 |
| 12 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $5.78 | Available to order | 4 |
| 13 | T2703222 Bracket, Side Reflector, Rear | Bracket, Side Reflector, Rear | 1 | $11.88 | Available to order | 1 |
| 14 | T2700830 Reflector, Red, Tapered | Reflector, Red, Tapered All Except JP | 2 | $6.14 | Available to order | 2 |
| 14 | T2700832 Reflector, Amber, Tapered | Reflector, Amber, Tapered JP Only | 2 | $7.22 | Available to order | 2 |
| 15 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type > 616986 | 2 | $1.21 | Available to order | 2 |
| 15 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv 616987 > | 2 | $6.73 | Available to order | 2 |
| 16 | T3551139 Washer, Retaining, 3.18 x 9.50, Slv | Washer, Retaining, 3.18 x 9.50, Slv | 2 | $2.85 | Available to order | 2 |
| 17 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 6 | $4.55 | Available to order | 6 |
| 18 | T2304609 Kit, Rear Spray Guard | Kit, Rear Spray Guard See Tech News 147 > 616986 | 1 | $63.70 | Available to order | 1 |
| 19 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 616987 > | 2 | $2.25 | Available to order | 2 |
| 20 | T2304608 Rear Spray Guard | Rear Spray Guard 616987 > | 1 | $96.97 | Available to order | 1 |
