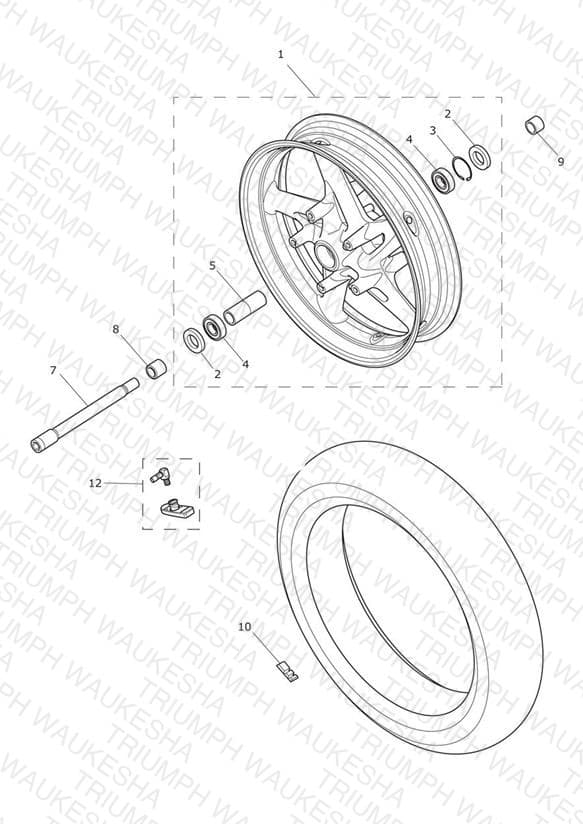

Front Wheel
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2006602 Front Wheel Assy, 3.5 x 17 | Front Wheel Assy, 3.5 x 17 | 1 | $955.06 | Available to order | 1 |
| 2 | T3600701 Oil Seal, DC 28 47 7 | Oil Seal, DC 28 47 7 | 2 | $22.52 | Backorder — Late August 2026 | 2 |
| 3 | T3500402 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $0.89 | Available to order | 1 |
| 4 | T3800703 Bearing, Ball, 20 47 14 | Bearing, Ball, 20 47 14 | 2 | $45.80 | Available to order | 2 |
| 5 | T2004201 Spacer, Wheel, 20 81 | Spacer, Wheel, 20 81 | 1 | $38.99 | Available to order | 1 |
| 7 | T2000700 Spindle, Front, M18 x 30 | Spindle, Front, M18 x 30 | 1 | $91.26 | Available to order | 1 |
| 8 | T2002105 Spacer, OD28, ID 20, LG 25 | Spacer, OD28, ID 20, LG 25 | 1 | $30.23 | Available to order | 1 |
| 9 | T2002100 Spacer, OD28, ID 20, LG20 | Spacer, OD28, ID 20, LG20 | 1 | $30.23 | Available to order | 1 |
| 10 | T2006699 Wheel Weight, 5 Gram | Wheel Weight, 5 Gram | — | $7.90 | Available to order | 1 |
| 12 | T2504861 Sensor, TPMS, 90 Deg, 434MHZ | Sensor, TPMS, 90 Deg, 434MHZ All Mkts Except HK & JP | 1 | $221.99 | Available to order | 1 |
| 12 | T2504868 Sensor, TPMS, 90 Deg, 315MHZ | Sensor, TPMS, 90 Deg, 315MHZ JP Only | 1 | $232.11 | Backorder — Late August 2026 | 1 |
