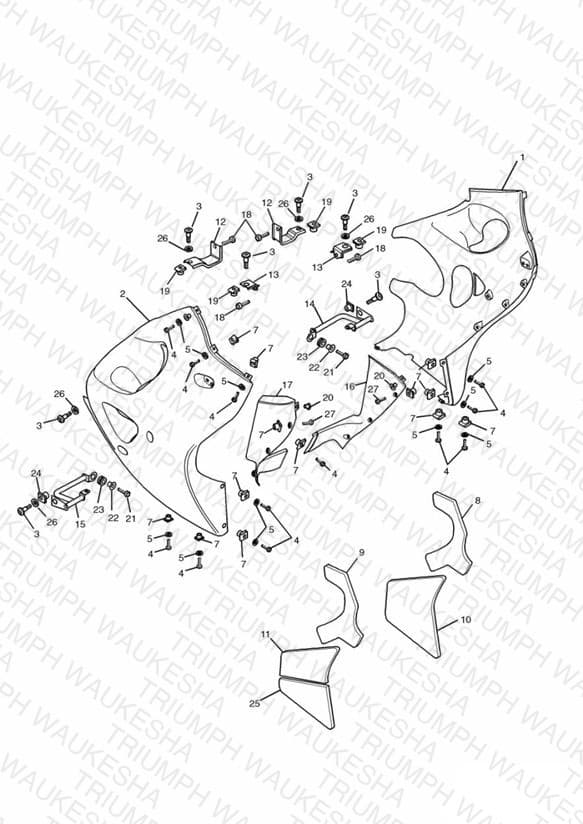

Bodywork - Lower Fairings
Parts (49)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2304620-FA Side fairing LH | Side fairing LH » 111989 Racing Yellow | 1 | $739.35 | Out of Stock | Notify Me |
| 1 | T2304620-MH Side fairing LH | Side fairing LH » 111989 Aluminium Red Dot Fade | 1 | $597.19 | Obsolete | View Details |
| 1 | T2304624-MH Side fairing LH | Side fairing LH » 111989 Aluminium Silver All Silver Bike | 1 | $748.17 | Out of Stock | Notify Me |
| 1 | T2304622-FA Side fairing LH | Side fairing LH 111990 » 115673 Racing Yellow | 1 | $597.19 | Obsolete | View Details |
| 1 | T2304622-MH Side fairing LH | Side fairing LH 111990 » 115673 Aluminium (Red) | 1 | $597.19 | Obsolete | View Details |
| 1 | T2304623-MH Side fairing LH | Side fairing LH 112530 » 116036 Aluminium (Blue) | 1 | $597.19 | Obsolete | View Details |
| 1 | T2304622-HG Side fairing LH | Side fairing LH » 115673 Roulette Green | 1 | $597.19 | Obsolete | View Details |
| 1 | T2304623-FA Side fairing LH | Side fairing LH 115674 » 161317 Racing Yellow | 1 | $597.19 | Obsolete | View Details |
| 1 | T2304623-JD Side fairing LH | Side fairing LH 115674 » 161317 Caspian Blue | 1 | $597.19 | Obsolete | View Details |
| 1 | T2304623-PG Side fairing LH | Side fairing LH 136916 » Jet Black | 1 | $597.19 | Obsolete | View Details |
| 1 | T2304623-CM Side fairing LH | Side fairing LH 161318 » Tornado Red | 1 | $627.05 | Obsolete | View Details |
| 1 | T2304621-MH Side fairing LH | Side fairing LH 161318 » Aluminium Silver | 1 | $529.59 | Obsolete | View Details |
| 2 | T2304610-FA Side fairing RH | Side fairing RH » 111989 Racing Yellow | 1 | $587.45 | Obsolete | View Details |
| 2 | T2304610-MH Side fairing RH | Side fairing RH » 111989 Aluminium Red Dot Fade | 1 | $587.45 | Obsolete | View Details |
| 2 | T2304614-MH Side fairing RH | Side fairing RH » 111989 Aluminium Silver All Silver Bike | 1 | $656.82 | Obsolete | View Details |
| 2 | T2304612-FA Side fairing RH | Side fairing RH 111990 » 115673 Racing Yellow | 1 | $587.45 | Obsolete | View Details |
| 2 | T2304612-MH Side fairing RH | Side fairing RH 111990 » 115673 Aluminium (Red) | 1 | $587.45 | Obsolete | View Details |
| 2 | T2304613-MH Side fairing RH | Side fairing RH 112530 » 116036 Aluminium (Blue) | 1 | $587.45 | Obsolete | View Details |
| 2 | T2304612-HG Side fairing RH | Side fairing RH » 115673 Roulette Green | 1 | $587.45 | Obsolete | View Details |
| 2 | T2304613-FA Side fairing RH | Side fairing RH 115674 » 161317 Racing Yellow (Decal Not Available) | 1 | $523.13 | Obsolete | View Details |
| 2 | T2304613-JD Side fairing RH | Side fairing RH 115674 » 161317 Caspian Blue | 1 | $587.45 | Obsolete | View Details |
| 2 | T2304613-PG Side fairing RH | Side fairing RH 136916 » Jet Black | 1 | $587.45 | Obsolete | View Details |
| 2 | T2304613-CM Side fairing RH | Side fairing RH 161318 » Tornado Red | 1 | $616.82 | Obsolete | View Details |
| 2 | T2304611-MH Side fairing RH | Side fairing RH 161318 » Aluminium Silver | 1 | $656.82 | Obsolete | View Details |
| 3 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv » 102797 M6 x 21mm Stainless | 8 | $5.88 | Available to order | 8 |
| 4 | T3331063 Bolt, But/Hd, M5 x 17, Slv | Bolt, But/Hd, M5 x 17, Slv | 10 | $2.17 | Available to order | 10 |
| 5 | T3550094 Washer, Nylon, 12.45x14x0.76 | Washer, Nylon, 12.45x14x0.76 | 10 | $1.10 | Available to order | 10 |
| 6 | T3350050 Wellnut, M5 | Wellnut, M5 | 2 | $6.65 | Available to order | 2 |
| 7 | T3351052 Nut, Captive, 4-5.5mm | Nut, Captive, 4-5.5mm | 14 | $4.36 | Available to order | 14 |
| 8 | T2303930 Foam pad | Foam pad LH Small | 1 | $18.34 | Available to order | 1 |
| 9 | T2303920 Foam pad | Foam pad RH Small | 1 | $14.12 | Obsolete | View Details |
| 10 | T2303910 Foam pad | Foam pad LH Large ** PART NO LONGER AVAILABLE ** | 1 | $22.25 | Obsolete | View Details |
| 11 | T2303900 Foam pad | Foam pad RH Large | 1 | $15.87 | Obsolete | View Details |
| 12 | T2303780 Support bracket | Support bracket Lower | 1 | $14.21 | Obsolete | View Details |
| 13 | T2303770 Support bracket | Support bracket Upper | 1 | $14.21 | Obsolete | View Details |
| 14 | T2303801 BRKT,MNTNG,FAR & RAD,LH | BRKT,MNTNG,FAR & RAD,LH | 1 | $47.43 | Obsolete | View Details |
| 15 | T2303791 BRKT,MNTNG,FAR & RAD,RH | BRKT,MNTNG,FAR & RAD,RH | 1 | $43.24 | Obsolete | View Details |
| 16 | T2303690 Infill panel lh | Infill panel lh | 1 | $106.47 | Out of Stock | Notify Me |
| 17 | T2303680 Infill panel rh | Infill panel rh | 1 | $89.63 | Obsolete | View Details |
| 18 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 4 | $3.50 | Available to order | 4 |
| 19 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 4 | $4.92 | Backorder — Early August 2026 | 4 |
| 20 | T3700120 Rivet, Plastic | Rivet, Plastic | 6 | $0.97 | Available to order | 6 |
| 21 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv | 2 | $2.48 | Available to order | 2 |
| 22 | T3010014 Flanged Sleeve, M6, Black | Flanged Sleeve, M6, Black | 2 | $1.51 | Available to order | 2 |
| 23 | T3020031 Grommet; 11.8 x 2.5 x 10 | Grommet; 11.8 x 2.5 x 10 | 2 | $3.17 | Available to order | 2 |
| 24 | T3351021 Nut, Captive, M6, Slv | Nut, Captive, M6, Slv | 2 | $1.79 | Available to order | 2 |
| 25 | T2303940 Foam pad | Foam pad RH lower | 1 | $16.70 | Obsolete | View Details |
| 26 | T3550098 Washer, Nylon, 11.2 x 18 x 1.2 | Washer, Nylon, 11.2 x 18 x 1.2 102797 » | 8 | $1.27 | Available to order | 8 |
| 27 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv 130447 » | 6 | $6.73 | Available to order | 6 |
