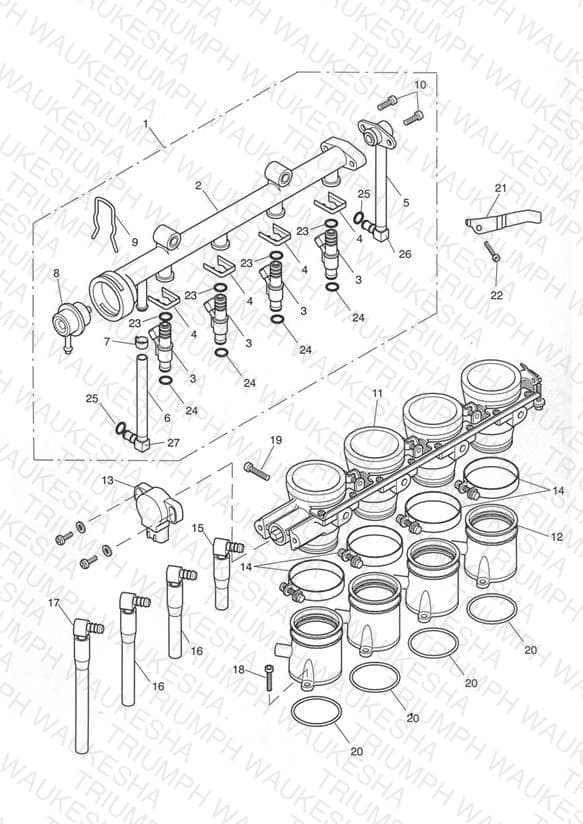

Throttle/Injector and Fuel Rail
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1240799 Fuel rail | Fuel rail | 1 | $1110.60 | Obsolete | View Details |
| 2 | T1240812 Fuel rail | Fuel rail | 1 | $198.83 | Obsolete | View Details |
| 3 | T1240890 Fuel injector | Fuel injector | 4 | $197.09 | Obsolete | View Details |
| 4 | T1240821 Clip, Fuel Injector | Clip, Fuel Injector | 4 | $2.06 | Obsolete | View Details |
| 5 | T1240851 Fuel line hose | Fuel line hose Feed | 1 | $108.34 | Obsolete | View Details |
| 6 | T1240852 Fuel line hose | Fuel line hose Return | 1 | $134.99 | Backorder — Late August 2026 | 1 |
| 7 | T3700261 CLIP, HOSE | CLIP, HOSE | 1 | $4.12 | Available to order | 1 |
| 8 | T1240856 Regulator, Fuel Pressure | Regulator, Fuel Pressure **PART NO LONGER AVAILABLE** | 1 | $75.03 | Obsolete | View Details |
| 9 | T1240832 Spring clip | Spring clip | 1 | $3.86 | Obsolete | View Details |
| 10 | T1240817 Screw | Screw | 2 | $2.18 | Obsolete | View Details |
| 11 | T1240752 Throttle Body Assy, 4 Cyl | Throttle Body Assy, 4 Cyl | 1 | $2756.43 | Obsolete | View Details |
| 12 | T1240774 Rubber, Throttle Body To Cyl HD | Rubber, Throttle Body To Cyl HD | 4 | $25.96 | Available to order | 4 |
| 13 | T1290515 Sensor, Throttle Position | Sensor, Throttle Position | 1 | $176.81 | Available to order | 1 |
| 14 | T3700073 Clip, Throttle Body to Rubber | Clip, Throttle Body to Rubber | 4 | $12.04 | Backorder — Late August 2026 | 4 |
| 15 | T1242515 Pipe, Air Bypass, 170mm | Pipe, Air Bypass, 170mm 170mm | 1 | $24.51 | Available to order | 1 |
| 16 | T1242516 Pipe, Air Bypass, 240mm | Pipe, Air Bypass, 240mm 240mm | 2 | $24.51 | Available to order | 2 |
| 17 | T1242514 Pipe, Air Bypass, 300mm | Pipe, Air Bypass, 300mm 300mm | 1 | $24.51 | Available to order | 1 |
| 18 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 8 | $2.63 | Available to order | 8 |
| 19 | T3330154 Screw, Torx, PH, M6 x 30 | Screw, Torx, PH, M6 x 30 M6 x 30mm | 2 | $2.90 | Obsolete | View Details |
| 20 | T3600058 O ring | O ring » ENG NO 109825 | 4 | $11.12 | Available to order | 4 |
| 20 | T3600064 O ring | O ring ENG NO 109826 » | 4 | $8.33 | Obsolete | View Details |
| 21 | T1240093 Bracket | Bracket FR Only | 1 | $8.85 | Obsolete | View Details |
| 22 | T3330696 Screw, But/Hd, M5 X 16, Slv | Screw, But/Hd, M5 X 16, Slv FR Only | 1 | $5.69 | Available to order | 1 |
| 23 | T1245016 O Ring, Injector, Upper | O Ring, Injector, Upper Upper | 4 | $5.24 | Available to order | 4 |
| 24 | T1240355 Lower O Ring, Injector | Lower O Ring, Injector Lower | 4 | $2.95 | Available to order | 4 |
| 25 | T1240181 O ring | O ring | 2 | $6.07 | Available to order | 2 |
| 26 | T1241160 Kit, CPC, 8mm, Red | Kit, CPC, 8mm, Red | 1 | $17.30 | Obsolete | View Details |
| 27 | T1241175 Kit, CPC, 10mm, White | Kit, CPC, 10mm, White | 1 | $27.68 | Backorder — Late August 2026 | 1 |
| 28 | T1241467 Kit Connector, Fuel, 8.0, Red | Kit Connector, Fuel, 8.0, Red Not Illustrated | 1 | $38.22 | Available to order | 1 |
| 28 | T1241473 Fuel Connector Kit, 10.0mm | Fuel Connector Kit, 10.0mm Not Illustrated | 1 | $38.22 | Available to order | 1 |
