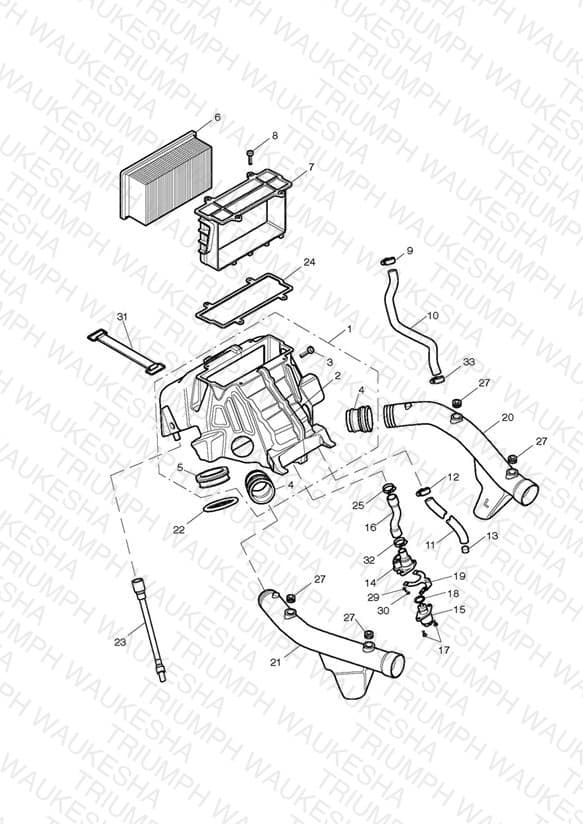

Airbox
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2201404 Airbox kit | Airbox kit » 143393 | 1 | $194.46 | Obsolete | View Details |
| 1 | T2201405 Airbox assembly | Airbox assembly 143394 » | 1 | $210.82 | Obsolete | View Details |
| 2 | T2204014 Seal | Seal | 1 | $20.00 | Obsolete | View Details |
| 3 | T3330129 Screw | Screw M5 x 15mm Black | 12 | $0.45 | Obsolete | View Details |
| 4 | T2204007 Hose intake | Hose intake | 2 | $37.00 | Obsolete | View Details |
| 5 | T2201490 Intake trumpet | Intake trumpet | 4 | $33.43 | Obsolete | View Details |
| 6 | T2204001 Filter, Airbox | Filter, Airbox | 1 | $42.75 | Available to order | 1 |
| 7 | T2204002 Filter housing | Filter housing | 1 | $27.90 | Obsolete | View Details |
| 8 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 4 | $1.04 | Available to order | 4 |
| 9 | T3700066 Hose Clip, 22.7-27.5mm | Hose Clip, 22.7-27.5mm » 165865 | 1 | $17.45 | Available to order | 1 |
| 9 | T3700081 Clip hose | Clip hose 165866 » | 1 | $1.73 | Available to order | 1 |
| 10 | T2204004 Pipe breather | Pipe breather » 143393 | 1 | $16.07 | Obsolete | View Details |
| 10 | T2204003 Pipe breather | Pipe breather 143394 » » 165865 | 1 | $20.51 | Obsolete | View Details |
| 10 | T2204021 Breather pipe | Breather pipe 165866 » | 1 | $22.37 | Available to order | 1 |
| 11 | T3620239 Pipe, Airbox Drain | Pipe, Airbox Drain | 1 | $12.00 | Available to order | 1 |
| 12 | T3700030 Clip pipe | Clip pipe | 1 | $1.04 | Available to order | 1 |
| 13 | T3450145 End Tip | End Tip | 1 | $1.29 | Available to order | 1 |
| 14 | T1241062 Housing | Housing | 1 | $55.92 | Obsolete | View Details |
| 15 | T1240888 Stepper motor | Stepper motor ** PART NO LONGER AVAILABLE ** | 1 | $151.64 | Obsolete | View Details |
| 16 | T2204005 Pipe by-pass | Pipe by-pass » 165865 | 1 | $22.67 | Out of Stock | Notify Me |
| 16 | T2204023 Pipe by-pass | Pipe by-pass 165866 » | 1 | $16.63 | Obsolete | View Details |
| 17 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $1.04 | Available to order | 2 |
| 18 | T3600037 O ring | O ring | 1 | $1.61 | Available to order | 1 |
| 19 | T2204009 Bracket | Bracket | 1 | $4.26 | Obsolete | View Details |
| 20 | T2204013 Air inlet | Air inlet | 1 | $52.42 | Obsolete | View Details |
| 21 | T2204012 Air inlet | Air inlet | 1 | $42.55 | Obsolete | View Details |
| 22 | T2201295 Spring sealing | Spring sealing | 4 | $1.91 | Out of Stock | Notify Me |
| 23 | T1242523 Tube assembly | Tube assembly | 1 | $19.21 | Obsolete | View Details |
| 24 | T2500259 Relay, Grommet | Relay, Grommet | 4 | $4.38 | Available to order | 4 |
| 24 | T2204020 Gasket | Gasket | 1 | $15.67 | Obsolete | View Details |
| 25 | T3700051 Hose Clip, Dia 18.1-20 x 8mm | Hose Clip, Dia 18.1-20 x 8mm 18.1-20mm >165866 | 1 | $2.40 | Available to order | 1 |
| 27 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $3.04 | Available to order | 4 |
| 29 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.50 | Available to order | 1 |
| 30 | T3555017 Washer, 6.5 x 12.5 x 0.8 | Washer, 6.5 x 12.5 x 0.8 | 1 | $3.23 | Available to order | 1 |
| 31 | T2501740 Battery Strap | Battery Strap | 1 | $10.61 | Available to order | 1 |
| 32 | T3700171 Hose Clip, Dia 14.0 | Hose Clip, Dia 14.0 | 1 | $7.38 | Available to order | 1 |
