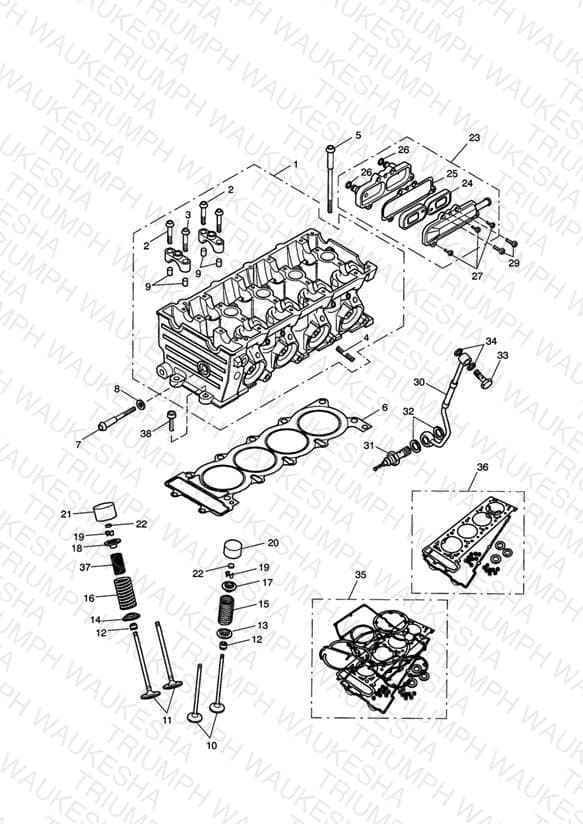

Cylinder Head and Valves
Parts (89)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1150910 Cylinder head | Cylinder head | 1 | $2473.24 | Obsolete | View Details |
| 1 | T1150912 Cylinder head | Cylinder head US Cal - All engine numbers DE - Engine No 148033 » | 1 | $2473.24 | Obsolete | View Details |
| 2 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv | 18 | $3.70 | Available to order | 18 |
| 3 | T3330125 Screw, Torx | Screw, Torx M6 x 60mm | 2 | $1.65 | Obsolete | View Details |
| 4 | T3100015 Stud, Shld, M8 x 36.5, Slv, Enc | Stud, Shld, M8 x 36.5, Slv, Enc | 8 | $2.74 | Available to order | 8 |
| 5 | T1160890 Bolt cylinder head | Bolt cylinder head | 10 | $5.14 | Available to order | 10 |
| 6 | T1150920 Cylinder head gasket | Cylinder head gasket | 1 | $102.64 | Available to order | 1 |
| 7 | T3330571 Screw | Screw M6 x 45mm | 1 | $16.74 | Obsolete | View Details |
| 8 | T1260309 Seal, Cam Cover, Screw, Twin Lip | Seal, Cam Cover, Screw, Twin Lip | 1 | $5.82 | Available to order | 1 |
| 9 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 20 | $3.90 | Available to order | 20 |
| 10 | T1130025 Valve exhaust | Valve exhaust | 8 | $66.52 | Backorder — Late August 2026 | 8 |
| 11 | T1130024 Valve inlet | Valve inlet | 8 | $33.36 | Obsolete | View Details |
| 12 | T1130400 Seal, 4mm Stem | Seal, 4mm Stem | 16 | $6.94 | Available to order | 16 |
| 13 | T1130079 Thrust washer | Thrust washer Exhaust | 8 | $9.43 | Obsolete | View Details |
| 14 | T1130077 Thrust washer | Thrust washer Inlet | 8 | $9.43 | Obsolete | View Details |
| 15 | T1130832 Spring | Spring Exhaust | 8 | $8.80 | Obsolete | View Details |
| 16 | T1130831 Spring outer | Spring outer Inlet | 8 | $7.87 | Obsolete | View Details |
| 17 | T1130044 Retainer | Retainer | 8 | $9.88 | Obsolete | View Details |
| 18 | T1130042 Spring retainer | Spring retainer | 8 | $9.88 | Obsolete | View Details |
| 19 | T1130031 Collet, Valve, 4mm Stem, Thin | Collet, Valve, 4mm Stem, Thin | 32 | $1.18 | Unavailable | View Details |
| 20 | T1130019 Tappet | Tappet 25mm | 8 | $31.46 | Obsolete | View Details |
| 21 | T1130026 Bucket, Tappet, Dia 28.5mm | Bucket, Tappet, Dia 28.5mm | 8 | $37.35 | Available to order | 8 |
| 22 | T1130540 Shim, 1.700mm | Shim, 1.700mm | — | $10.18 | Available to order | 1 |
| 22 | T1130542 Shim, 1.725mm | Shim, 1.725mm | — | $10.18 | Available to order | 1 |
| 22 | T1130544 Shim, 1.750mm | Shim, 1.750mm | — | $10.18 | Available to order | 1 |
| 22 | T1130546 Shim, 1.775mm | Shim, 1.775mm | — | $10.18 | Available to order | 1 |
| 22 | T1130548 Shim, 1.800mm | Shim, 1.800mm | — | $10.18 | Available to order | 1 |
| 22 | T1130550 Shim, 1.825mm | Shim, 1.825mm | — | $10.18 | Available to order | 1 |
| 22 | T1130552 Shim, 1.850mm | Shim, 1.850mm | — | $10.18 | Available to order | 1 |
| 22 | T1130554 Shim, 1.875mm | Shim, 1.875mm | — | $10.18 | Available to order | 1 |
| 22 | T1130556 Shim, 1.900mm | Shim, 1.900mm | — | $10.18 | Available to order | 1 |
| 22 | T1130558 Shim, 1.925mm | Shim, 1.925mm | — | $10.18 | Available to order | 1 |
| 22 | T1130560 Shim, 1.950mm | Shim, 1.950mm | — | $10.18 | Available to order | 1 |
| 22 | T1130562 Shim, 1.975mm | Shim, 1.975mm | — | $10.18 | Available to order | 1 |
| 22 | T1130564 Shim, 2.000mm | Shim, 2.000mm | — | $10.18 | Available to order | 1 |
| 22 | T1130566 Shim, 2.025mm | Shim, 2.025mm | — | $10.18 | Available to order | 1 |
| 22 | T1130568 Shim, 2.050mm | Shim, 2.050mm | — | $10.18 | Available to order | 1 |
| 22 | T1130570 Shim, 2.075mm | Shim, 2.075mm | — | $10.18 | Available to order | 1 |
| 22 | T1130572 Shim, 2.100mm | Shim, 2.100mm | — | $10.18 | Available to order | 1 |
| 22 | T1130574 Shim, 2.125mm | Shim, 2.125mm | — | $10.18 | Available to order | 1 |
| 22 | T1130576 Shim, 2.150mm | Shim, 2.150mm | — | $10.18 | Available to order | 1 |
| 22 | T1130578 Shim, 2.175mm | Shim, 2.175mm | — | $10.18 | Available to order | 1 |
| 22 | T1130580 Shim, 2.200mm | Shim, 2.200mm | — | $10.18 | Available to order | 1 |
| 22 | T1130582 Shim, 2.225mm | Shim, 2.225mm | — | $10.18 | Available to order | 1 |
| 22 | T1130584 Shim, 2.250mm | Shim, 2.250mm | — | $10.18 | Available to order | 1 |
| 22 | T1130586 Shim, 2.275mm | Shim, 2.275mm | — | $10.18 | Available to order | 1 |
| 22 | T1130588 Shim, 2.300mm | Shim, 2.300mm | — | $10.18 | Available to order | 1 |
| 22 | T1130590 Shim, 2.325mm | Shim, 2.325mm | — | $10.18 | Available to order | 1 |
| 22 | T1130592 Shim, 2.350mm | Shim, 2.350mm | — | $10.18 | Available to order | 1 |
| 22 | T1130594 Shim, 2.375mm | Shim, 2.375mm | — | $10.18 | Available to order | 1 |
| 22 | T1130596 Shim, 2.400mm | Shim, 2.400mm | — | $10.18 | Available to order | 1 |
| 22 | T1130598 Shim, 2.425mm | Shim, 2.425mm | — | $10.18 | Available to order | 1 |
| 22 | T1130600 Shim, 2.450mm | Shim, 2.450mm | — | $10.18 | Available to order | 1 |
| 22 | T1130602 Shim, 2.475mm | Shim, 2.475mm | — | $10.18 | Available to order | 1 |
| 22 | T1130604 Shim, 2.500mm | Shim, 2.500mm | — | $10.18 | Available to order | 1 |
| 22 | T1130605 Shim, 2.525mm | Shim, 2.525mm | — | $10.18 | Available to order | 1 |
| 22 | T1130606 Shim, 2.550mm | Shim, 2.550mm | — | $10.18 | Available to order | 1 |
| 22 | T1130607 Shim, 2.575mm | Shim, 2.575mm | — | $10.18 | Available to order | 1 |
| 22 | T1130608 Shim, 2.600mm | Shim, 2.600mm | — | $10.18 | Available to order | 1 |
| 22 | T1130609 Shim, 2.625mm | Shim, 2.625mm | — | $10.18 | Available to order | 1 |
| 22 | T1130610 Shim, 2.650mm | Shim, 2.650mm | — | $10.18 | Available to order | 1 |
| 22 | T1130611 Shim, 2.675mm | Shim, 2.675mm | — | $10.18 | Available to order | 1 |
| 22 | T1130612 Shim, 2.700mm | Shim, 2.700mm | — | $10.18 | Available to order | 1 |
| 22 | T1130613 Shim, 2.725mm | Shim, 2.725mm | — | $10.18 | Available to order | 1 |
| 22 | T1130614 Shim, 2.750mm | Shim, 2.750mm | — | $10.18 | Available to order | 1 |
| 22 | T1130615 Shim, 2.775mm | Shim, 2.775mm | — | $10.18 | Available to order | 1 |
| 22 | T1130616 Shim, 2.800mm | Shim, 2.800mm | — | $10.18 | Available to order | 1 |
| 22 | T1130617 Shim, 2.825mm | Shim, 2.825mm | — | $10.18 | Available to order | 1 |
| 22 | T1130618 Shim, 2.850mm | Shim, 2.850mm | — | $10.18 | Available to order | 1 |
| 22 | T1130619 Shim, 2.875mm | Shim, 2.875mm | — | $10.18 | Available to order | 1 |
| 22 | T1130621 Shim, 2.900mm | Shim, 2.900mm | — | $10.18 | Available to order | 1 |
| 22 | T1130622 Shim, 2.925mm | Shim, 2.925mm | — | $10.18 | Available to order | 1 |
| 22 | T1130623 Shim, 2.950mm | Shim, 2.950mm | — | $10.18 | Available to order | 1 |
| 22 | T1130624 Shim, 2.975mm | Shim, 2.975mm | — | $10.18 | Available to order | 1 |
| 22 | T1130625 Shim, 3.000mm | Shim, 3.000mm | — | $10.18 | Available to order | 1 |
| 23 | T1250140 Valve assembly | Valve assembly US Cal - All engine numbers DE - Engine No 148033 » | 2 | $58.24 | Obsolete | View Details |
| 24 | T1250141 Valve | Valve US Cal - All engine numbers DE - Engine No 148033 » | 2 | $41.80 | Obsolete | View Details |
| 25 | T1250142 Valve seal | Valve seal US Cal - All engine numbers DE - Engine No 148033 » | 1 | $1.50 | Obsolete | View Details |
| 26 | T1250143 O ring | O ring US Cal - All engine numbers DE - Engine No 148033 » | 2 | $1.50 | Obsolete | View Details |
| 27 | T1250144 Screw | Screw US Cal - All engine numbers DE - Engine No 148033 » | 3 | $2.63 | Obsolete | View Details |
| 29 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc US Cal - All engine numbers DE - Engine No 148033 » | 4 | $2.10 | Available to order | 4 |
| 30 | T1210534 Oil pipe assy | Oil pipe assy | 1 | $92.07 | Obsolete | View Details |
| 31 | T1210527 Switch oil pressure | Switch oil pressure * Part No Longer Available * | 1 | $54.97 | Obsolete | View Details |
| 32 | T3550547 Washer, Cu, OD19 x ID14.2 | Washer, Cu, OD19 x ID14.2 | 2 | $4.32 | Available to order | 2 |
| 33 | T1210240 Banjo Bolt, M10 x28 | Banjo Bolt, M10 x28 | 1 | $13.18 | Available to order | 1 |
| 34 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 2 | $0.89 | Available to order | 2 |
| 35 | T3990081 Gasket kit full | Gasket kit full | 1 | $478.58 | Obsolete | View Details |
| 36 | T3990086 Gasket kit cylinder head | Gasket kit cylinder head | 1 | $346.18 | Available to order | 1 |
| 37 | T1130830 Spring inner | Spring inner Inlet | 8 | $7.87 | Obsolete | View Details |
