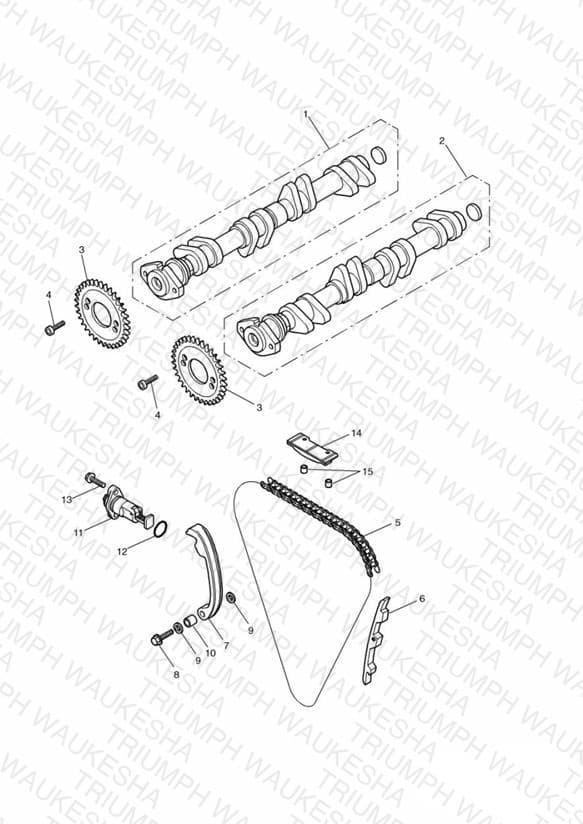

Loading schematic...
Camshaft and Drive
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1140718 Camshaft assembly | Camshaft assembly » ENG NO 115673 Inlet | 1 | $382.84 | Obsolete | View Details |
| 1 | T1141128 Camshaft assembly | Camshaft assembly ENG NO 115674 » Inlet 4 Cyl | 1 | $369.50 | Obsolete | View Details |
| 2 | T1140738 Camshaft assembly | Camshaft assembly » ENG NO 115673 Exhaust | 1 | $382.84 | Obsolete | View Details |
| 2 | T1141138 Camshaft assembly | Camshaft assembly ENG NO 115674 » Exhaust 4 Cyl | 1 | $382.89 | Obsolete | View Details |
| 3 | T1140745 Sprocket | Sprocket 34T | 2 | $70.24 | Obsolete | View Details |
| 4 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 4 | $1.40 | Available to order | 4 |
| 5 | T1140765 Chain, Cam, 126 Links | Chain, Cam, 126 Links | 1 | $161.61 | Available to order | 1 |
| 6 | T1140780 Guide | Guide Front | 1 | $87.13 | Obsolete | View Details |
| 7 | T1140790 Guide | Guide Rear | 1 | $85.41 | Obsolete | View Details |
| 8 | T3200208 Bolt | Bolt M8 x 35mm | 1 | $3.86 | Obsolete | View Details |
| 9 | T3550276 Washer, M8, Hardened | Washer, M8, Hardened | 2 | $0.97 | Backorder — Late September 2026 | 2 |
| 10 | T1140120 Tube | Tube | 1 | $18.76 | Obsolete | View Details |
| 11 | T1140755 Tensioner | Tensioner | 1 | $107.27 | Obsolete | View Details |
| 12 | T3600195 O Ring, ID, 19 x 2.0, 70 Shore | O Ring, ID, 19 x 2.0, 70 Shore | 1 | $1.35 | Available to order | 1 |
| 13 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 14 | T1140770 Guide | Guide Upper | 1 | $27.27 | Obsolete | View Details |
| 15 | T1150930 Spacer | Spacer | 2 | $1.22 | Obsolete | View Details |
